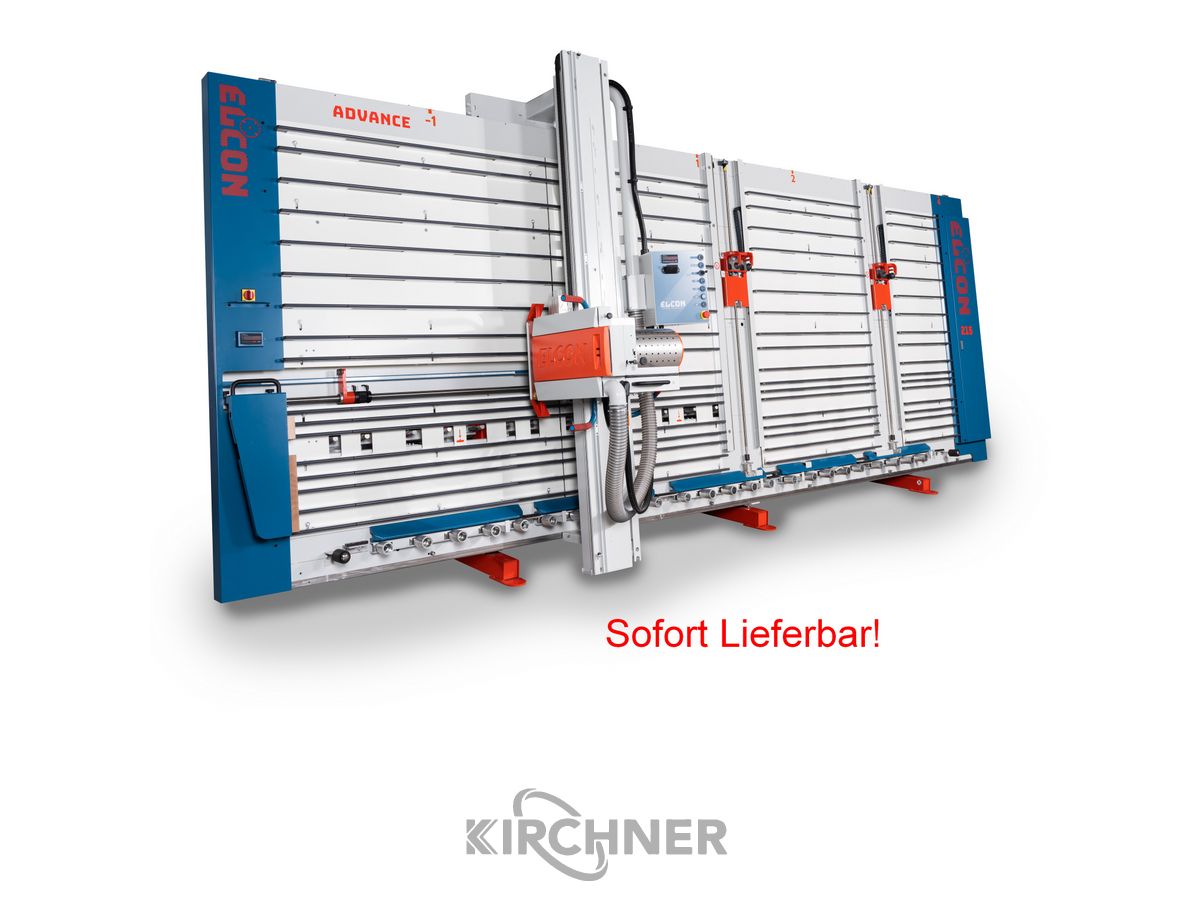

Description
Technical description:
Cutting height: vertical: 0 - 2,150 mm, horizontal: 80 - 2,050 mm
Cutting length: 5,300 mm
Cutting depth: 80 mm (with clamps: 55 mm)
Saw blade: Diameter 303 mm, bore 30 mm, Z=60 hollow roof tooth
Saw blade rotation: 5,000 rpm.
Motor: 4 kW (S 6)
Required air pressure: 6 bar
Dimension readout for horizontal saw cuts:
- via scale from 0 - 2,070 mm
- via strip cutting stop from 75 - 500 mm
Dimension readout for vertical saw cuts:
- via scale from 0 - 1,300 mm
Suction nozzle: 1 x 100 mm 1 x 120 mm
Equipment features:
- ADVANCE clamping system, consisting of: 2 pneumatic clamping tongs,
which are motorised on vertical axes on a ball screw from above.
move downwards. The tongs carry plates with a weight of
max. 150 kg
- Torsion-free, free-standing machine frame
- Round rod guide, vertical and horizontal
- Pneumatic slatted frame
- Finely adjustable folding fence with fence extension
- Fine adjustment for horizontal saw cuts via handwheel
- Strip cutting stop
- Manual programming rail with 5 sliding blocks
- Pneumatic immersion of the sawing unit
- 25 Material support rollers
- 1 feed and 1 discharge roller
- Pneumatic workpiece clamping device between the support rollers
- 3 centre support elements, pneumatically folding out
- Pneumatic saw head locking
- Control panel with template holder
- Switch unit on the saw unit: start button, stop button
- Tool cabinet
- Illumination Scale for vertical saw cuts
Order number: ELCO0001/S013
Scope of delivery:
Equipment package I, consisting of
- Digital display for the folding stop
- Digital display for the sawing unit with incremental function
- Pneumatically swivelling saw unit
- Scoring system with controlled counter-air nozzle, numerical display
for scoring and groove depth adjustment and activation light
Order number: ELCO0191/S085
