Description
- NEW -
GENERAL FEATURES

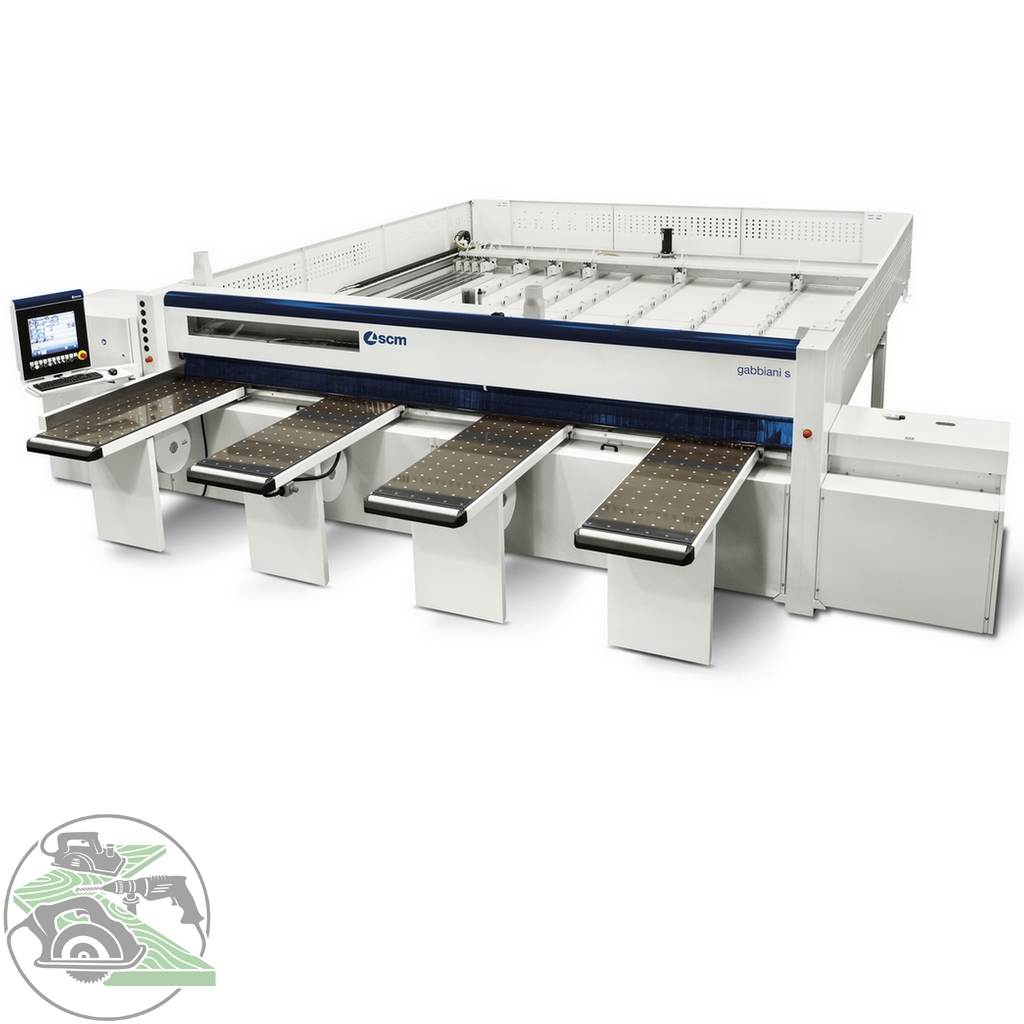

Automatically controlled high-performance panel dividing saw with PC/PLC
Control, for dividing panels and panel packs made of solid wood, MDF, chipboard, plywood and similar materials.
Machine frame and worktable
- Machine frame designed as a tubular steel construction
- Work table made of rib-reinforced steel with bakelite coating
- Longitudinal stop on the left-hand side
Saw carriage
made of steel, consisting of:
- one motor for the main saw blade and one motor for the
Scoring saw blade
- Vertical stroke of the saw blade on linear recirculating ball bearing guides
and shoes
- Castors made of hardened and ground steel
- Balanced mass distribution to ensure the best cutting quality
- Running direction against the longitudinal stop
- Saw carriage drive via rack and pinion
- Pneumatic saw blade tensioning

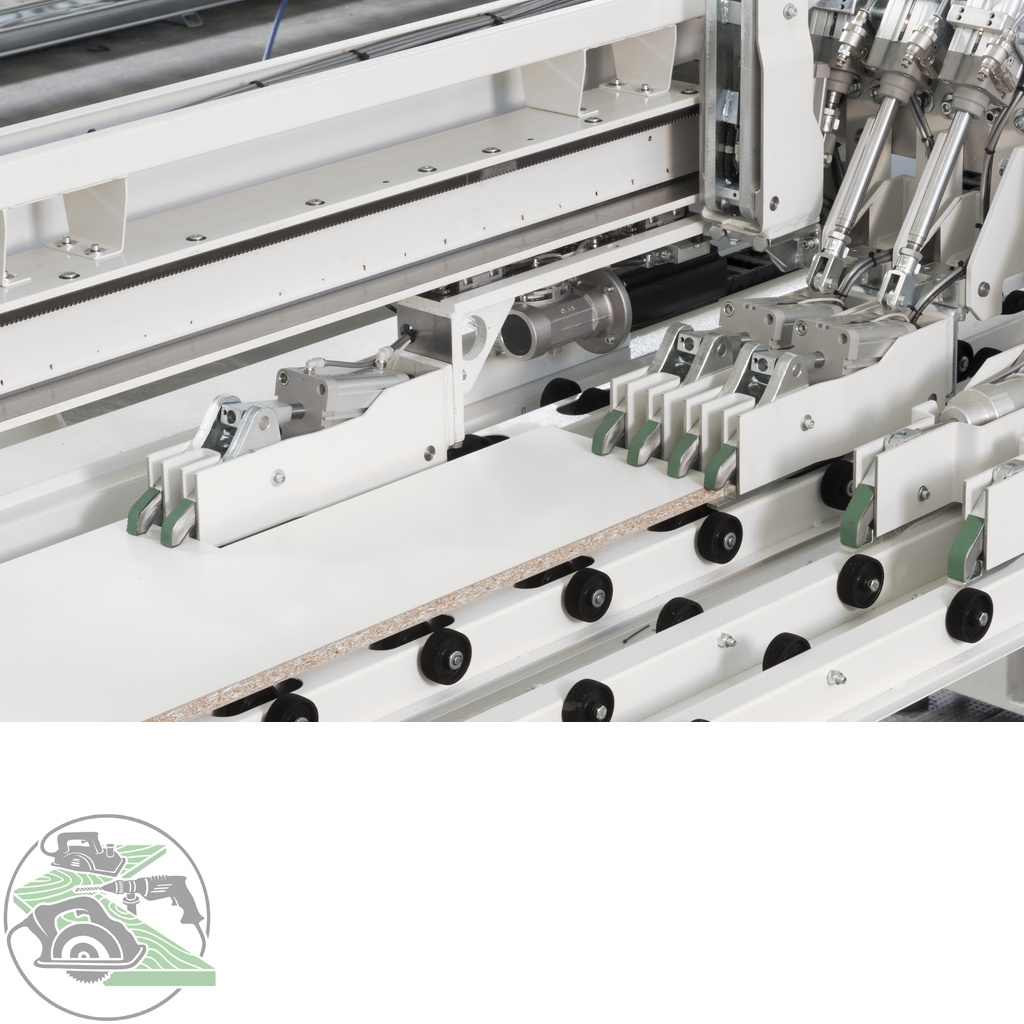

Pressure bar
- Pressure beam with even pressure on the workpiece over the
Entire cutting length with recesses to prevent collisions
with the collets
