Description

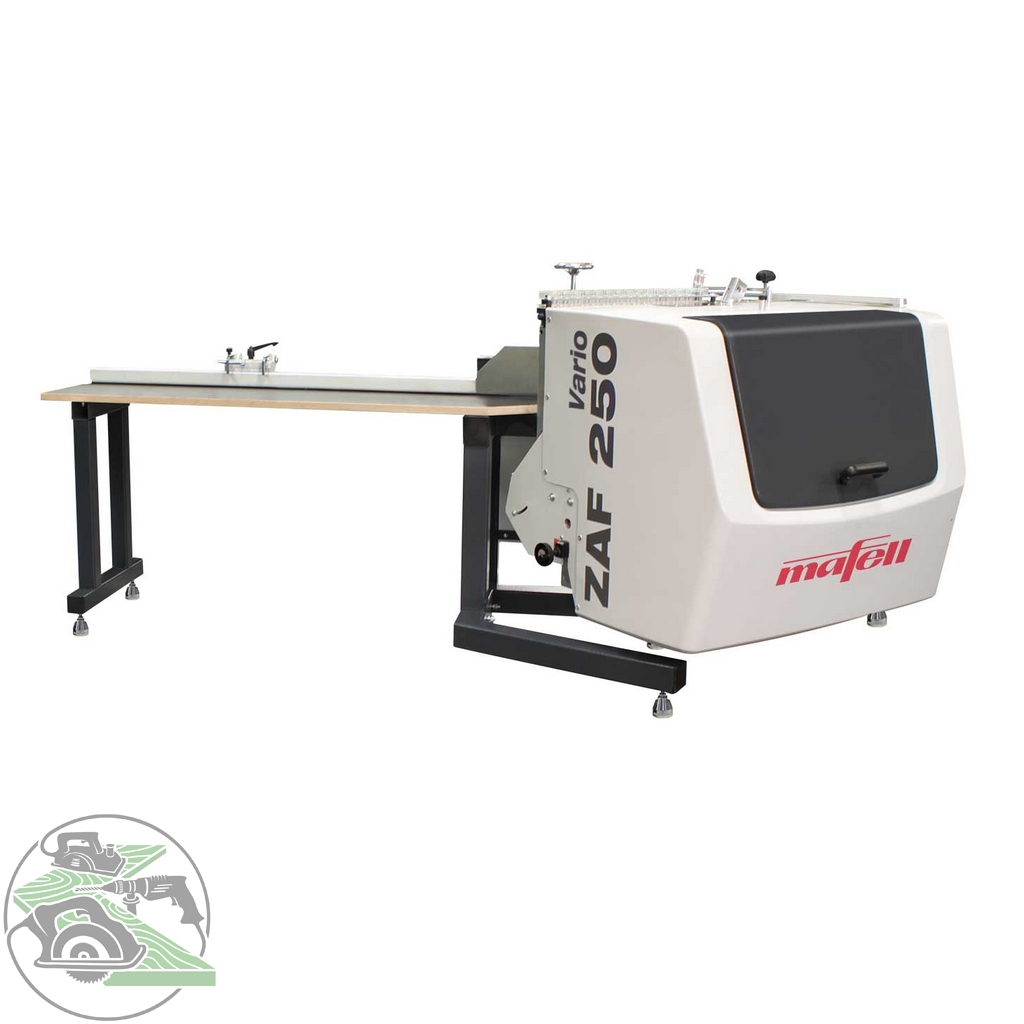

With the ZAF 250 Vario, all tenon moulds can be produced quickly and precisely, efficiently and accurately.
Straight tenons, angled tenons, corner and ridge blades with the compact ZAF 250 you are on the safe side
Page.

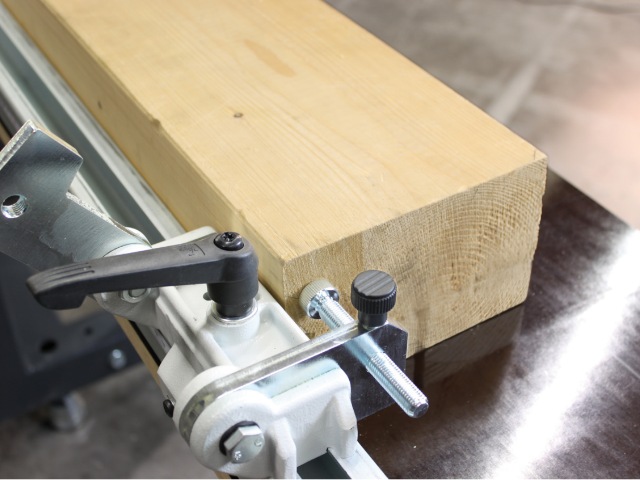

An exact length scale can be set with a stop.
The milling tool specially developed for the ZAF 250 can be adjusted in a flash for different tenon lengths.
and for blade milling.

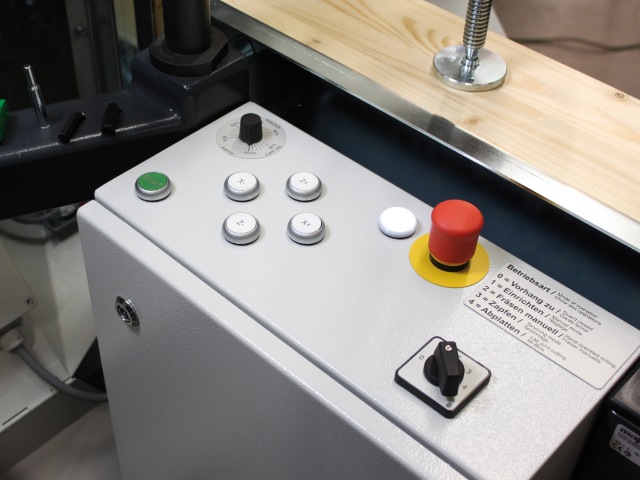

The ZAF 250 Vario has precise adjustment options and a clearly organised control panel.

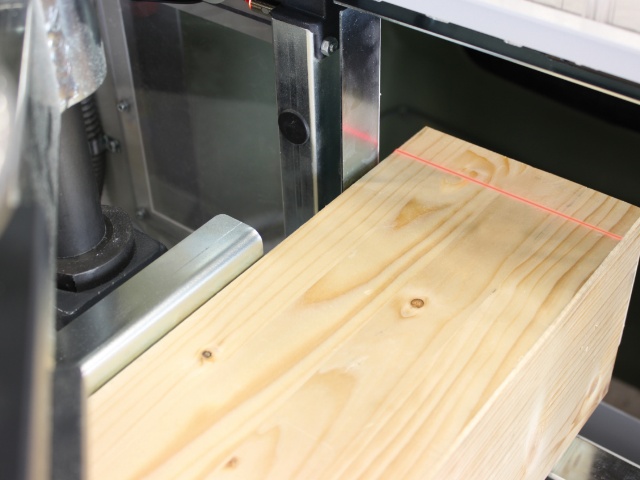

An in-built laser helps you to position the wood precisely. Result:
Millimetre-precise milling in any wood!
After setting the tenon geometry, the milling head automatically traces the tenon shape and
provides you with the desired tenon - including trimming, setting and chamfering.
The ZAF 250 Vario has an adjustable feed speed for hardwood inserts.
Technical data:
Maximum timber dimension (WxH)
right-angled 500×250 mm
Maximum timber dimension (WxH)
60° 220×250 mm
Length of support with scale 3000 mm
Feed speed 0.9 - 2.2 m/min
Installation area 1.5 x 4 m
Nominal idle speed 6670 1/min
Nominal power consumption 6000 W
Weight 392.1 kg
Three-phase motor 400 V / 50 Hz
