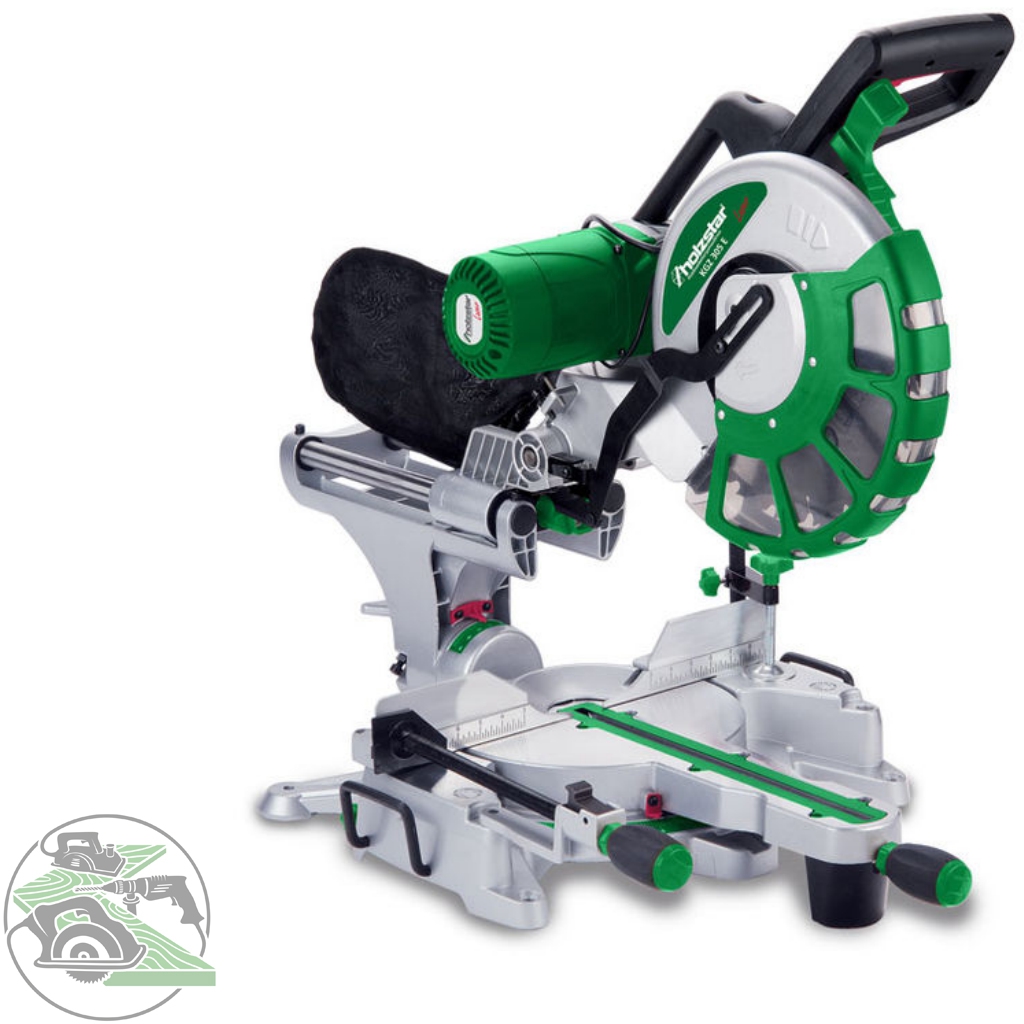

Chop/mitre saw

- NEW -
Make Holzstar
Type KGZ 305 E
with pull function

Performance features

- Mobile and versatile
- Equipped with soft start
- Base plate and turntable made of
Die-cast aluminium, yet compact,
Robust and easy to transport

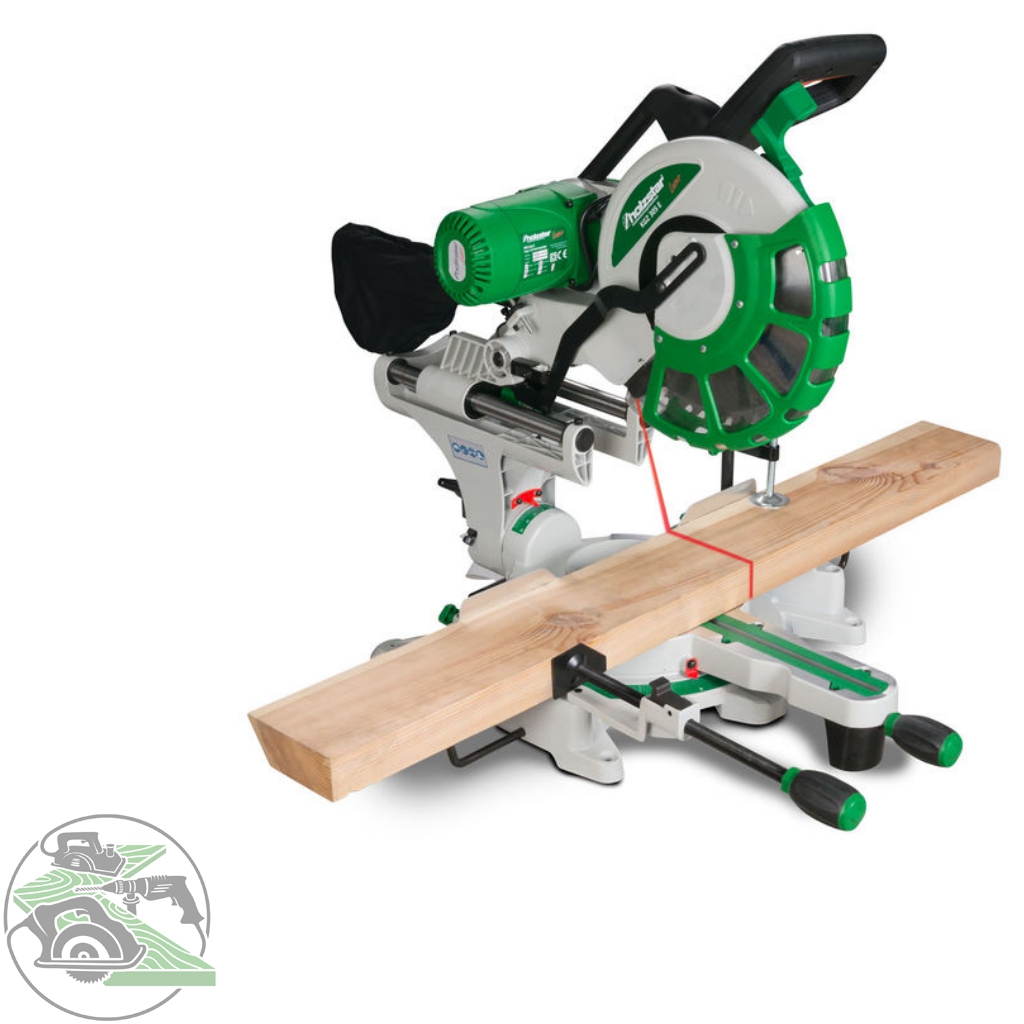

- Laser projection on the workpiece for
precise control of the cutting position

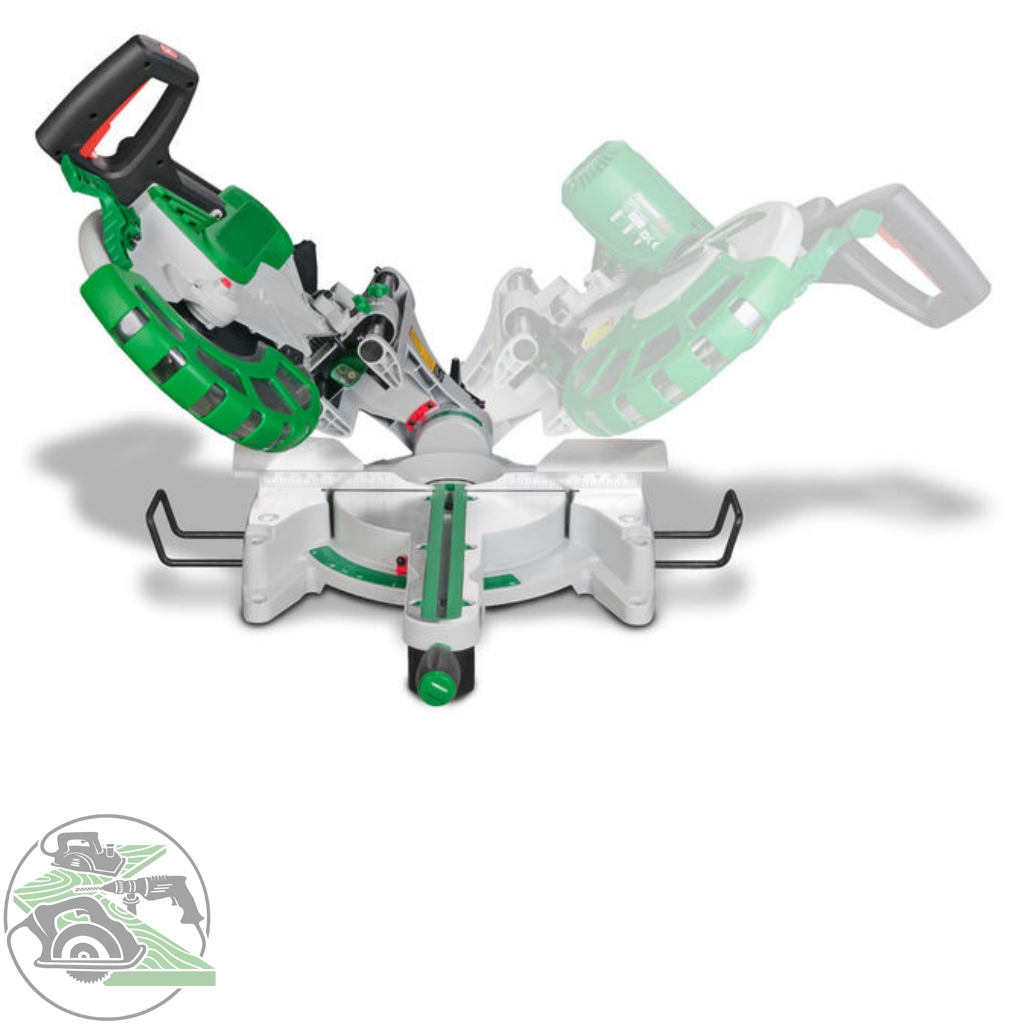

- Infinitely adjustable double mitre and
Double slope

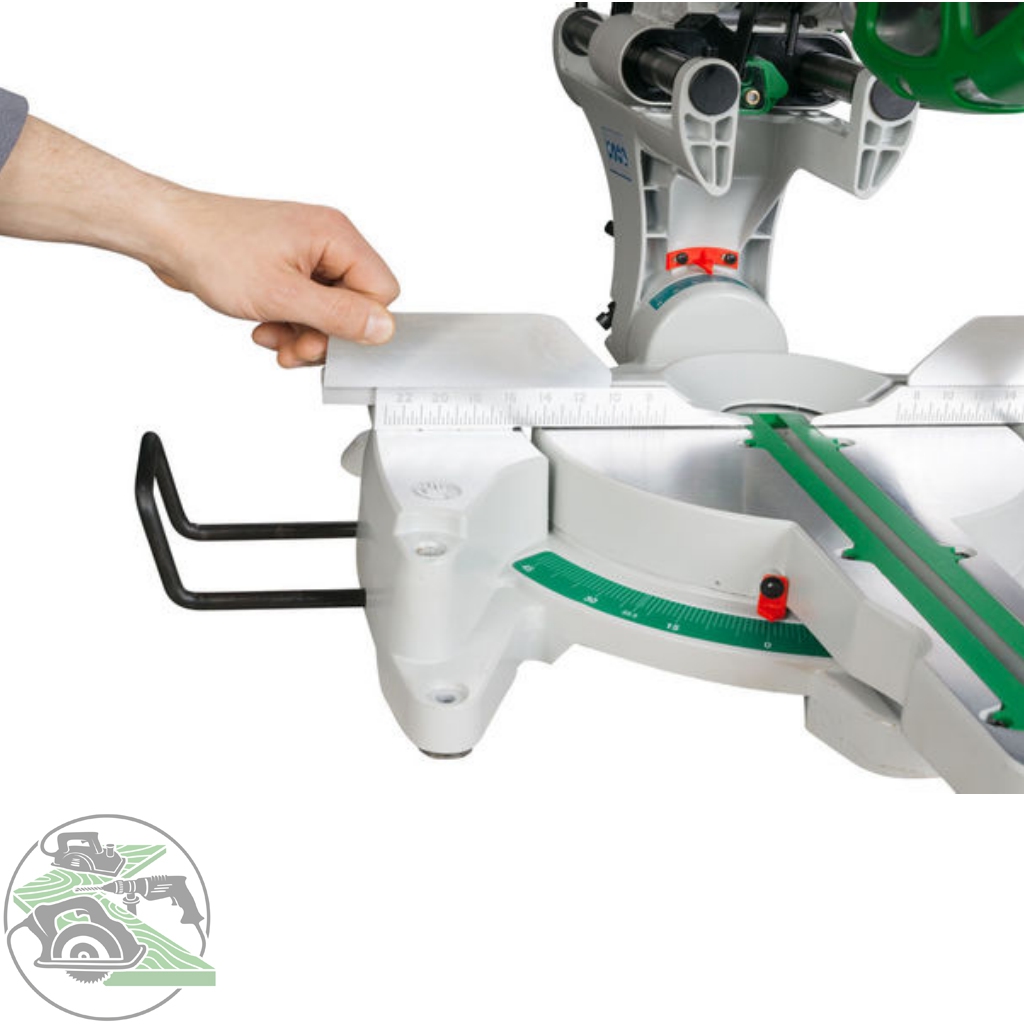

- Adjustable support rails and sideways
Extendable support aids for longer workpieces
- 2-way adjustable cutting depth limiter
with easily switchable stop
- With pull function for extended cutting range
- With screw clamp as standard and
Clamping device for secure
Workpiece locking
- With suction nozzle for dust collection bag
or the connection of an external extraction unit
- With double slope and double mitre as standard

Technical data
Max. cutting capacity
Inclination 0° / mitre 0° 100×340 mm
Inclination 45° / mitre 0° left 40×340 mm
Inclination 45° / mitre 0° right 40×340 mm
Inclination 0 / mitre 45° left 100×240 mm
Inclination 45° / mitre 45° left 40×240 mm
Inclination 45° / mitre 45° right 40×240 mm
Saw blade dimensions 305 mm
Motor power 2.0 kW
Electrical connection 230 V
Mains frequency 50 Hz
Current type ~
Speed 4500 min-1
Dimensions 835x570x790 mm
Weight 23 kg
Item no. 5702305

Storage location 97447 Gerolzhofen
- free loading -
