Description
Price reduction due to the year of construction!

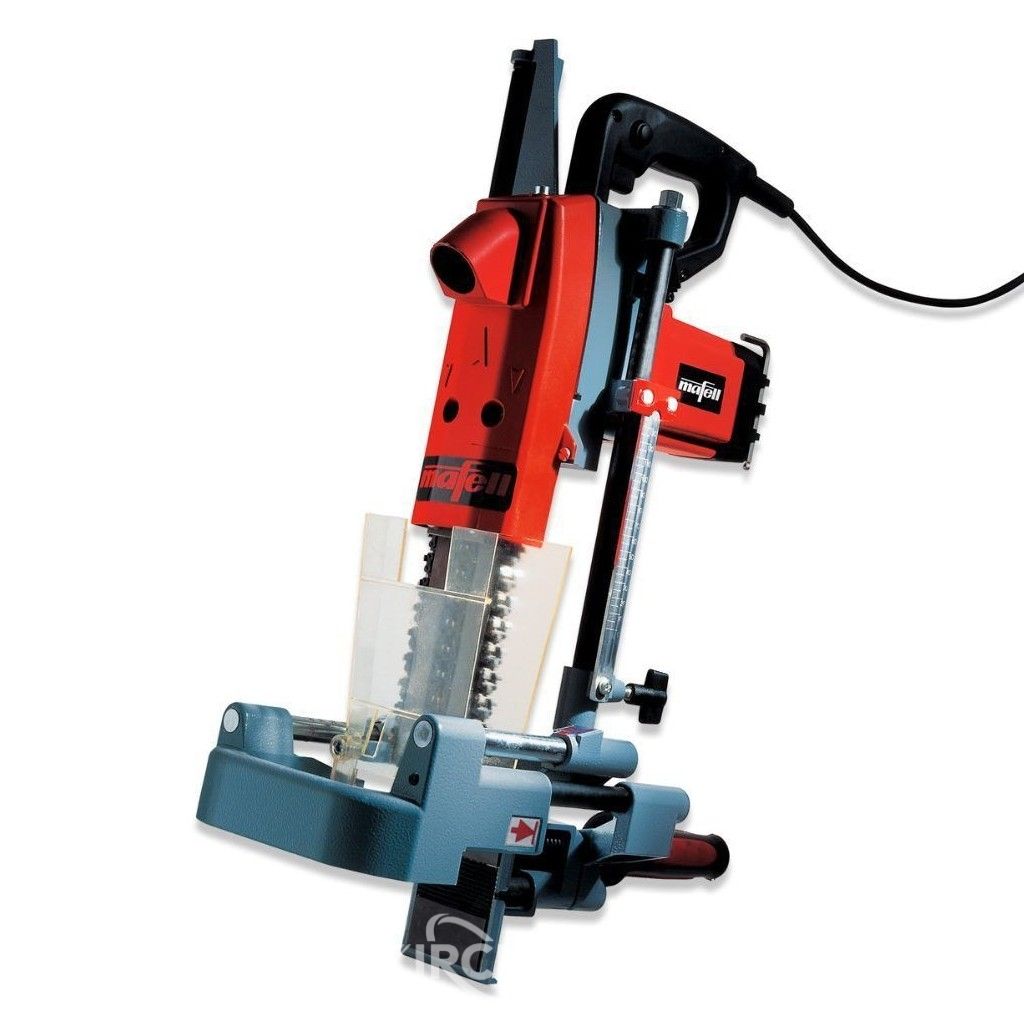

The SKS 130 - the world's first mobile specialised machine for chiselling out lock cases.
The need for security among house and flat owners has increased significantly. This is why more and more security locks are being installed.
With 1600 watts of power, the SKS 130 mills lock cases of any size - completely tear-free!
The SKS 130 is clamped onto the door over a large area. The Pertinax/rubber surface of the clamping device protects the door surface.
Whether installed on site or in the workshop.
Slot lengths of 78 mm and slot widths of 16 mm are possible with a single insertion.
Even wider or longer slots can be cut with millimetre precision - simply by repositioning the SKS 130.
No longer a problem: mortising lock cases on an installed door is quick and precise.
Two counter-rotating special milling chains ensure tear-free work and optimum chip flow.
Field of application:
Chiselling out lock cases (installation of security locks)
Use of materials e.g: Doors made of wood and wood-based materials, solid wood
Advantage Benefit:
Two counter-rotating special milling chains - for tear-free work and optimum chip flow.
Handy, ergonomic and compact design - for working on installed doors on site.
Two clear stop systems - for doors with and without overlap.
Technical data:
Mortising depth: 145 (130) mm
Chisel width: 16 mm
Mortise length: 78 mm
Lifting/working stroke: 175 mm
Nominal power consumption: 1600 W
Weight: 10 kg
Nominal idling speed: 5770 rpm
Universal motor: 230 V / 50 Hz
Scope of delivery:
2 guide rails complete; order no. 091000 No. 091000
2 chain wheels; order no. 091002
1 hexagonal screwdriver 5 mm; order no. 093278
1 transport case; order no. 095000
2 milling chains 16 mm; order no. 091001
1 connection cable 4 m; order no. 087323
