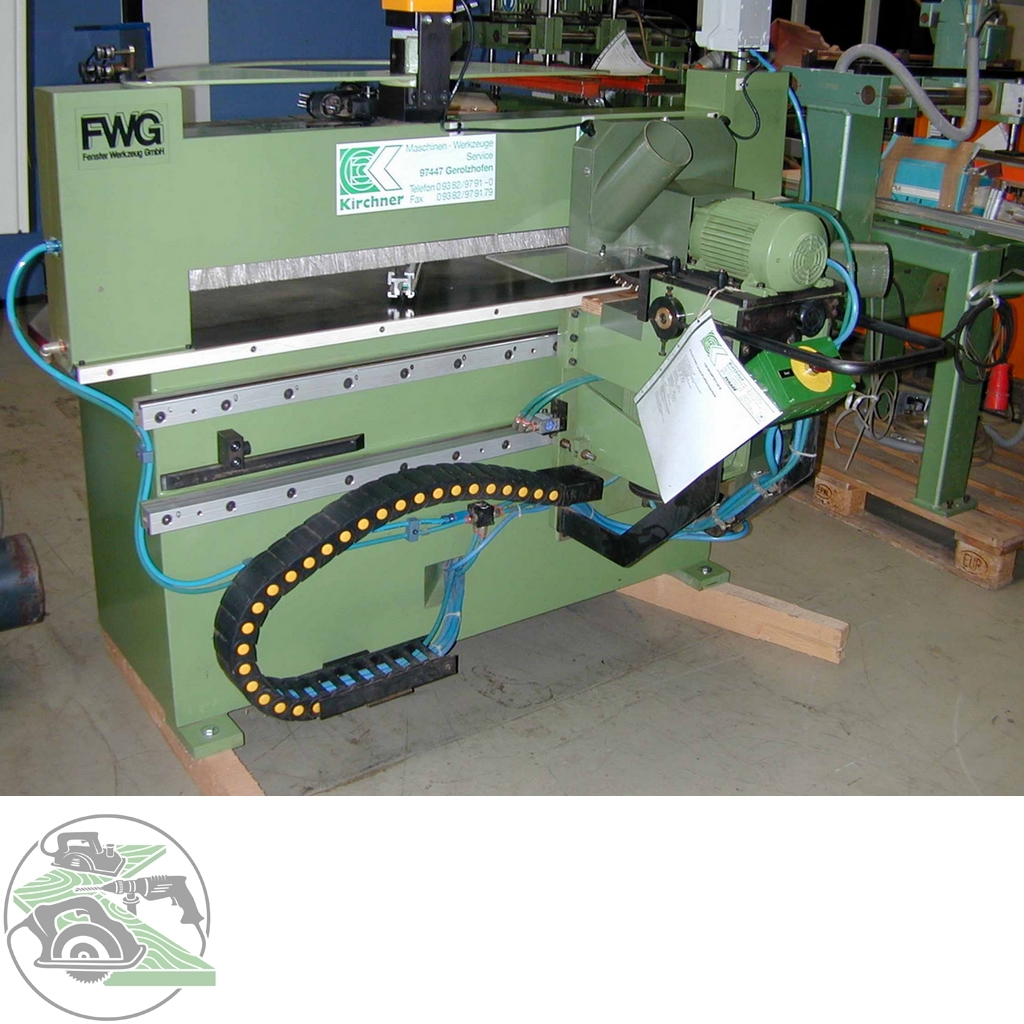

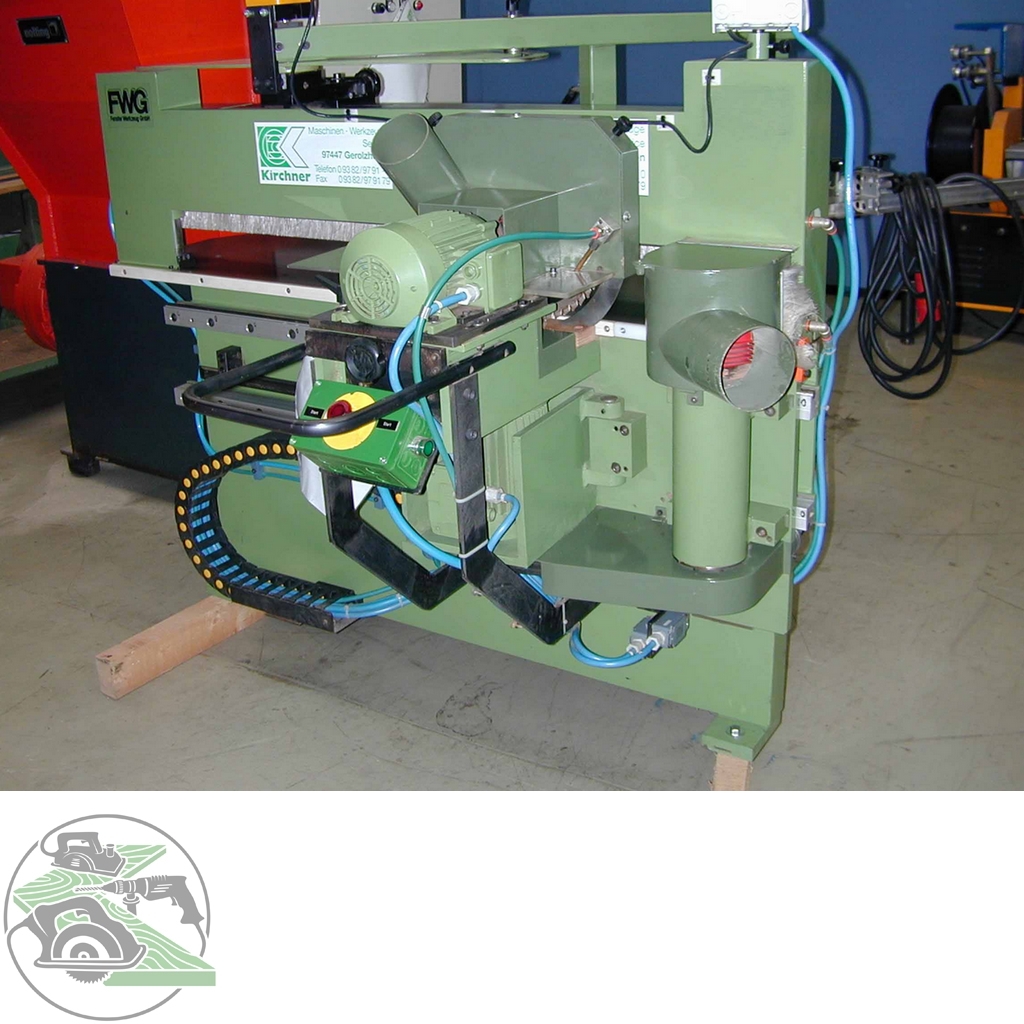

Linear roll forming machine
- Article No. 1326-13818
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Checked & fairly rated
Technical data
| Manufacturer | Deer |
|---|---|
| Model | Type FWG - LQP 180 |
| Item number | 1326-13818 |
| Category | Milling - Feed units › Tenon cutter |
Description of the
used, top condition, little used
cleaned, function-tested, test run
Maintenance unit and switch housing replaced
Pneumatics completely sealed
incl. adjustable mini tine cutter 60 to approx. 95 mm
Make Hirsch
Type LQP 180,
Year of construction approx. 1992
For transverse machining of mini prongs and counter profiles
Changeover to +70/-70 degrees inclination
Length measurement at the stop
Wood clamping with bridge 8 bar
Manual feed of the sawing and milling carriage
Safety circuit
Electric brake system
Wood thickness max. 80 mm
Wood thickness min. 10 mm
Tread depth max. 50 mm

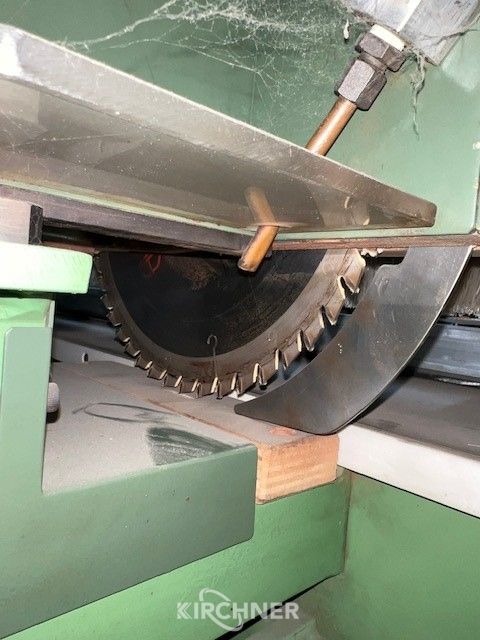

Sawing unit:
- Three-phase motor 2.2 kW
- Spindle speed 2800 rpm.
- Horizontal adjustment 50 mm

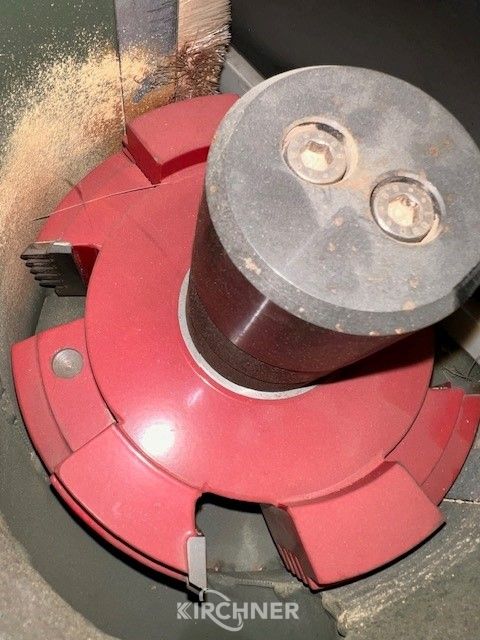

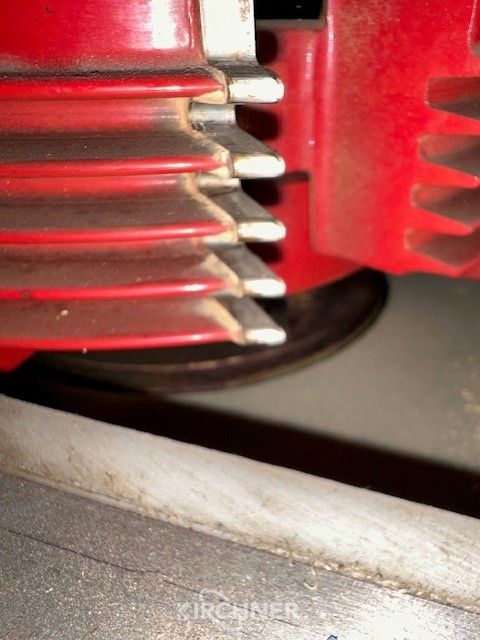

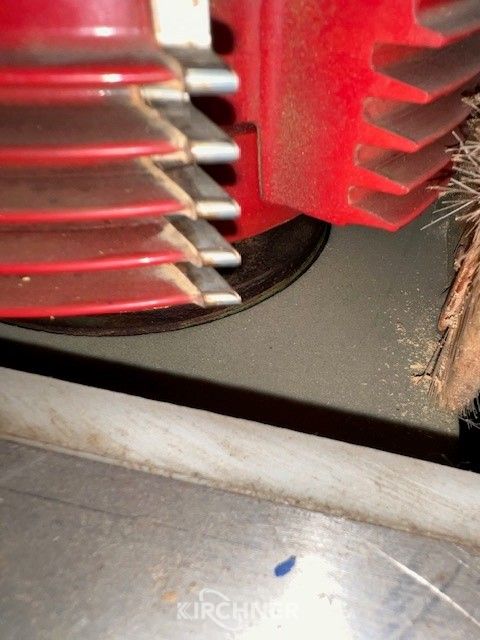

Milling unit:
- Three-phase motor 4 kW
- Spindle speed 6000 rpm.
- Spindle length 100 mm usable
- Spindle diameter 40 mm
- Tool diameter 180 mm
- Weight 850 kg
- Dimensions approx. 1700 x 1450 mm
Special accessories:
- Digital angle display, completely renewed,
org. Elgo
- Angle display graduation 1/10 degree
New price approx. 20.000,00 €
Storage location 97447 Gerolzhofen
Handover in as-is condition, as inspected
without guarantee and warranty
