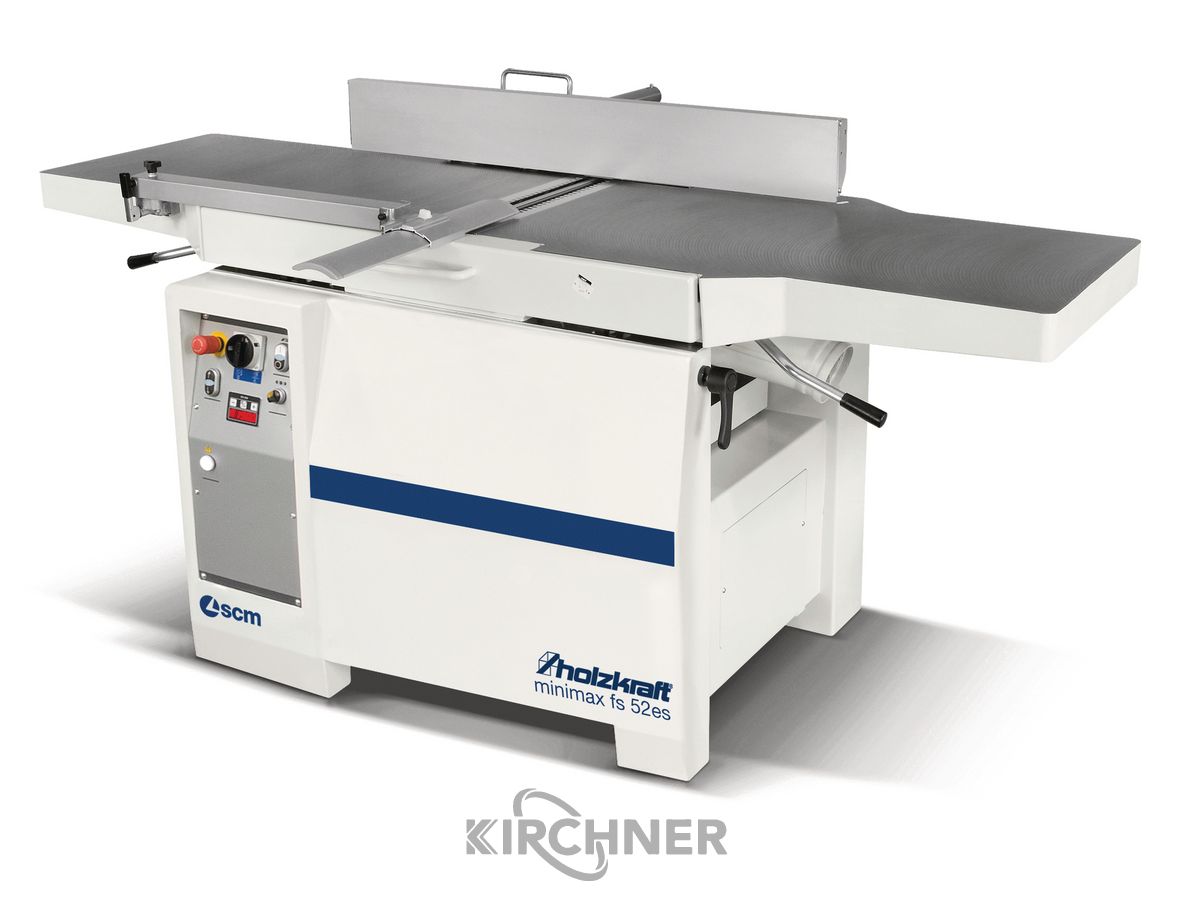

Surface planer and thicknessing machine SCM/Holzkraft minimax FS 52

- NEW -

- Ideal for demanding craftsmen and carpenters
- The particularly long dressing tables made from one piece enable
Easy dressing of the workpieces
- Work tables are made of grey cast iron, making them robust and durable
plan

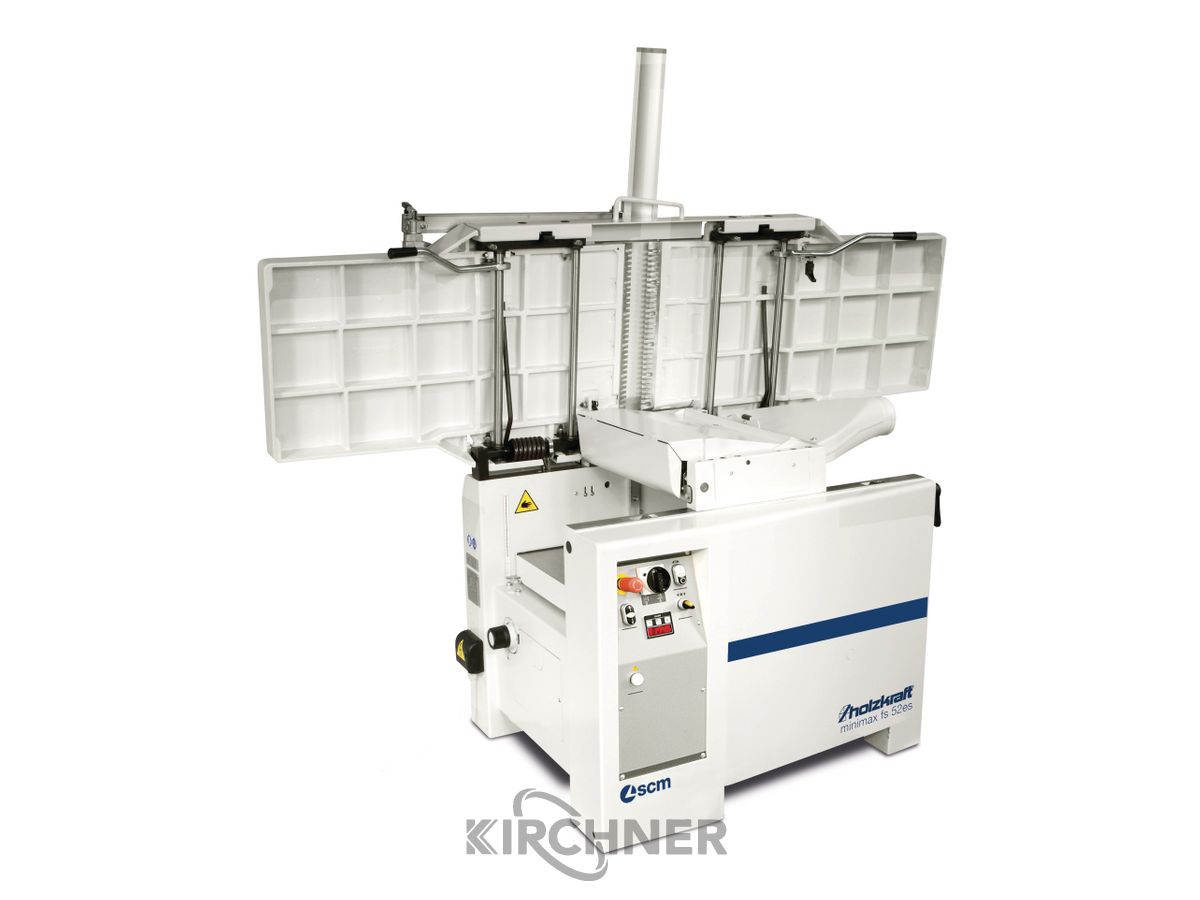

- Dressing tables that open simultaneously to the rear with tension spring support
for quick and easy retooling
- Thanks to the permanently mounted extraction bonnet, there is no need to reconnect the
suction hose is necessary, this saves valuable working time
- Helically toothed steel feed roller ensures constant and
Even wood feed
- Rubber pull-out roller in the thickness run-out ensures even timber pull-out
- Material feed with four speeds
- Planer thicknessing table adjustment via handwheel with integrated display for the
Planing height
- DIGITAL version: with electric thickness table height adjustment and
Digital display
- On and off switch in operator position
- Powerful industrial motor
- The high machine weight ensures maximum precision and smooth running.
- Preparation for slot drilling device
- Made in Italy quality

TECHNICAL DATA

Dimensions and weights
Length (product) approx. 2250 mm
Width/depth (product) approx. 1370 mm
Weight (net) approx. 695 kg

Dresser
Total length of the tables 2250 mm
Chip removal max. dressing 5 mm
Dressing fence length 1200 mm
Dressing fence height 150 mm

Suction connection
Suction nozzle diameter Thickness1 x 120 mm

Installation information
Space requirement Length 2250 mm
Space requirement width/depth 1440 mm

Explanation Space requirement
The dimensions take into account maximum travel distances or effective lengths.

Thickness
Thicknessing table length 850 mm
Thicknessing table width 520 mm
Working height Thickness min. 3 mm
Working height Thickness max. 240 mm
Working length Thickness min. 220 mm
Chip removal max. thickness 5 mm

Electrical data
Drive motor power 7 kW
Supply voltage 400 V
Mains frequency 50 Hz

Planing cutterblock

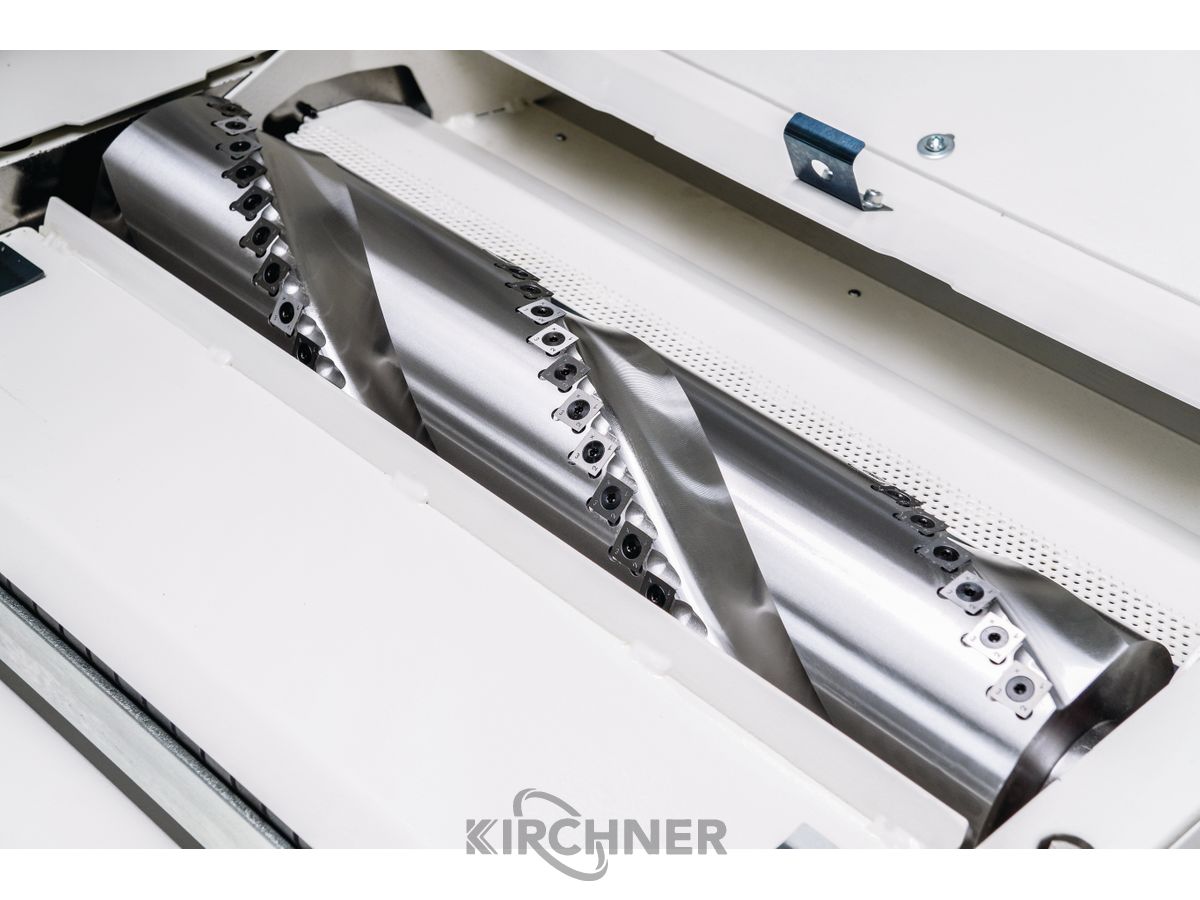

SPIRAL planing shaft type
Number of planing knives 66 pcs
Planing shaft speed 5000 min¯¹
Planing width max. 520 mm

Feed rate
Feed speed 5 / 8 / 12 / 18 m/min

SCOPE OF DELIVERY
Jointer fence with round bar guide
Four feed speeds
Spiral cutterhead
Motorised height adjustment of the thicknessing table with digital display
