Description
- NEW -

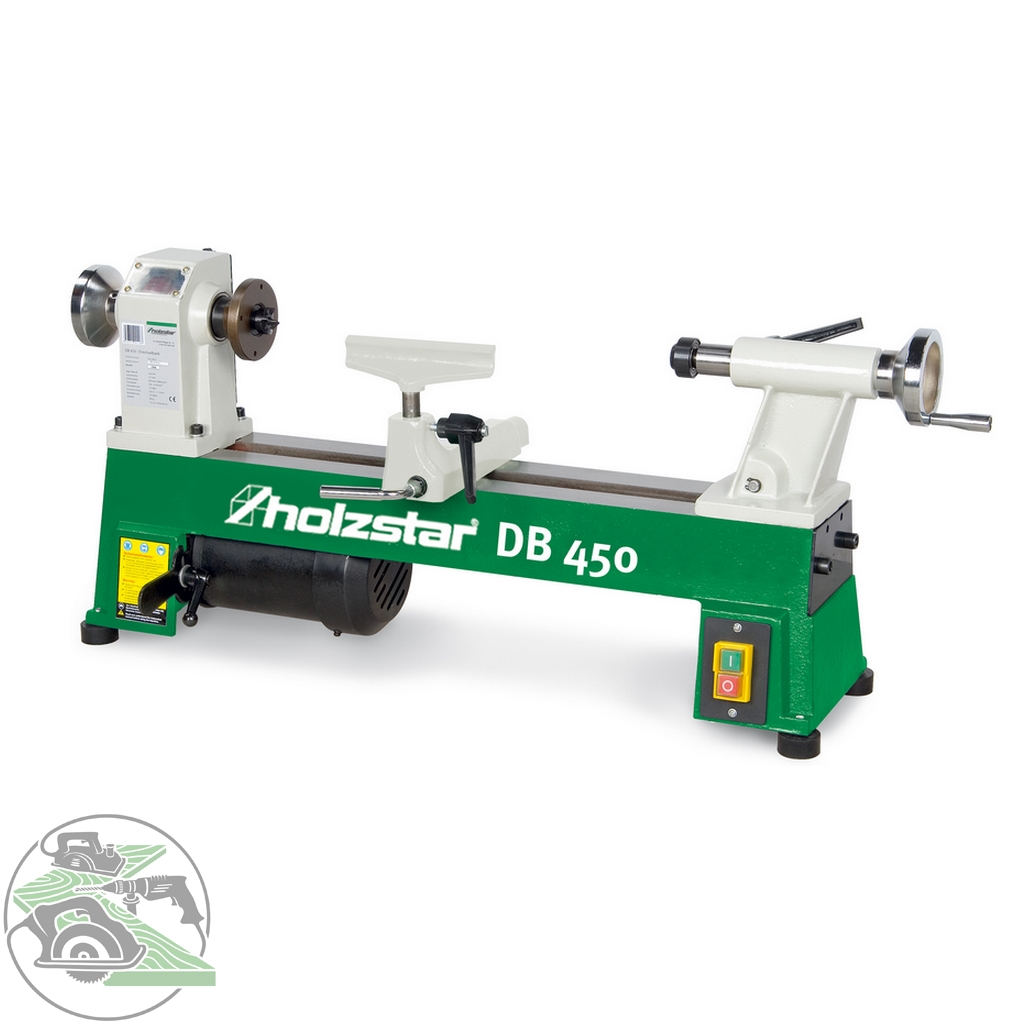

Lathe in compact design
for the hobby user and professional
Description:
- Machine bed made from torsion-resistant
Grey cast iron for smooth running and precision
- Tailstock and headstock made of sturdy grey cast iron
- Tailstock with 50 mm stroke?as standard
with moving centre point
- Speed adjustment in 5 stages via V-belt
- Easily adjustable torsion steel support
- Tailstock sleeve with bore for machining
long workpieces
- Centre width of 450 mm via optionally available
Bed extension can be extended to 1000 mm
Technical data:
Turning diameter max. 254 mm
Speeds 680, 1000, 1400, 2000, 2800 min?¹
Speed levels 5
Quill adjustment 50 mm
Dimensions and weights
Length approx. 820 mm
Width/depth approx. 300 mm
Height approx. 430 mm
Weight approx. 31 kg
Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Scope of delivery:
- Tailstock
- Travelling centre punch
- Torsion steel support
Item no. 5920450
