Description
- NEW -

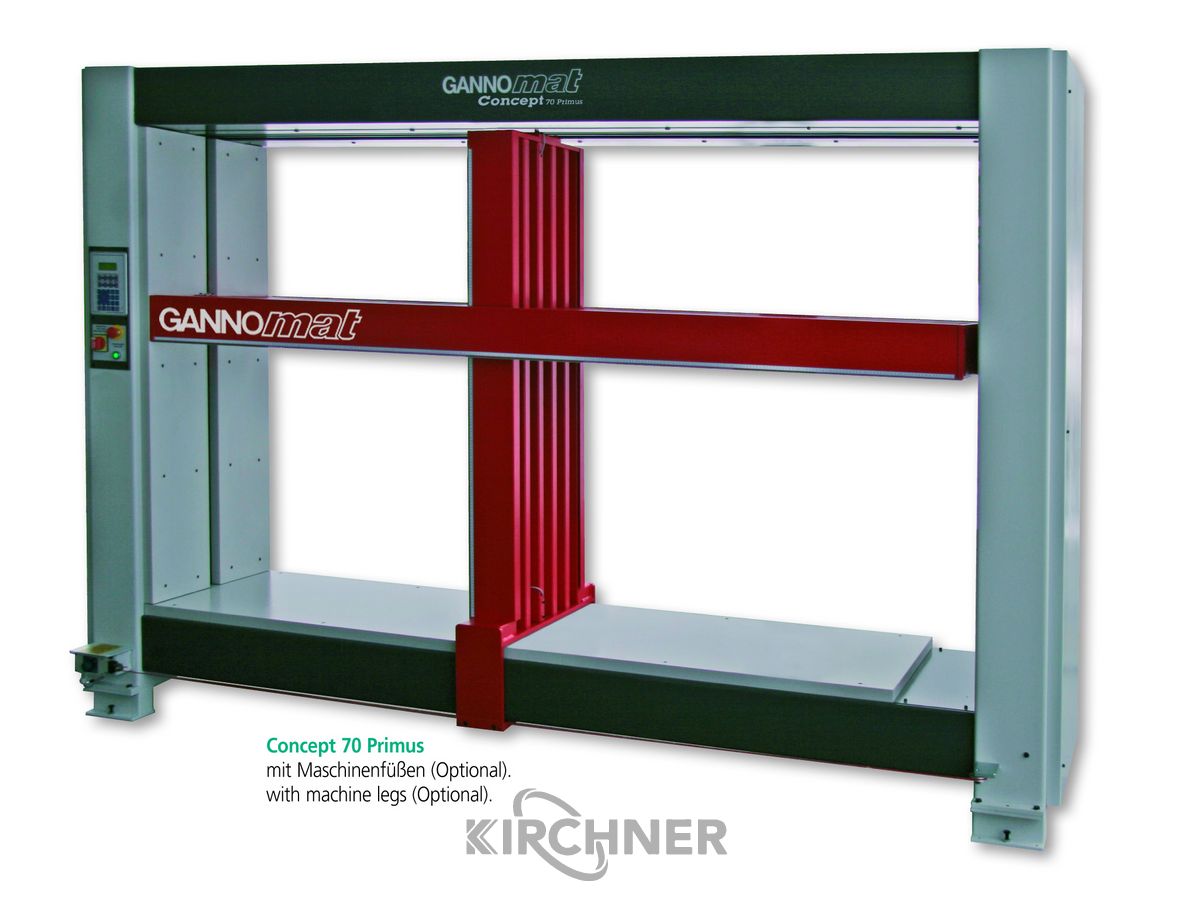

Make Ganner Gannomat
Type CONCEPT 70 PRIMUS
- Sturdy, torsion-free steel frame, welded and bolted construction
- Slatted pressure beam TOP with 7 elements, slatted pressure beam SIDE with 6 elements
- Laminated press bars with tried-and-tested tolerance compensation (Ganner system) for tightly pressed carcase joints
- Counter pressure surfaces (side pressure wall, base) are 38 mm thick, coated, continuous support plates
- Electromotive adjustment of the two press beams via precision trapezoidal threaded spindles (with increased pitch and concentricity accuracy) and high-performance running nuts with grease reservoir
- Pressing is motorised, via 2 separate spur gear motors (2 x 1.5 kW)
- The pressing force of the pressing bars is infinitely variable electronically via 2 potentiometers.
and controlled via frequency converter, so the press force control is absolutely wear-free
- Pressing force for horizontal pressing beam min. 800 daN (kg) to infinitely variable max. 3500 daN (kg)
- Pressing force for vertical press bars min. 600 daN (kg) to infinitely variable max. 3500 daN (kg)
- Pressing and adjustment speed of the pressing bars with fine positioning, via 3-step selector switch 5 / 10 / 15 mm/second
- Jog mode for precise positioning of the two pressing beams, e.g. for low pressing forces, drawers and carcasses 45°
- Simple operation via 6 separate push buttons, 8 movement sequences can be selected via the control unit
- Freely adjustable pressing time preselection 0-30 min (switchable to seconds or hours) with individually programmable opening dimensions of the two pressing bars
- Re-pressing function for increasing or reducing the pressing force during the pressing process
- Including option: rapid traverse speed, for fast positioning of the press beams, controlled via automatic workpiece detection with sensors in the press beams, press speed 5 / 10 / 15 mm/sec. and rapid traverse speed 50 mm/sec.
can be switched off for the pressing of special parts
- Working height/loading height: 300 mm
- Working dimensions:
Length min: 150 mm, max: 2500 mm
Height min: 150 mm, max: 1400 mm
Depth: 700 mm
Electrical connection: 400V, 3Ph, 50Hz ( 6 kVA, 16 A)
Order no. 0721A600B
