Description
Description:

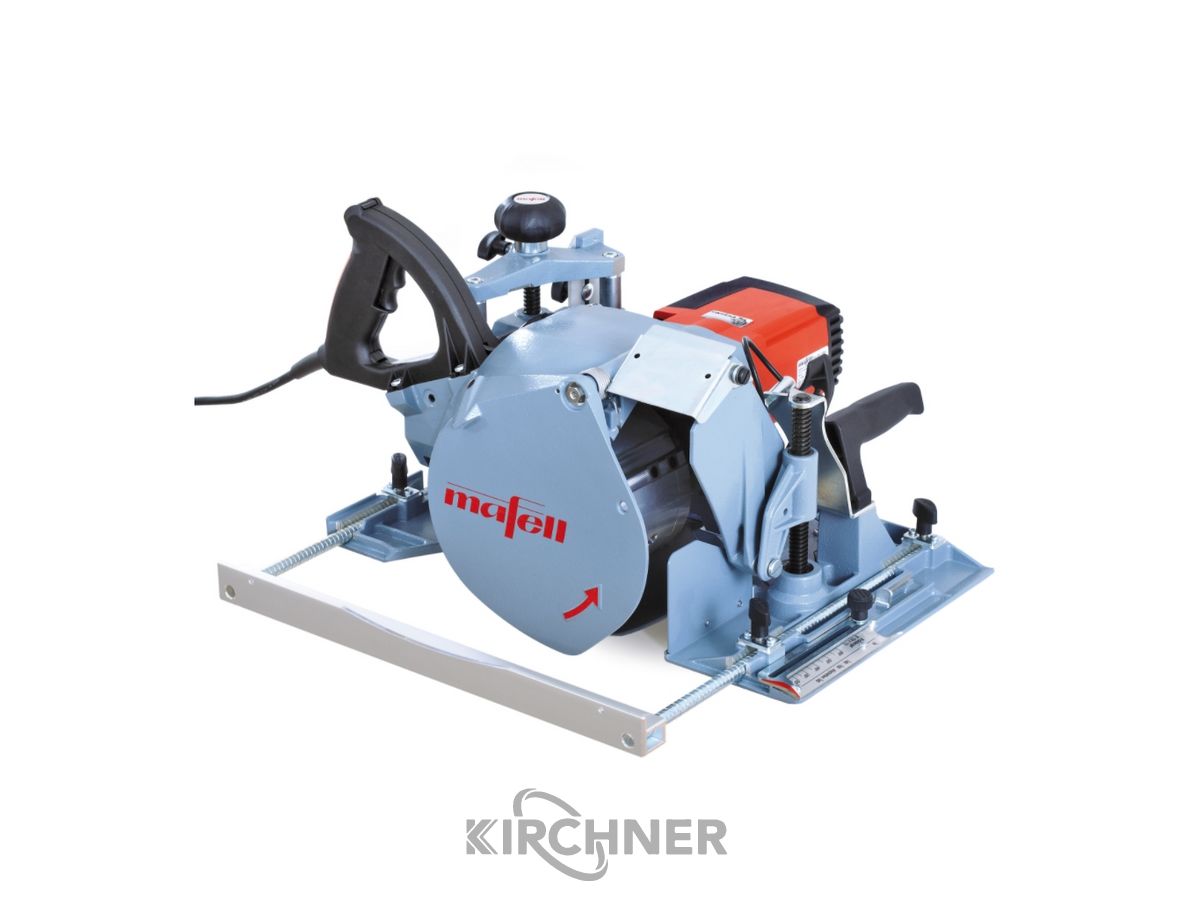

The ZK 115 Ec - the impressive power pack with convenient handling, tool brake and electronics for: - Soft start - Constant speed under load - Overload protection - Machine-friendly speed reduction when idling - Reduced noise emission The completely newly developed 150 x 115 mm milling head of the ZK 115 Ec with its 13 carbide inserts (9 for milling, 4 for pre-cutting) enables extreme cutting with optimum chip flow and significantly longer tool life. Simply mark the countersink and vertical crack, set the crack indicator, countersink cutter and roof inclination - and you're ready to mill. It couldn't be easier! The guide rails in the special accessories can be used for all other MAFELL carpentry machines.
Advantage Benefit:
Special machine - for all types of moulding and flattening.
Fast and precise adjustment options - no test milling necessary - therefore significant time savings.
All-round protective cover - for optimum user protection. Area of application: Kerfing and flaking Material use e.g. solid wood, glulam: Solid wood, laminated wood
Technical data:
Swivelling range 0 - 60 °
Nominal idling speed 4050 1/min.
Cutting speed 31.8 m/s
Nominal power consumption 3000 W
Weight (with standard milling head) 18.4 kg
Cutter tool - 150 x 115 mm as standard
Universal motor 230 V / 50 Hz
Flattening depth 0 - 70 mm
Scope of delivery:
1 ZK 115 Ec moulding machine
1 moulding head, complete, D. 150 x 115 mm
1 rip fence
1 hexagonal screwdriver
1 Torx T 15 screwdriver
1 connection cable 10 m
