Description
- NEW -
Make Holzkraft

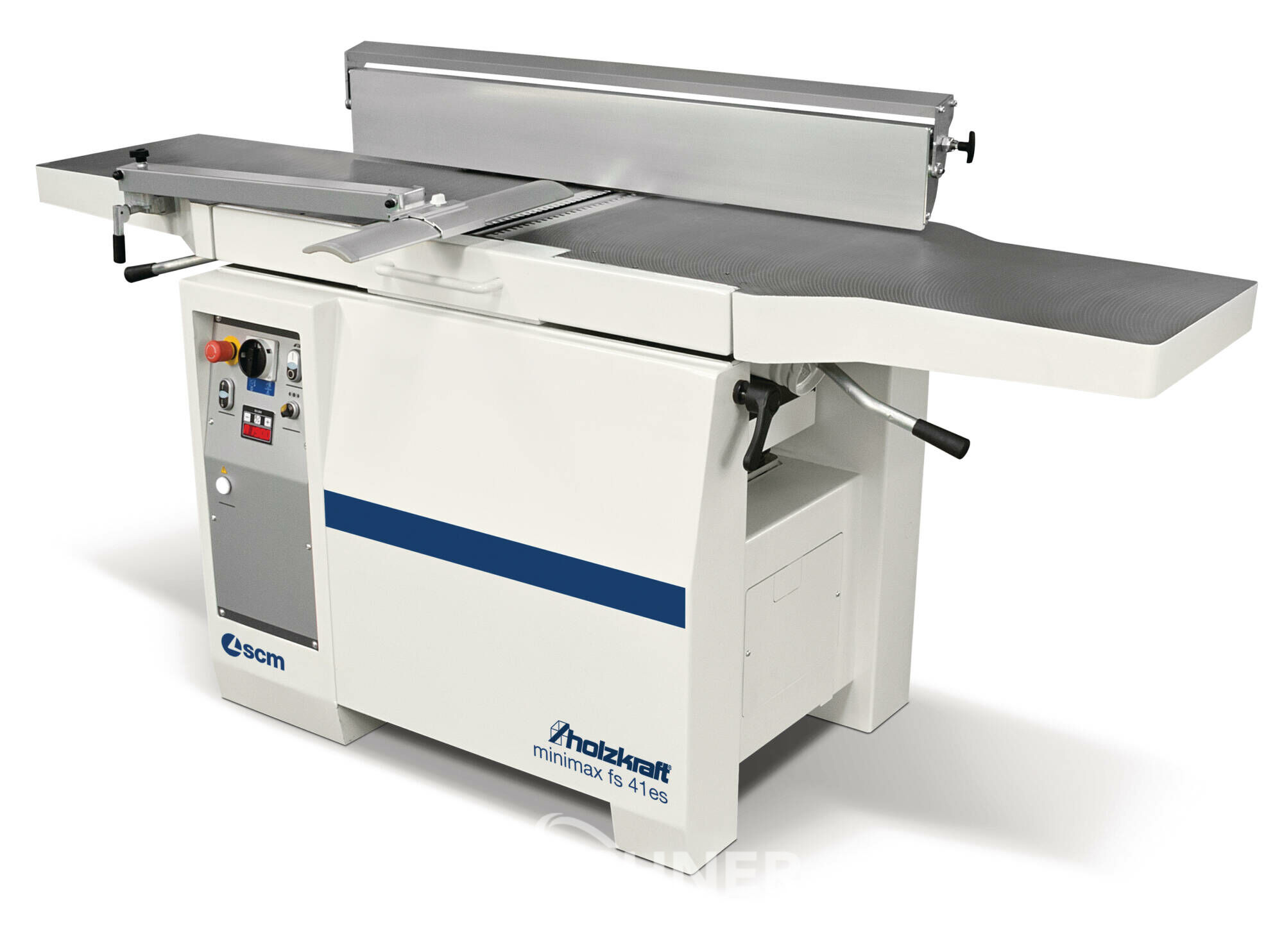

Type FS 41 elite S Tersa Digital

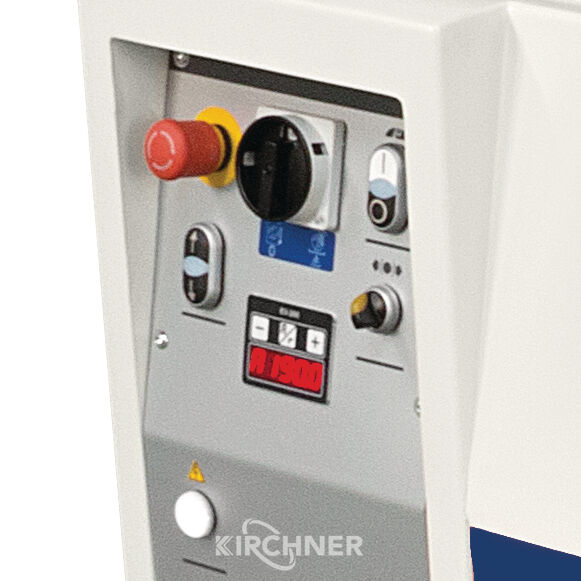

Digital version with motorised thickness table adjustment

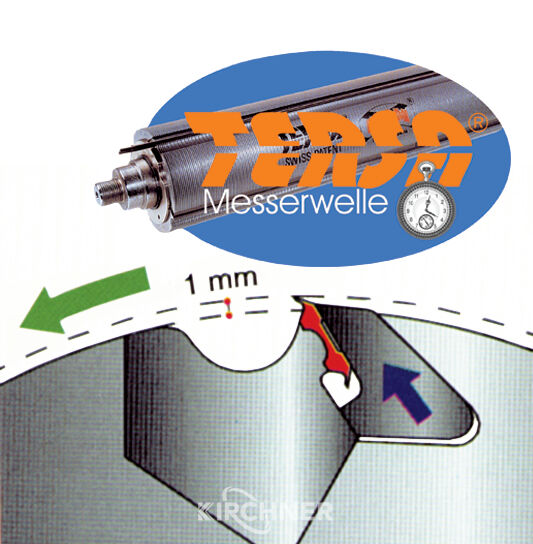

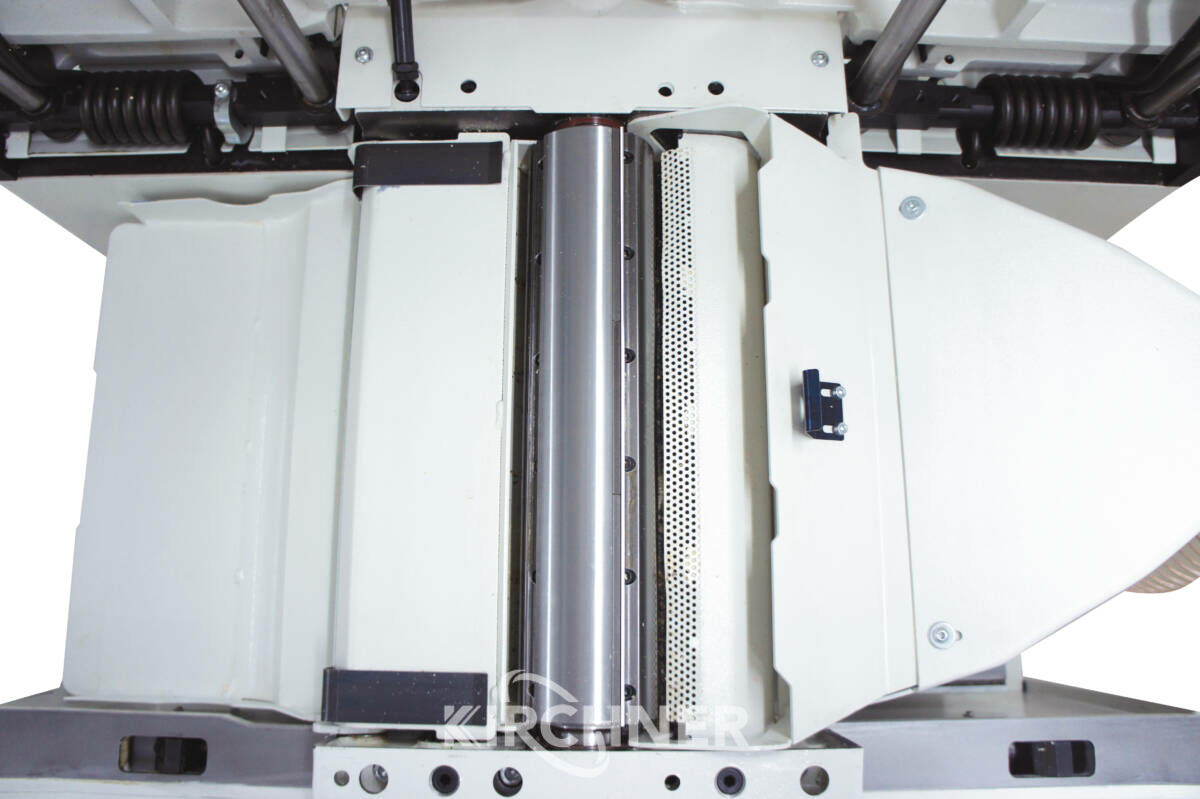

- Planing knife system allows for quick and easy
Blade change and particularly quiet operation
- Extra long dressing tables (2200 mm)
made from one piece allow easy dressing of the
Workpieces
- Work tables are made of grey cast iron, post-annealed and
Stress-free, therefore insensitive and permanently flat

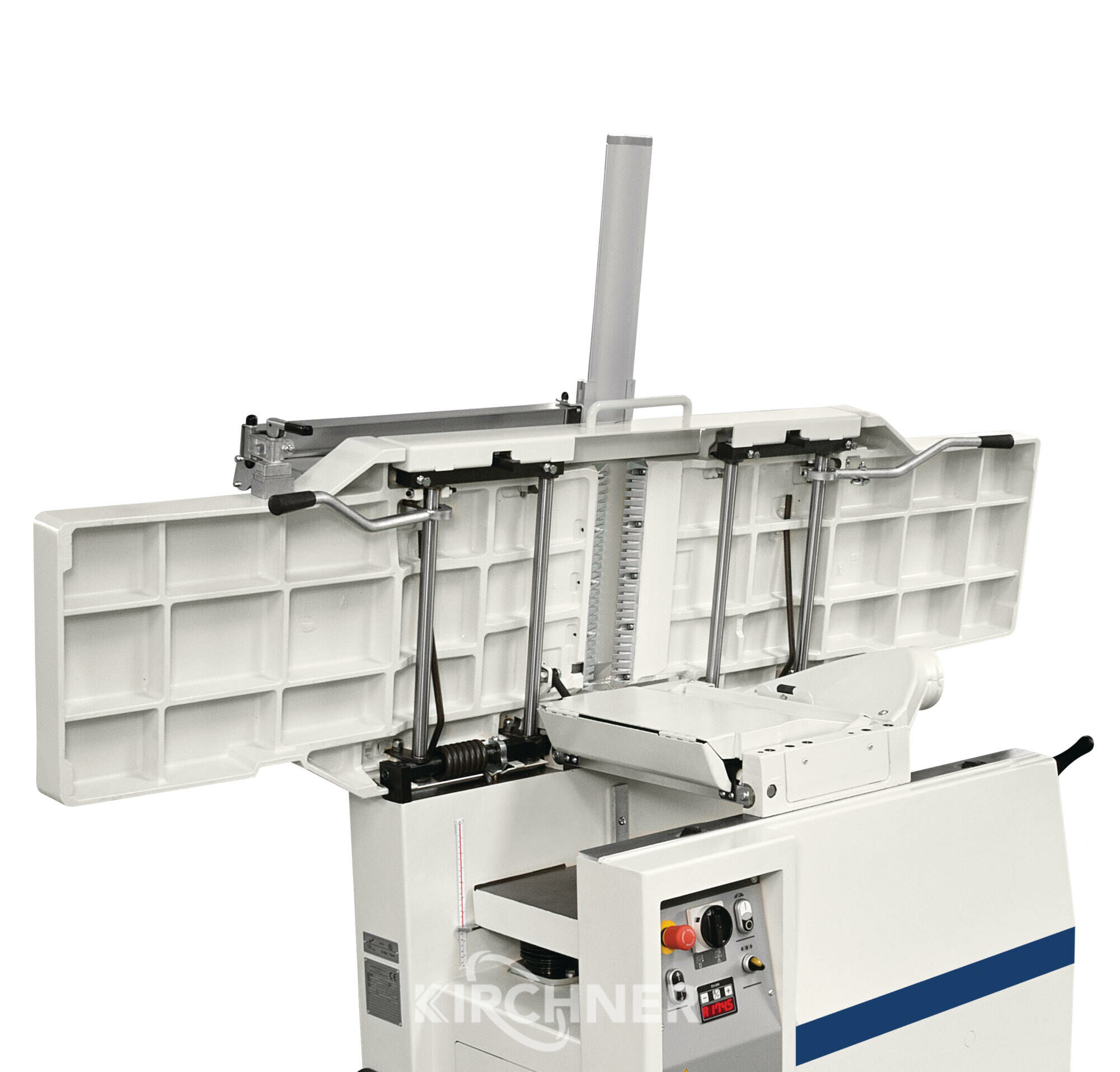

- Simultaneous opening of the tables

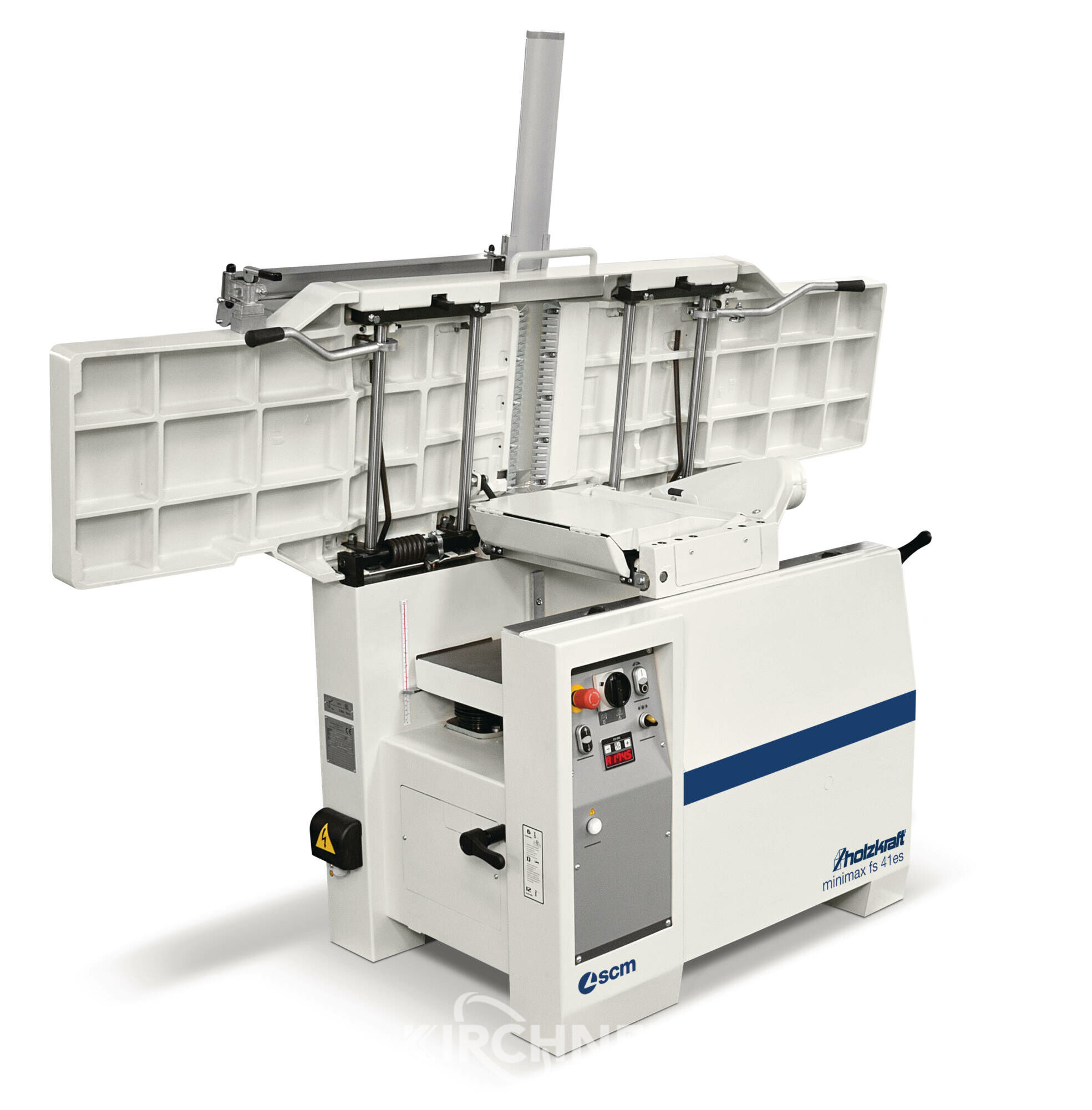

- to the rear, simultaneously opening dressing tables for short
Set-up times
- Powerful industrial motor
- Fixed extraction bonnet
- Robust steel/grey cast iron construction
- Simultaneous opening of the tables

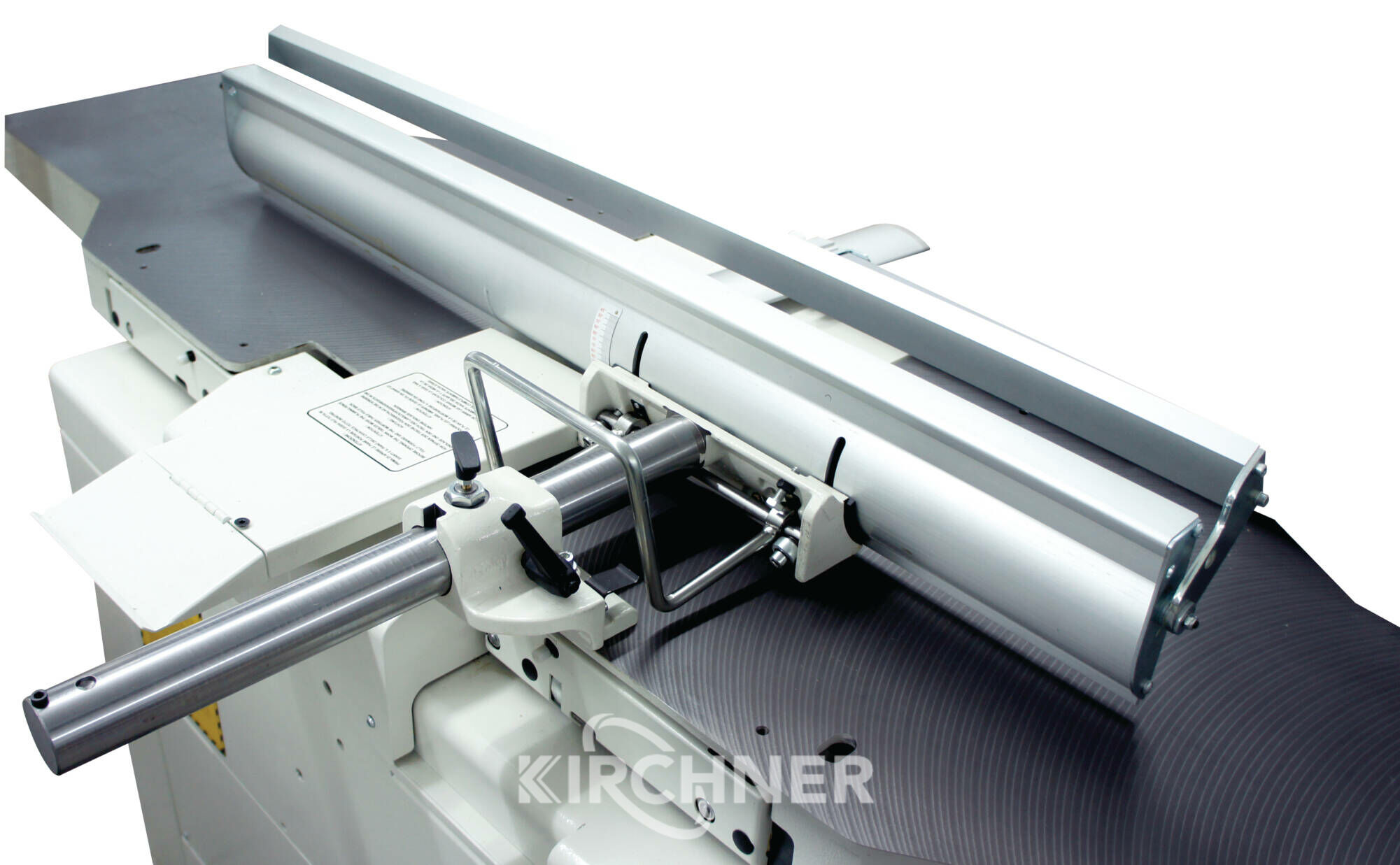

- Large dressing fence (with auxiliary fence as standard)

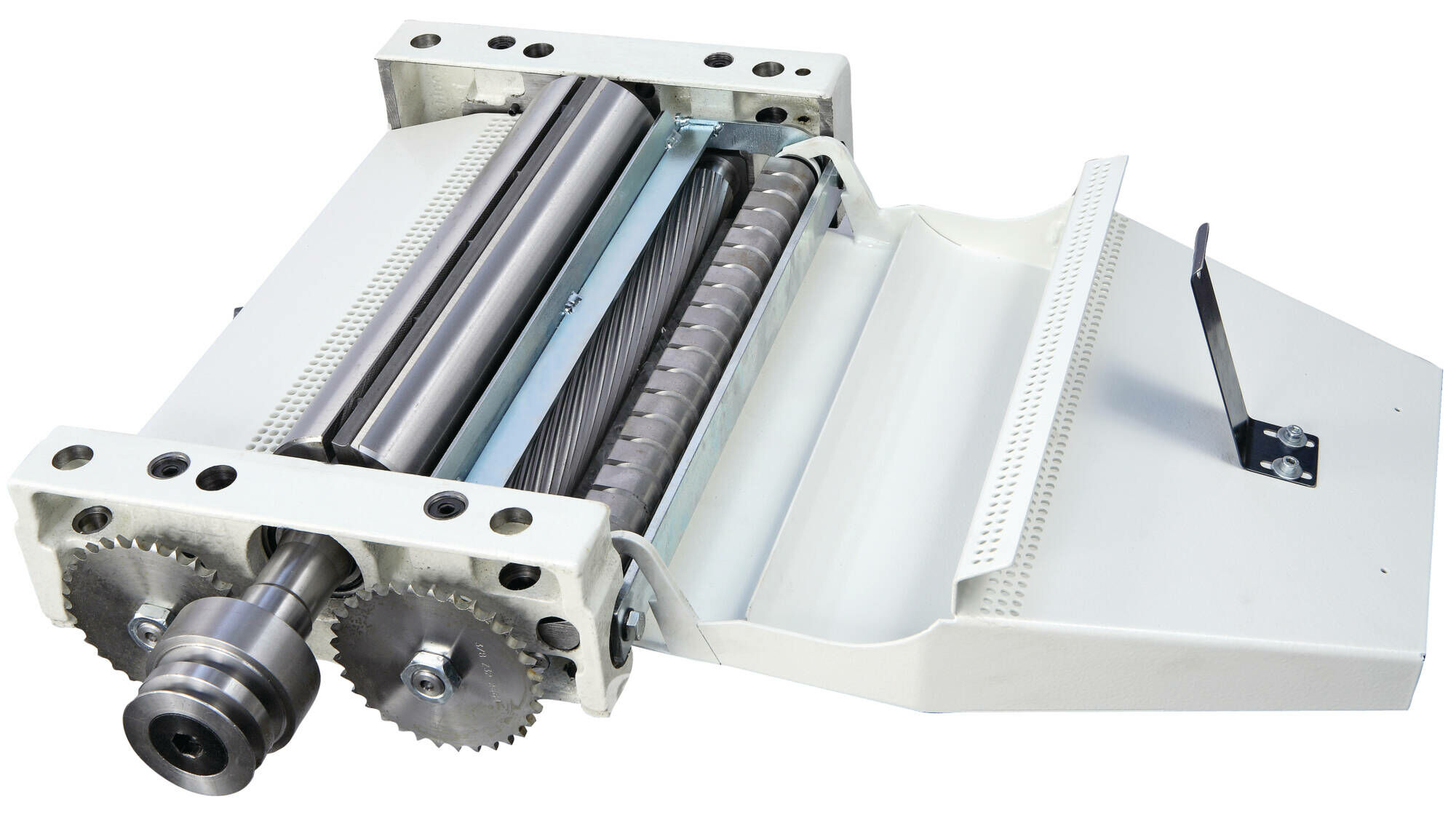

- Material feed with two speeds via
spearatem motor
Technical data:
Total length of the tables: 2200 mm
Working width: 410 mm
max. chip removal: 5 mm
Thickness:

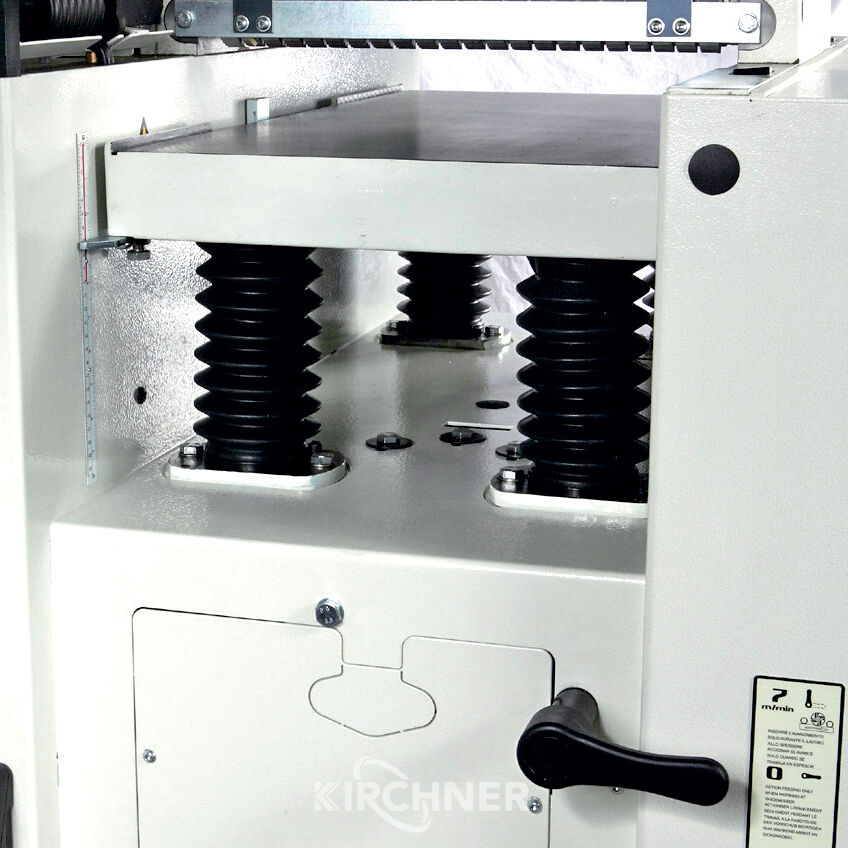

Thickness table dimensions: 775×410 mm
min/max. working height: 3/240 mm
Feed speeds: 6/12 m/min.

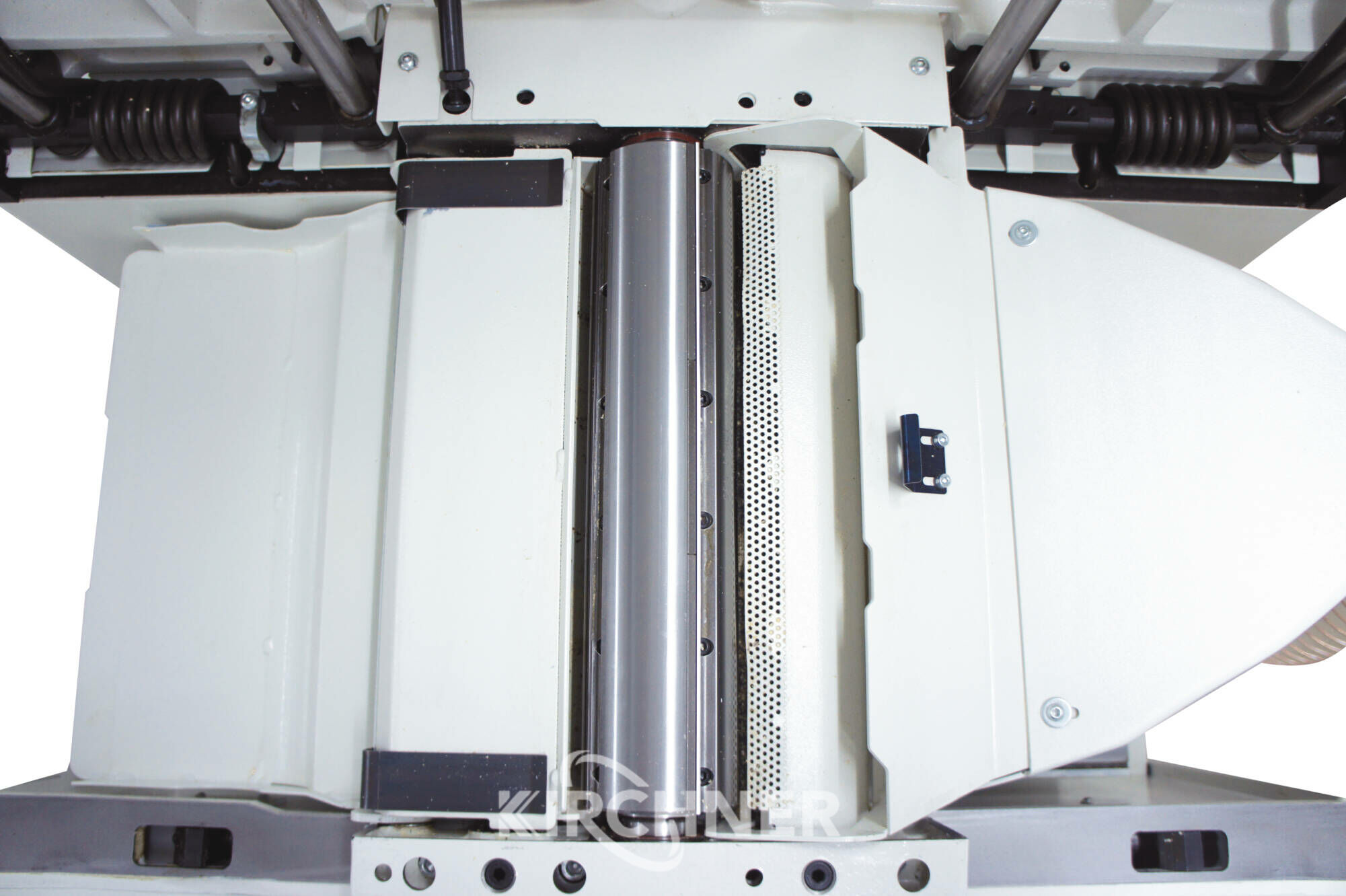

Planing shafts D./planing knives: 95 mm/4 pieces
Speed: 5000 1/min
Motor 400 V/50 Hz/S6 - 40 % 5.0 kW (6.6 hp)
Suction nozzle diameter: 1 x 120 mm
Weight: 450 kg
Item no.: 550 3441
Storage location: 97447 Gerolzhofen
- free loading-
