Description
- NEW -
DESCRIPTION

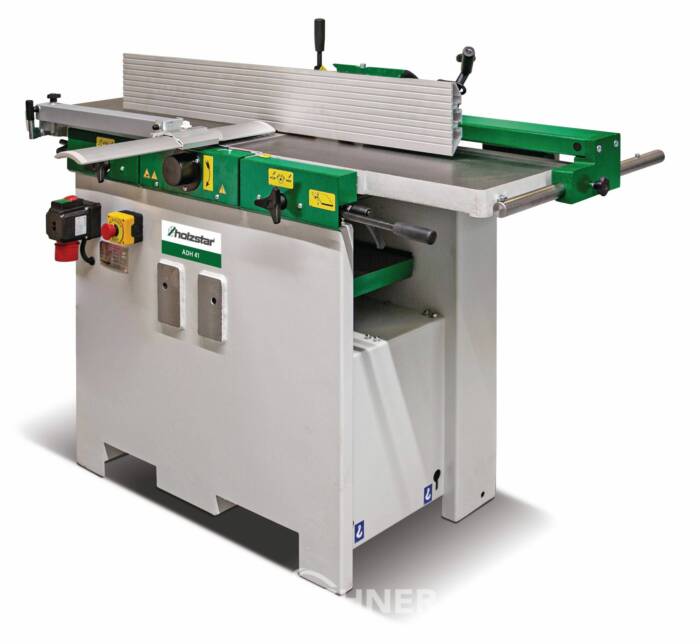

Thicknessing plane for precise, angular planing of smooth surfaces
Thicknessing table with centre column guide, additional guide and
Mechanical totaliser (accuracy 0.1 mm)
Large dressing tables made from grey cast iron with ground
Surface
Folding up the levelling tables with spring support for a
Quick and convenient changeover to thickness planing in seconds
Sturdy professional dressing fence can be swivelled from 90 to +45°
Space-saving lateral guidance of the dressing fence
High-quality workmanship and ergonomic design
Slot drilling device available as an accessory
TECHNICAL DATA
Dimensions and weights
Length (product) approx. 1800 mm
Height (product) approx. 1000 mm
Width/depth (product) approx. 740 mm
Weight (net) approx. 420 kg
Dresser
Dressing table length 1800 mm
Chip removal max. dressing 5 mm
Dressing table width 410 mm
Swivelling range dressing fence 90 - 45°
Working height 850 mm
Suction connection
Suction nozzle diameter Thickness 120 mm
Thickness
Thicknessing table length 700 mm
Working height Thickness max. 225 mm
Thicknessing table width 406 mm
Working length Thickness min. 300 mm
Working height Thickness min. 4 mm
Chip removal max. thickness 5 mm
Electrical data
Input power 5.5 kW
Mains frequency 50 Hz
Supply voltage 400 V
Planing cutterblock
Planer shaft speed 4600 min?¹
Planing shaft diameter 100 mm
Planing width max. 410 mm
Number of planing knives 4pcs
Feed rate
Feed speed 8 m/min
SCOPE OF DELIVERY
Reversible moulding knife mounted
Professional side dressing fence
