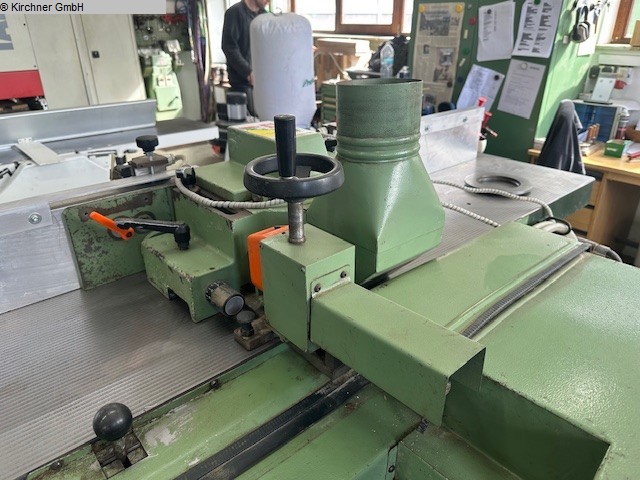

HOFMANN TFS 1200 Swivelling spindle milling machine

Machine cleaned, function tested
partially outdated.
Spindle run-out true to size, maximum 1/100 mm
Compressed air hoses, filter regulators, mist lubricators renewed
Test run

used, top condition, top equipment
with submersible spindle
With this milling machine, plunge and plunge-cut milling operations can be carried out. This means that the milling spindle can be plunged in and out by an adjustable end stop, controlled by a pneumatically movable table.
Make Hofmann
TypTFS 1200
Year of construction 1992
Machine No. P127-92-222-723
Motor 5.0 / 6.2 kW reinforced
Pivoting from -5° to +45°
Motorised brake
Motor 2 speeds/polarity reversible
6 speed settings 3 / 4 / 5 / 6 / 8 / 10,000 rpm.
Right-left run
Table size 2000 x 830 mm
Milling arbour diameter 30 mm

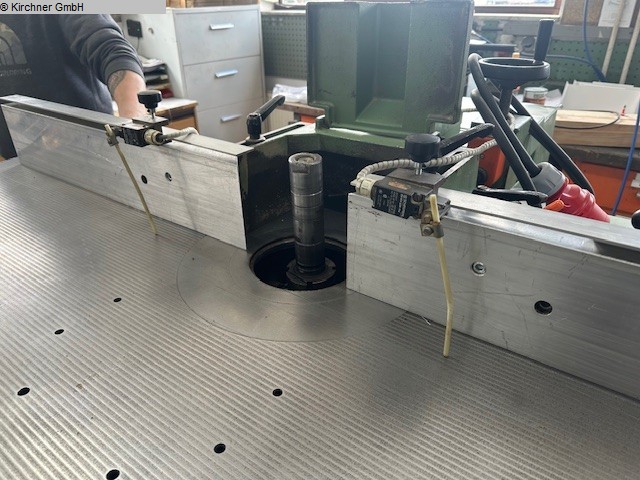

Milling fence with fine adjustment
Digital displays for milling fence – diameter – chip depth

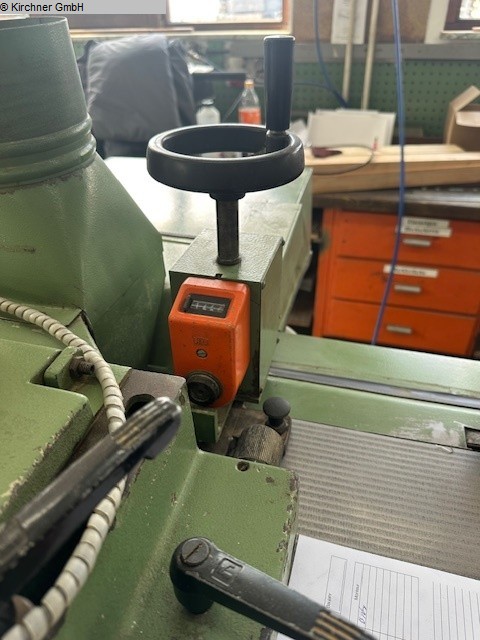

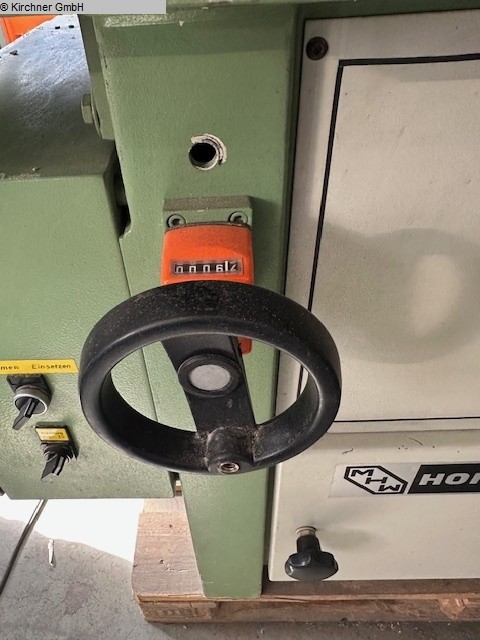

Electric height adjustment
electric swivel adjustment

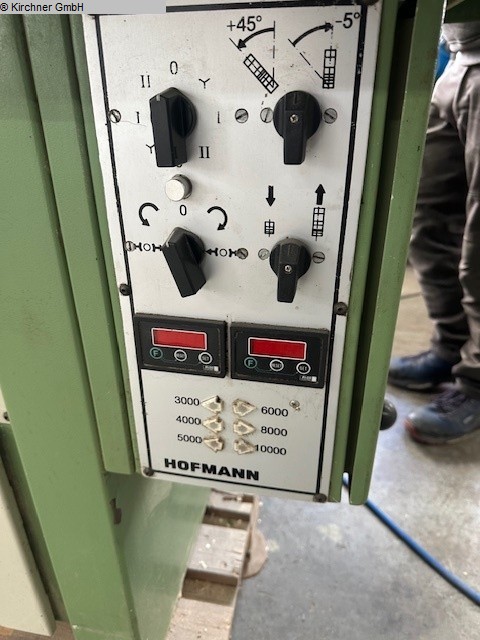

Digital displays for swivel angle - Spindle height
Extraction connection D 2x 120 mm
Space requirement approx. 2000 x 1600 x 1400 mm

Weight approx. 1000 kg
Storage location 97447 Gerolzhofen, free loaded, unpacked
Handover in as-is condition as inspected, function-tested
without overhaul,
without guarantee and warranty
