Description
Description:

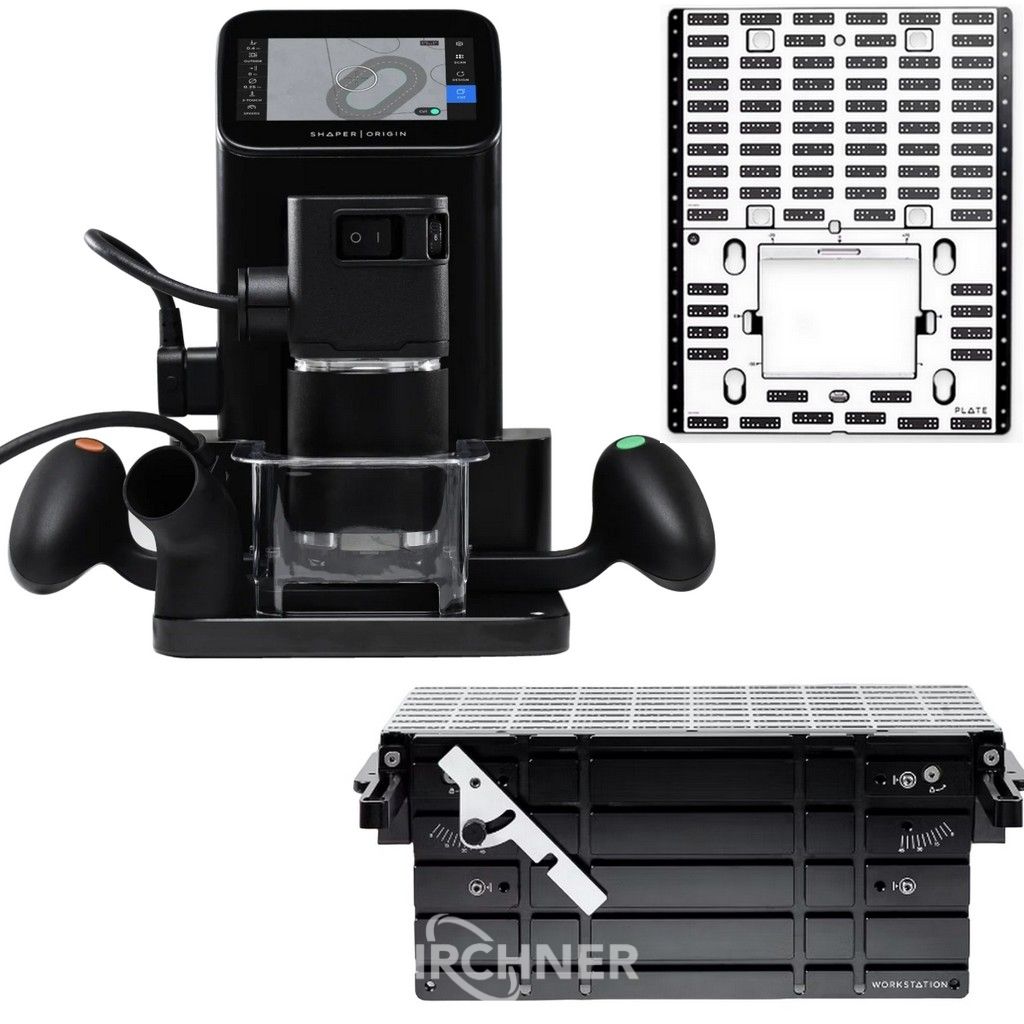

Shaper Origin
Shaper Origin is the world's first hand-held CNC router that allows you to easily integrate digital precision into your existing work processes.
Additional description:
Thanks to intuitive operation, automatic milling correction and on-tool CAD, it makes many processes in your workshop simpler, more precise and more efficient.
Create and edit projects directly via the touchscreen on the tool or import designs from your software.
Use Origin flexibly wherever you need it, whether in the workshop or on the construction site. Whether it's for embedding fittings, inlays or precisely fitting joints - Origin offers you a wide range of professional and creative application options.
Properties:
Developed for the woodworking trade, with a familiar form factor
Work on site on workpieces of almost any size
Design and mill perfect contours, connections and engravings
No CAD knowledge required
On-Tool Design
Automatic milling correction
Intuitive operation
8mm collet chuck allows the mounting of many milling cutters
Shaper Workstation
The efficient clamping device for Origin. Perfect for horizontal and vertical clamping of all workpieces. Align, fix and mill with repeat accuracy.
Workstation is the flexible and efficient clamping device with which you can realise even complex projects. Fix workpieces horizontally and vertically and create perfect finger joints and visible joints or clamp even small workpieces for secure machining.
With the workstation as a practical clamping device, even complex projects can be realised quickly and easily with the Origin.
Thanks to various fixing options, you can clamp workpieces securely and flexibly - both horizontally and vertically.
For example, you can mill perfect tenon or dovetail joints with little effort and bring even more speed to your work processes.
Or you can use the workpiece carrier to fix and process even small and narrow workpieces.
Simply attach the workstation to your workbench or use it as a mobile workstation. So you can use Workstation wherever you want.
Equipped with durable ShaperTape surface
Front panel with T-slots
Height-adjustable workpiece carrier
Ideal for tenons & grooves, finger joints and much more
Shaper Plate
The universal template for Origin.
With Plate, you have one device for all your work. Perfect for inserting different fittings, creating inlay work and rows of holes in System 32 and more.
Plate can be perfectly combined with the many digital fittings data from the ShaperHub fittings catalogue. Simply search for the desired fitting, synchronise with Origin and start milling immediately.
Robust ShaperTape surface
Various stops and crosshairs for alignment
Anti-slip mat on the back
Can be perfectly combined with the fittings catalogue
For fitting installations, repair work and filling pieces
Precise and repeatable milling
Scope of delivery:
Shaper Origin with Shaper SM-1 spindle
Shaper Systainer³ T-Loc
Two rolls of ShaperTape (45 m each)
Tool for changing the milling cutters
Reusable transport locks
USB A/C stick
3 mm spiral slot milling cutter
6 mm spiral slot milling cutter
60° V-groove cutter
1x Shaper Workstation
Base plate: With the ShaperTape surface, it is the core of the workstation and support surface for Origin.
Front plate: A versatile clamping device with T-slots, which is attached to the base plate at a 90° angle.
Workpiece carrier: A height-adjustable carrier for fastening small workpieces or workpieces that are difficult to clamp.
Hold-down clamps: T-slot clamps for versatile and secure fastening of workpieces.
Sacrificial strips: Sacrificial material (MDF) used to minimise tear-outs during milling.
Support bar: Extended support surface for Origin and help for the correct alignment of workpieces.
Support arms: Hold the support bar and thus Origin on one level with the ShaperTape surface.
Angle stop: Easily adjustable stop for simple alignment of a workpiece at the appropriate angle.
4 mm T-wrench: Hexagon spanner with T-handle for all standard screws on the workstation.
1x Shaper Plate
Technical data:
Shaper Origin
Height: 306 mm
Depth: 227 mm
Width: 339 mm
Weight: 6.75 kg
Shaper Workstation
Height: 250 mm
Depth: 465 mm
Width: 515 mm
Weight: 9.75 kg
Shaper Plate
Width: 362 mm
Height: 450 mm
Thickness: 6.45 mm
Weight: 2.04 kg
Width of the milling window: 160 mm
Height of the milling window: 120 mm
