Description
- NEW -
GENERAL FEATURES
Machine bed
Machine bed made of solid steel with generously dimensioned reinforcing ribs and load-bearing hollow body construction.
Work tables
Infeed table made of tubular steel construction with height adjustment via parallelogram system. Work tables made of low-friction and highly wear-resistant special cast iron, with interchangeable inserts in front of the vertical spindles.
Guided tours
Right inlet guide with cross adjustment via parallelogram system
with rebate cutter (tool not included). Right-hand guides with
easily adjustable segments that can be arranged in the most favourable position for the respective tool.

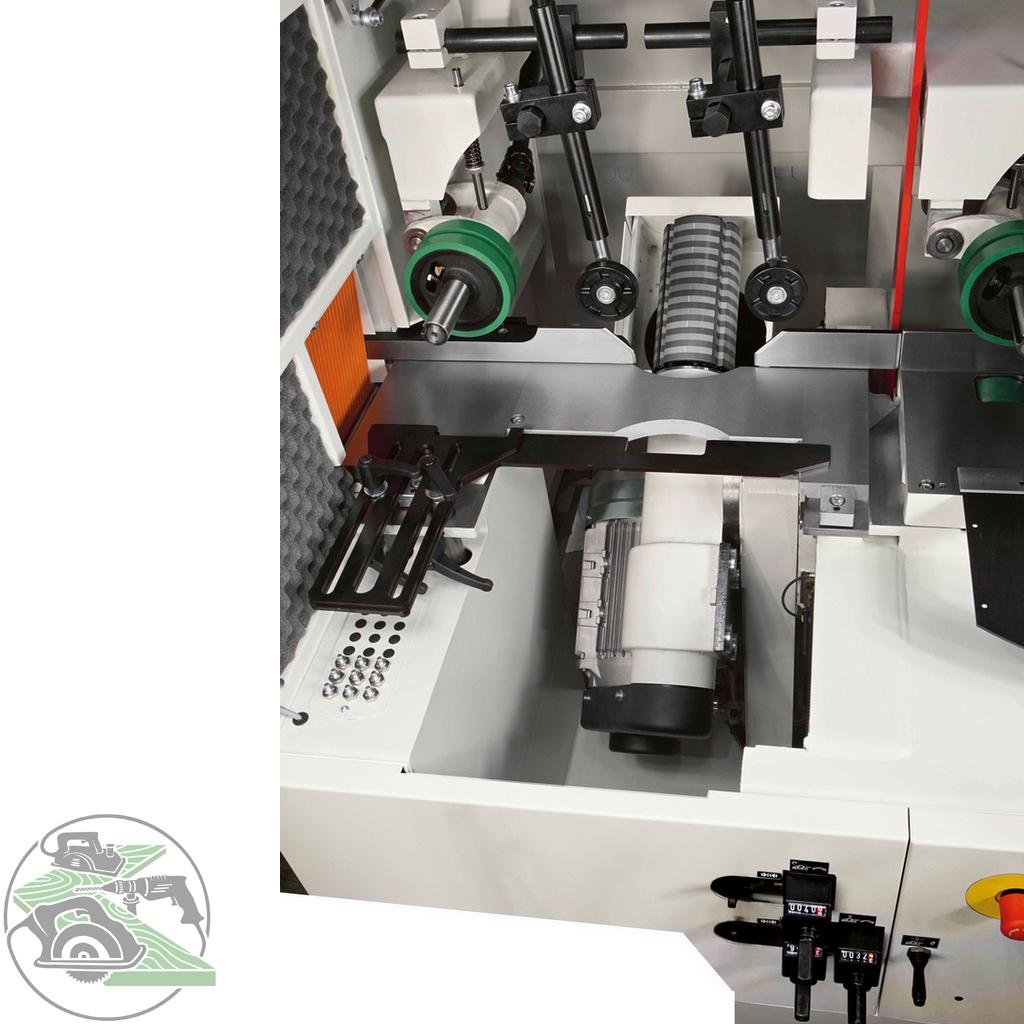

Spindles
Spindle sleeve made of cast iron with a diameter of 100 mm, with a pair of radial bearings 85 mm in diameter. Distance between the bearings 215 mm,
to ensure high torsional rigidity and precision.

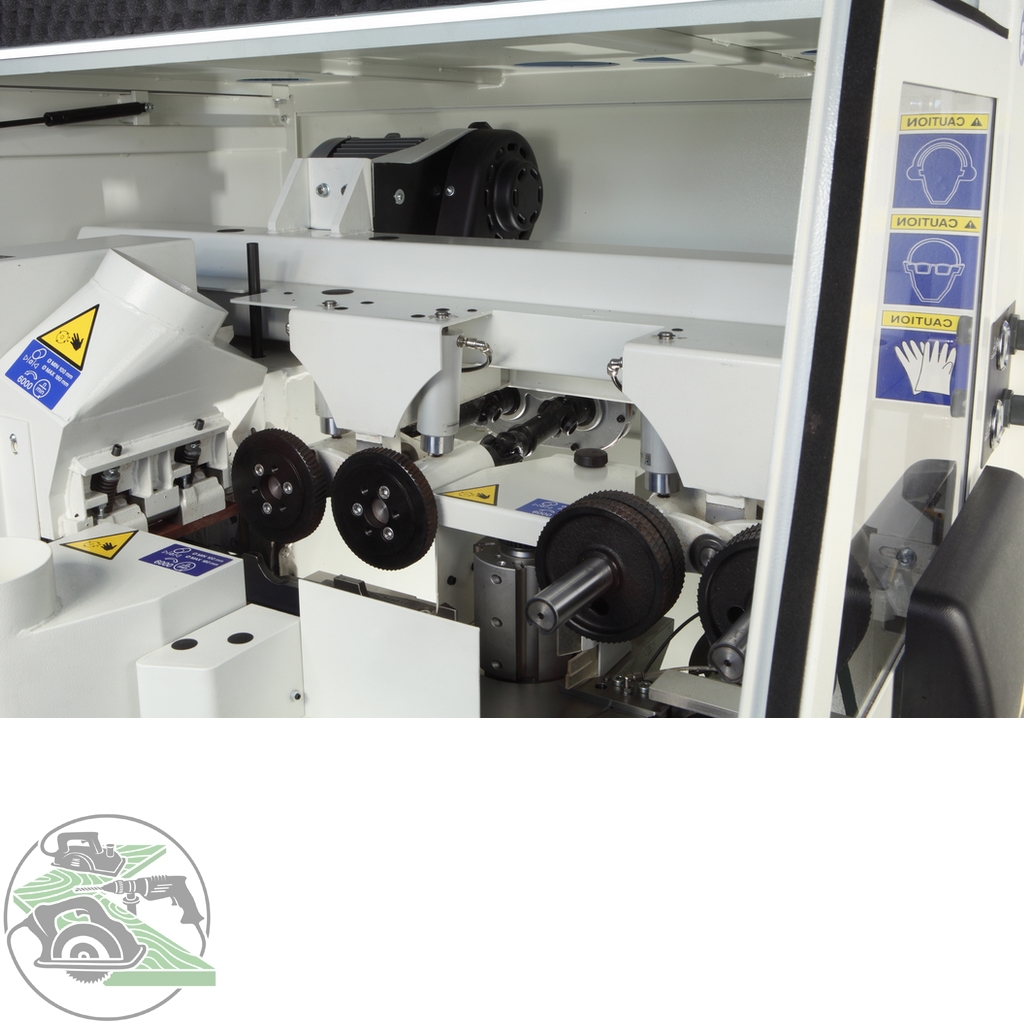

Workpiece feed system
The ribbed hollow beam that supports the feed system has
a manual adjustment for the height setting, or a
Automatic adjustment via numerical control. Stepless
Adjustment of the feed speed via inverter.
The movement is transmitted by the cardan shaft and
Gearbox. A idler roller in the outfeed table allows optimum feed for special machining operations. Spindles and feed rollers
are made of steel with a hardened surface and pneumatic pressure
via springs (standard).
