Description
- NEW -

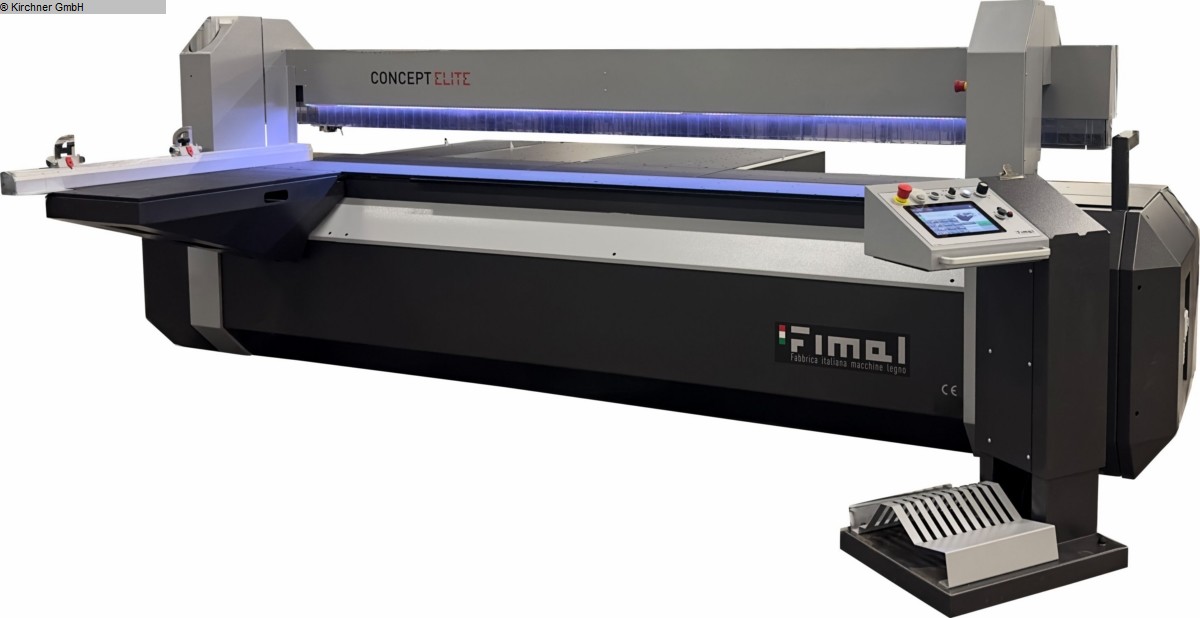

Concept 350 ELITE Partnership Edition
- Cutting length 3200 mm -
General equipment features:
- Aluminium machine and extension tables
- Saw unit can be swivelled up to 46°
- Pressure bar, incl. LED lighting with 3 different action colours:
WEISS: Machines at rest
RED: Pressure bar is lowering or emergency stop function
BLUE: Saw unit is travelling
- Variable support table 1,000 x 500 mm
- Scoring system with synchronised main saw blade
- Automatic workpiece length detection for minimised travel distances
- Mobile and height-adjustable control panel, incl.:
Saw blade stand, template holder, emergency stop button, start button, selector switch
Grooving/scoring saws/saws, feed speed rotary switch, switch
for laser (optional) and USB socket
Partnership Edition, incl.:
- Motorised width stop with 4 aluminium stops that move synchronously
All 4 stops move up to 1,300 mm. The table is approx. 2,000 mm long.
- Windows 10 screen control (10‘‘ touchscreen). The graphical user interface offers
the following functions:
Tool database, angle cut calculation at the length stop,
Cutting patterns can be created and saved, programmes can be saved on
USB can be saved, exported and imported.
- Telescopic fence extendable to 3,400 mm incl. 2 digital displays
Technical data:
- Max. Saw blade projection 350 mm
- Saw blade: 100 mm at 90° / 70 mm at 45°
- Saw blade: diameter 300 - 350 mm, bore 30 mm
- Saw blade rotation: 4,000 rpm.
- Motor: 5 kW (= 7.5 hp)
- Feed speed: 0 - 40 m/min.
- Total length: approx. 4,250 mm
- Weight: from approx. 1,300 - 1,700 kg (depending on cutting length and equipment)
- Required air pressure: 7 bar
- Suction nozzle: 1 x 100 mm, 1 x 120 mm
- Order no.: FIMAL379
included:
- Motorised width stop with 4 aluminium stops that move up to 2,100 mm instead of 1,300 mm.
Order no.: 47/17
- Cutting line laser
Order no.: 3410451
- Saw motor with 7.5 kW (10 HP) incl. automatic star-delta start-up
Order no.: 06/05+61/10
- Programmable saw blade height adjustment incl. height correction when swivelling the saw unit
Accessories available at an extra charge:
- Mitre fence can be swivelled +/- 50° with length compensation
Order no.: 3380132
incl. telescopic fence and folding fence
