Description
Description of the

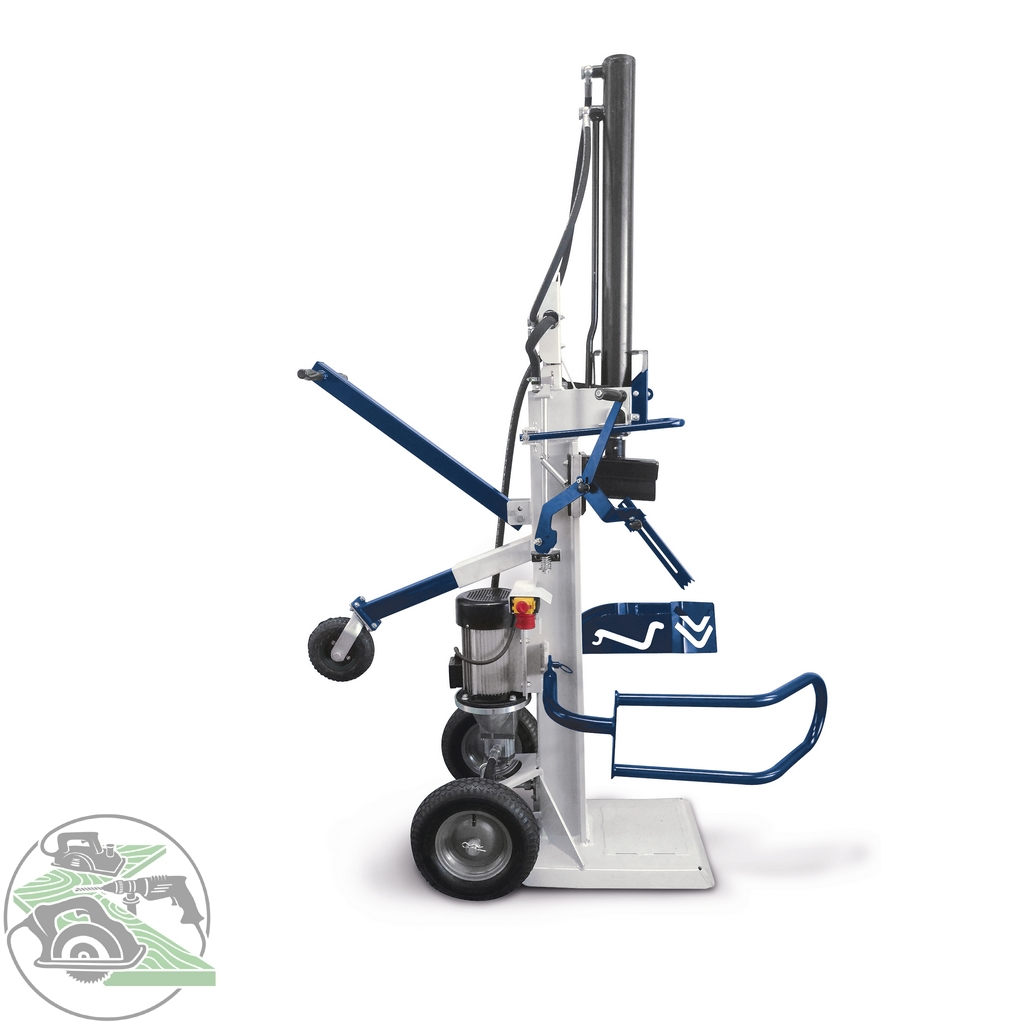

Hand drawbar
Chassis with extra large pneumatic wheels
Quick, tool-free gap height adjustment
Low base plate for easy, fatigue-free loading
large trunks
Mechanical log lifter and splitting stock holder
Two-hand safety circuit
Phase inverter for all 400 V models
Powerful industrial hydraulic system
Robust and solid construction
Impact and scratch-resistant thanks to high-quality powder coating

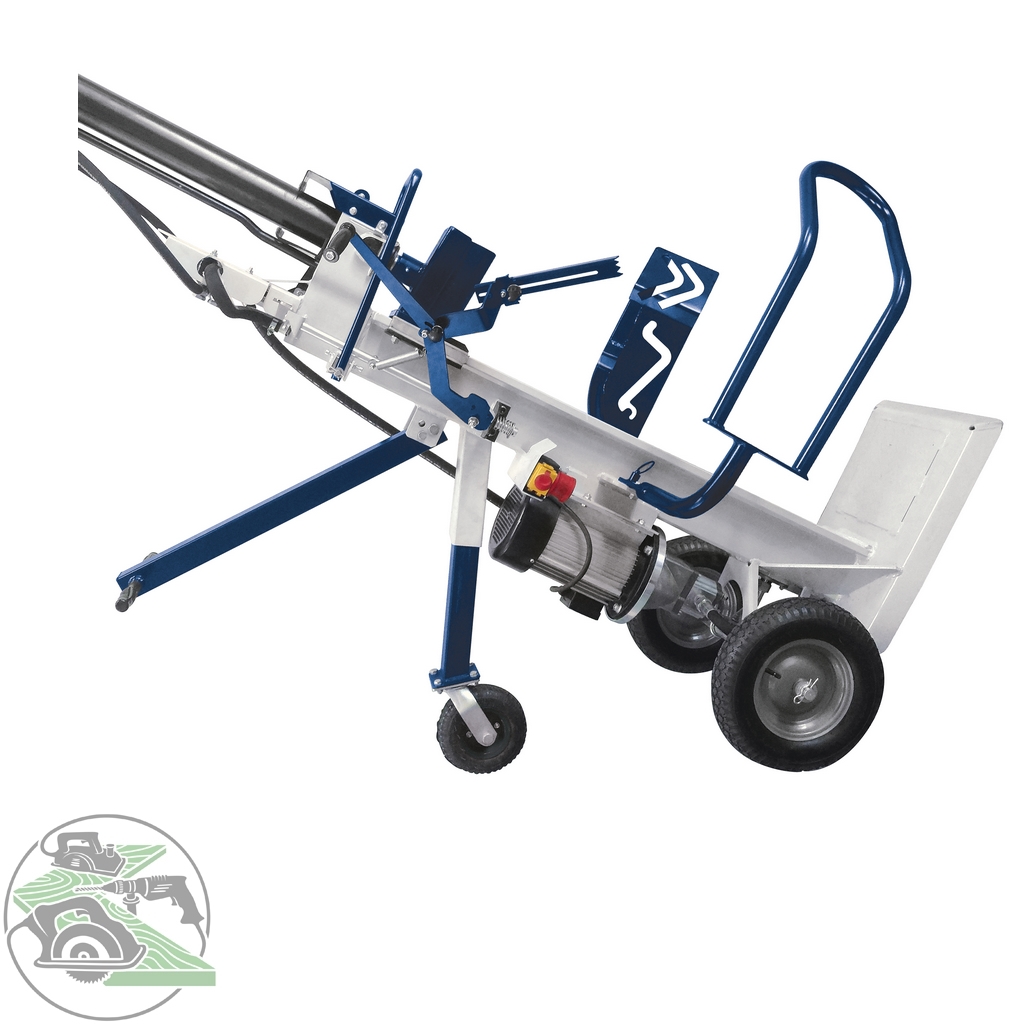

Convenient transport thanks to standard chassis with large wheels and additional support wheel
Cylinder can be lowered for space-saving storage
Technical data
Dimensions and weights
Length (product) approx. 1050mm
Height (product) approx. 2500 mm
Width/depth (product) approx. 1550 mm
Weight (net) approx. 296.5 kg
Drive
Drive type Electric motor Input power 5.1 kW
Electrical data
Supply voltage 400V
Current type AC
Phase(s) 3Ph Mains frequency 50 Hz
Device data
Splitting force max. 23.4 t
Slit material diameter min. 80 mm
Cylinder stroke max. 948 mm
Slit material diameter max. 350mm
Gap length min. 560mm
Feed speed(s) 43 - 105 mm/s
Gap length max. 1100 mm
Return speed 75 mm/s
Noise emission
Sound pressure level = 80 dB(A)
