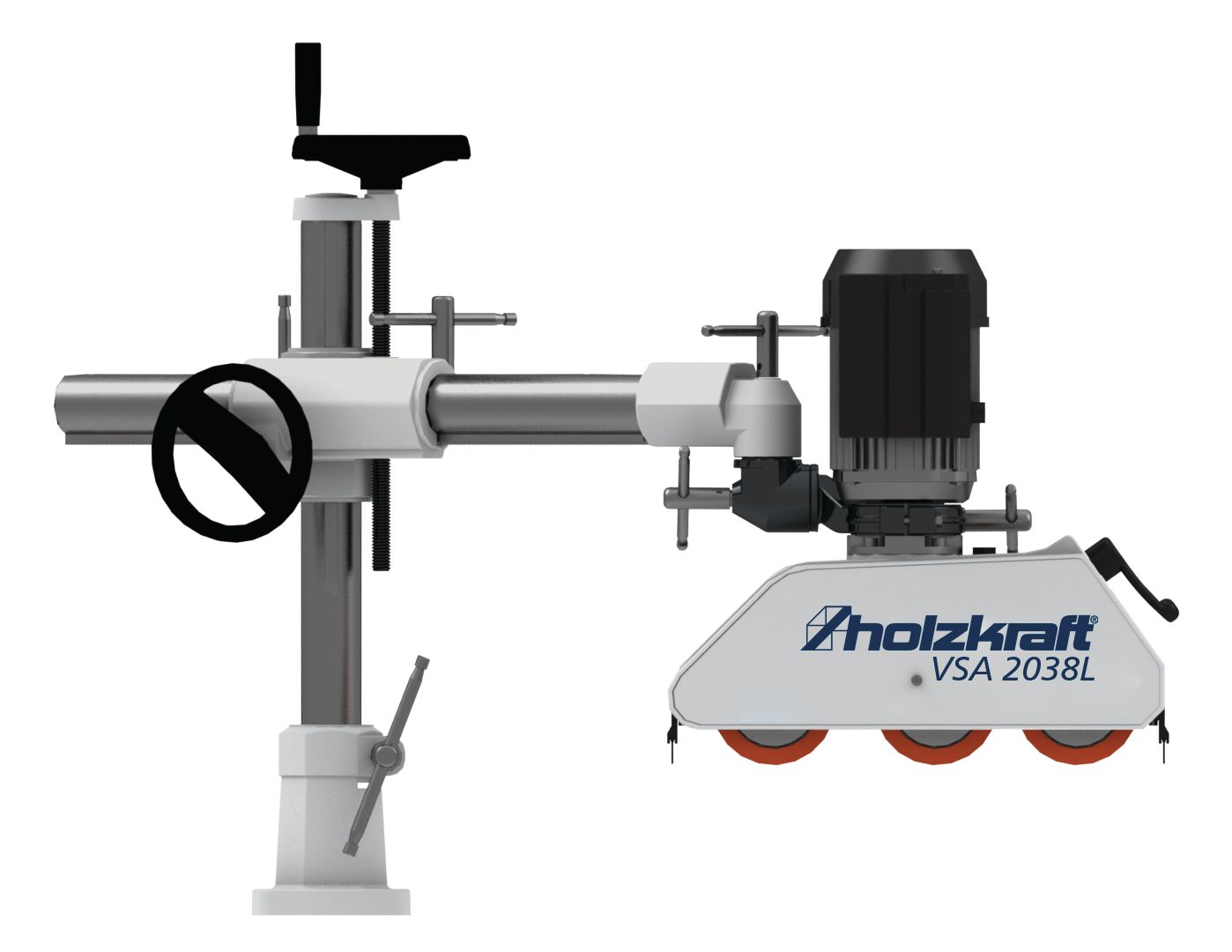

Feeder
- Article No. 1326-52870
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | Wood power |
|---|---|
| Model | VSA 2038 L |
| Item number | 1326-52870 |
| Category | Milling - Feed units › Feeders |
Description of the
- NEW -
- Consistent feed speed
without loss of strength
- Clockwise and anti-clockwise rotation
- Including tripod, individually swivelling and adjustable
For horizontal and vertical use
- Eight speeds possible,
Speed selection via switch
and gearboxes
Technical data:
- Number of feed rollers: 3
- Speed levels: 8
- Roller diameter: 120 mm
- Spring travel of the castors: 20mm
- Feed rate:
2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33m/min
- max. projection : 1050 mm
- Roll width: 60 mm
- Length approx: 1524 mm
- Width/ depth approx: 220 mm
- Height approx: 540 mm
- Explanation Weight: including tripod
- Drive motor cable 0.75 kW
- Mains frequency: 50 Hz
- Supply voltage: 400 V
- Weight: 69.5 kg
Item no. 5119038
