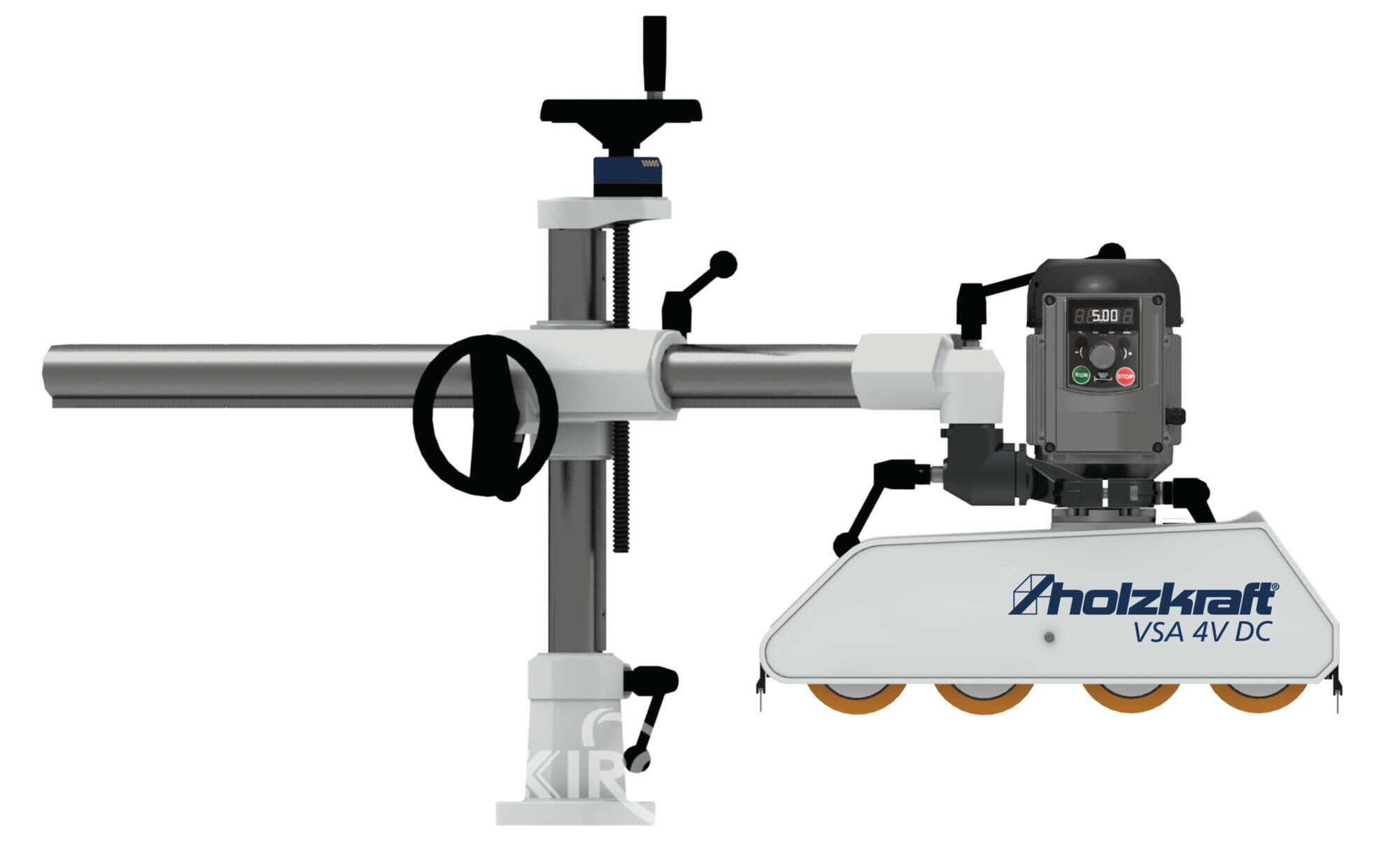

Feeder

- NEW -

- Consistent feed speed without loss of power
- Clockwise and anti-clockwise rotation
- Includes stand PLUS with high-quality clamping levers and counter, individually swivelling and adjustable for
horizontal and vertical use
- Speeds from 0.5 to 25 m/min continuously adjustable via rotary knob and digital display
- Speed transmission through conical pulley belt drive

Technical data

General information:
- Number of feed rollers 4pcs
- Feed speed 0.5 - 25m/min
- Stepless speed control
- Projection max.1050mm
- Roller diameter 120mm
- Roll width 60mm
- Spring travel of the castors 20mm

Dimensions and weights:
- Length (product) approx. 1670mm
- Width/depth (product) approx. 220mm
- Height (product) approx. 540mm
- Weight (net) approx. 78.5kg
- Explanation Weight (net) approx. including tripod

Electrical data:
- Drive motor power 0.75kW
- Supply voltage 400V
- Mains frequency 50Hz

Order no.: 5119114
