Description
- NEW -
- Consistent feed speed without loss of power
- Clockwise and anti-clockwise rotation

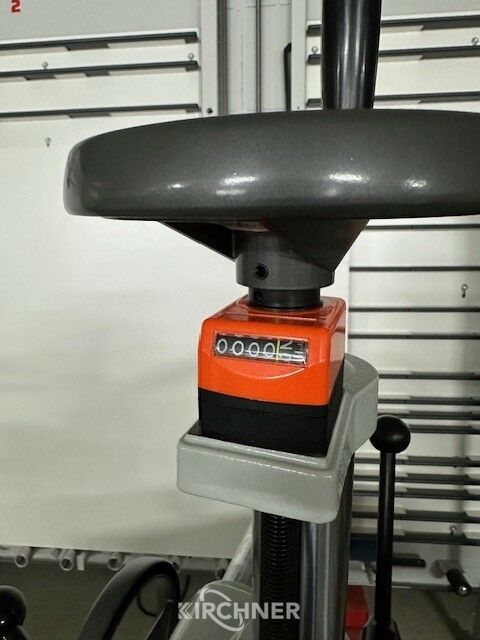

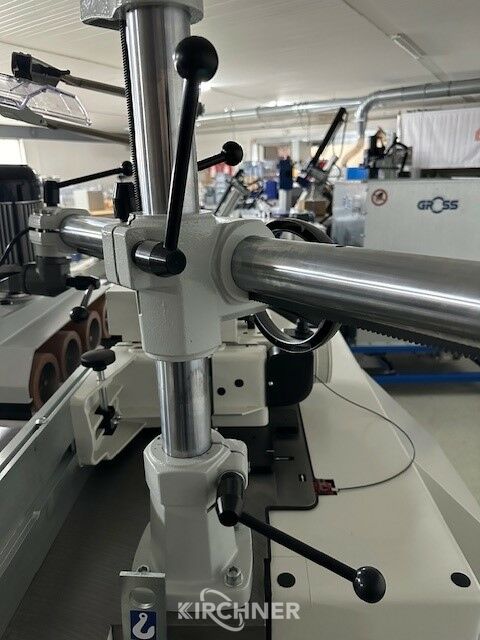

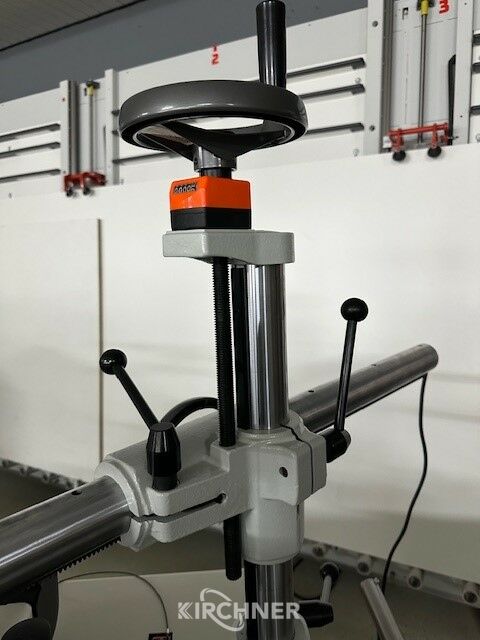

- Includes stand PLUS with high-quality clamping levers and counter, individually swivelling and adjustable
For horizontal and vertical use
- Eight speeds possible, speed selection via switch and change gearbox
Technical data:
General information:
- Number of feed rollers 4pcs
- Feed speed 2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33m/min
- Speed levels 8
- Projection max.1050mm
- Roller diameter 120mm
- Roll width 60mm
- Spring travel of the castors 20mm
Dimensions and weights:
- Length (product) approx. 1665mm
- Width/depth (product) approx. 220mm
- Height (product) approx. 540mm
- Weight (net) approx. 75.5kg
- Explanation Weight (net) approx. including tripod
Electrical data:
- Drive motor power 0.75kW
- Supply voltage 400V
- Mains frequency 50Hz
Order no. 5119049
