Description
DESCRIPTION
- For horizontal and vertical use

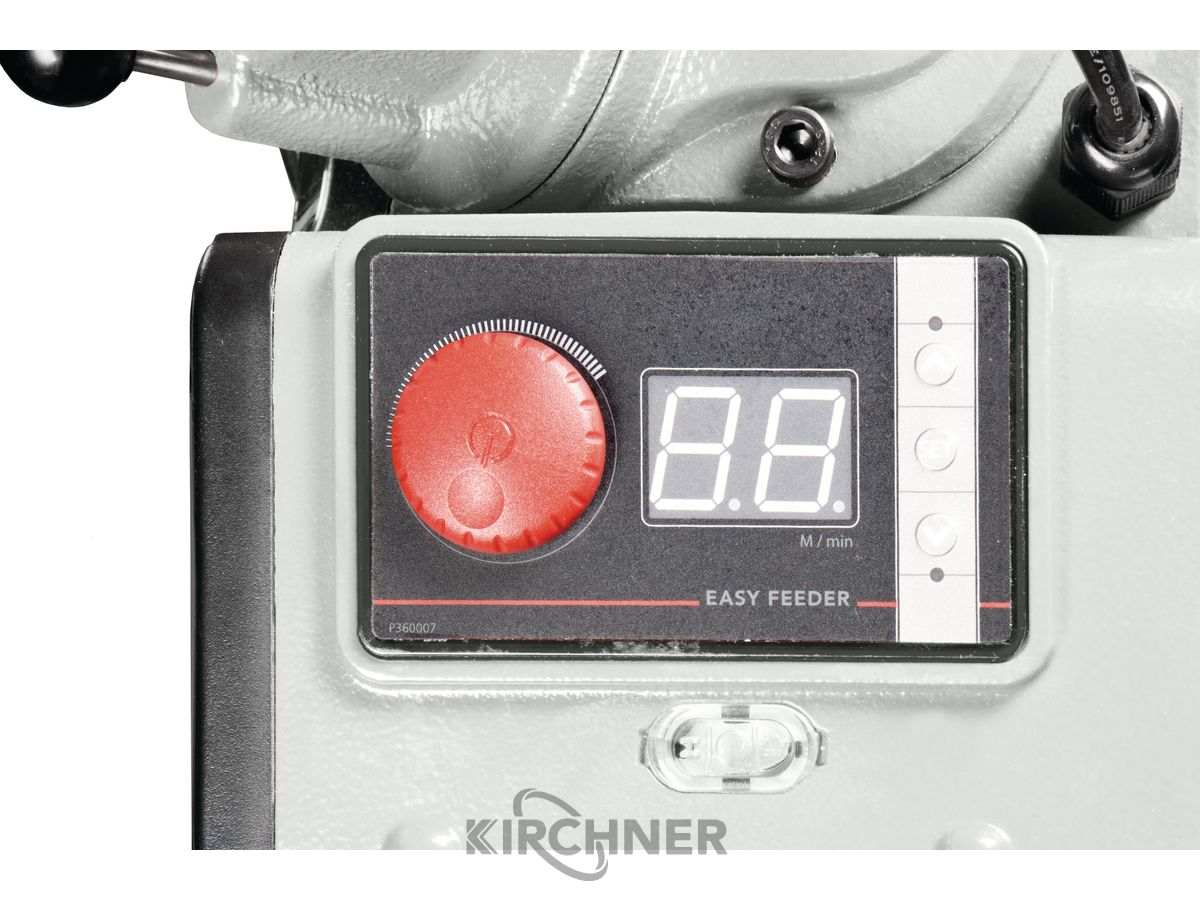

- Infinitely variable feed speed, also possible under load
- With clockwise/anticlockwise rotation as standard
- Quick and easy swivelling away thanks to the MEMO-LOCK system
- Quick 90°/180° adjustment thanks to AUTO-LOCK system
- Durable polyurethane feed rollers
- Stand with extended extension arm as standard
- Metal housing
Equipment details
- With clockwise/anticlockwise rotation
- Easy adjustment with 90°/180° comfort stand with
AUTO-LOCK system

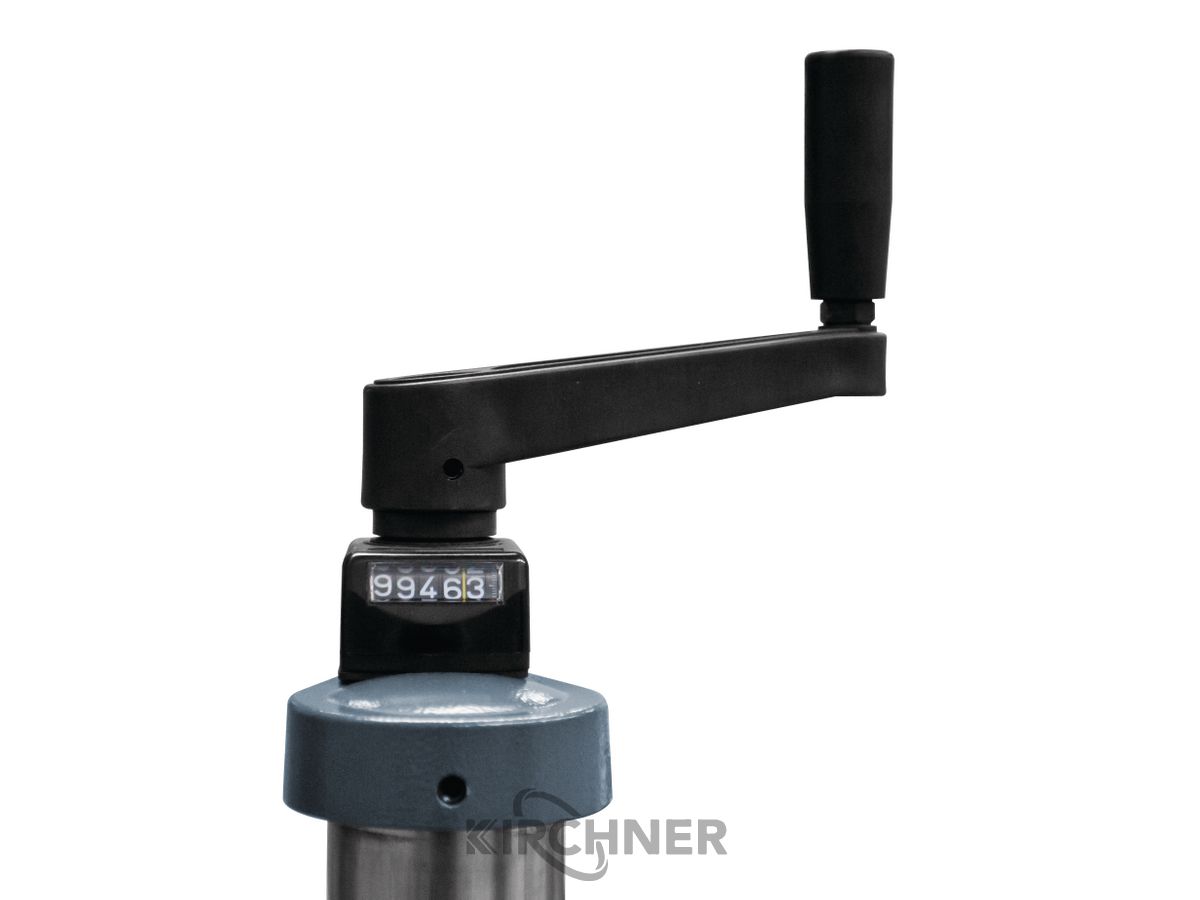

- Feed units with counter for height adjustment as standard
- Quick clamping lever
- with particularly robust and solid tripod clamp for maximum
Stability in daily use (VSA 300 DC, VSA 400 DC)
- Swivelling device Working with the machine
- The feed unit is mounted on a cantilever arm, which can be
can be swivelled.
- By swivelling the extension arm over the right-hand side, the
the entire work surface of the machine can be utilised without
The feed unit does not have to be laboriously dismantled.
TECHNICAL DATA
General information
Number of feed rollers 4 pcs
Roller diameter 120 mm
Feed speed 2 - 22 m/min
Roll width 60 mm
Infinitely variable speed levels
Spring travel of the castors 18 mm
Max. projection 1050 mm
Dimensions and weights
Weight (net) approx. 67.5 kg
Drive power
Drive motor power 0.375 kW
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
