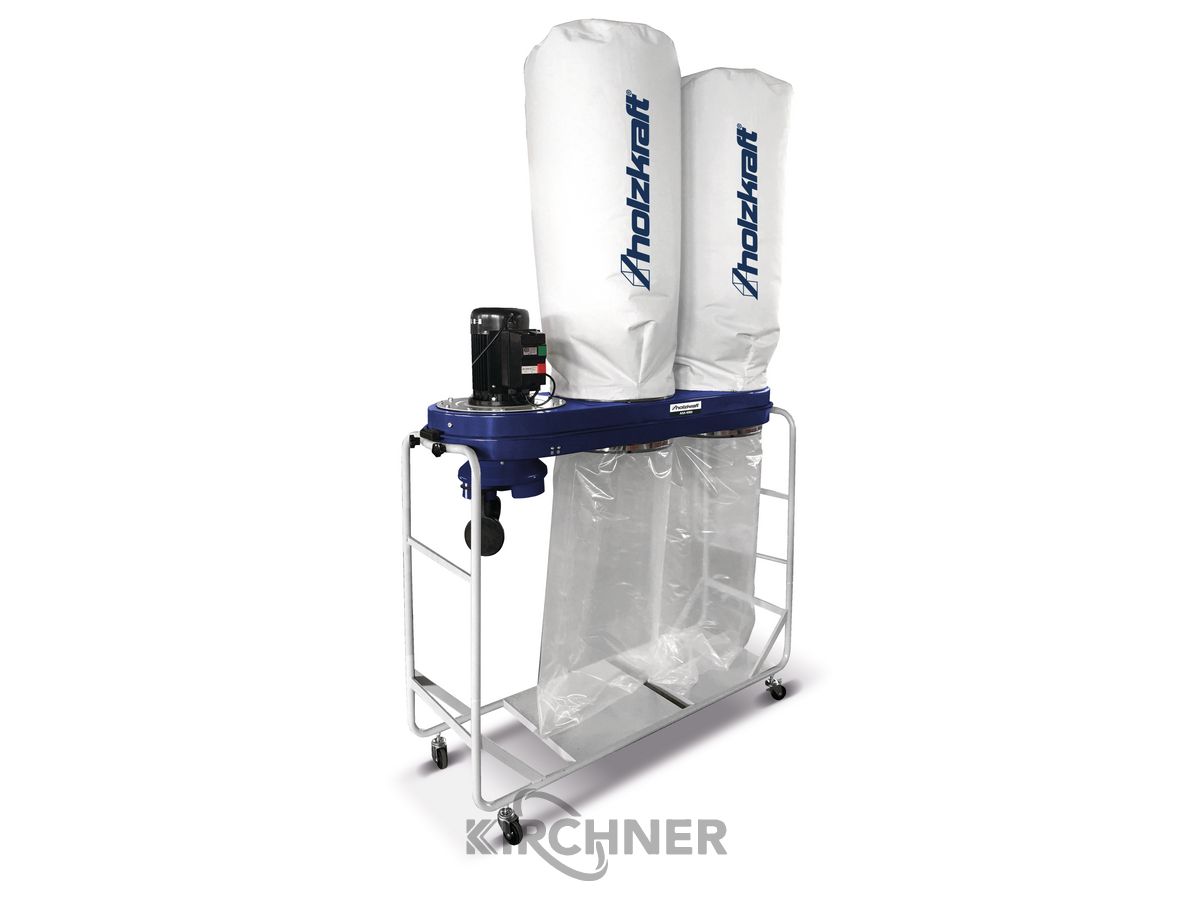

Extraction system

- NEW -

- For milling, planing and sawdust (not suitable for dust)

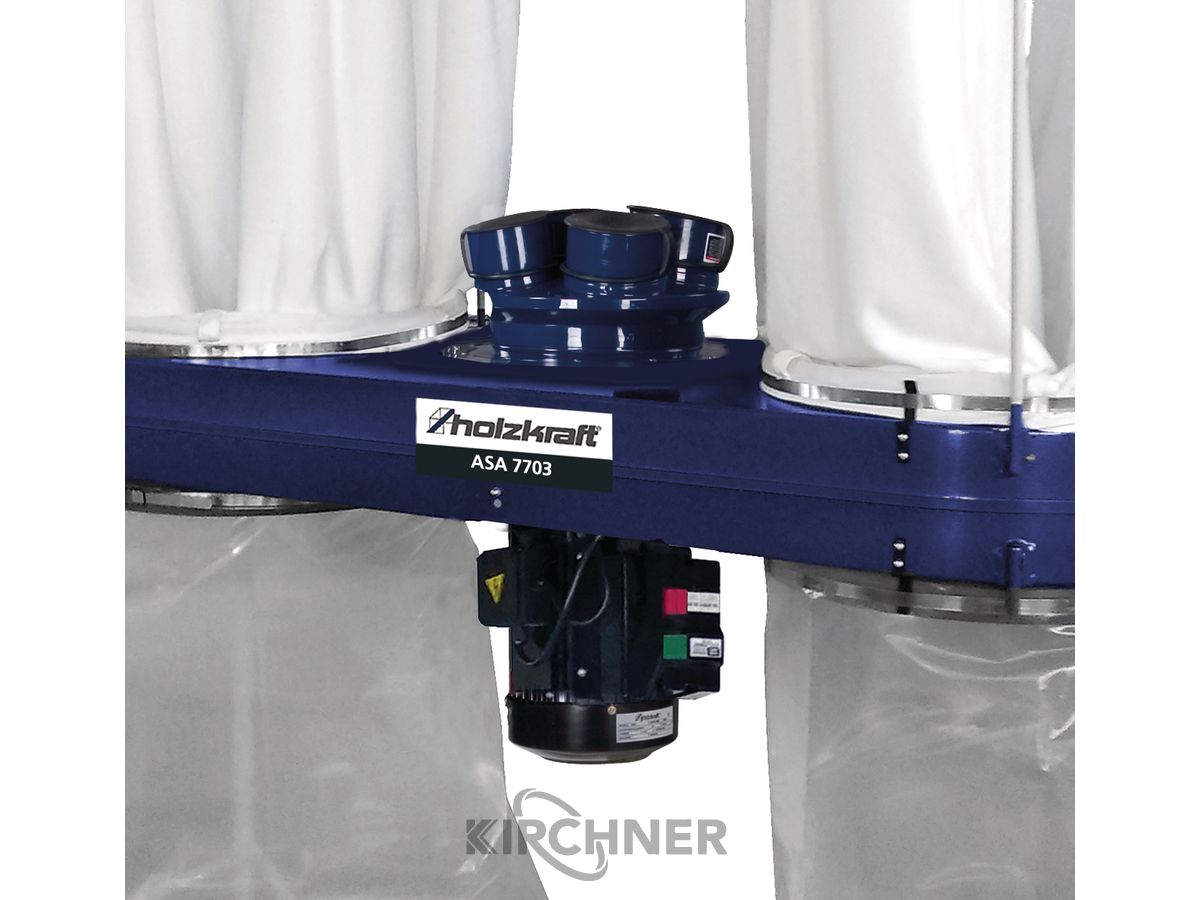

- Suction unit can be rotated through 180° to enable suction guidance
from below or above
- Sturdy metal fan wheel
- With high-quality running gear as standard for improved stability and
Easy manoeuvring
- Quick-release fasteners for filter and chip bag
- Fine filter bag double woven

Dimensions and weights
Length (product) approx. 1700 mm
Chip collection volume 2 x 215 litres
Width/depth (product) approx. 600 mm
Nominal width external suction nozzle inlet 260 mm
Height (product) approx. 2400 mm
Nominal size external suction connection outlet 2 x 100, 2 x 120 mm
Weight (net) approx. 69 kg

Electrical data
Idle speed 2950 min¯¹
Input power 3.8 kW
Supply voltage 400 V
Output power 3 kW
Mains frequency 50 Hz

Filters
Filter area 2 x 2.4 m²

Noise emission
Sound pressure level max. 89.9 dB(A)

Volume flow
Nominal volume flow 4300 m³/h
Negative pressure max. 2000 Pa

SCOPE OF DELIVERY
Two filter bags, two chip bags
