Description

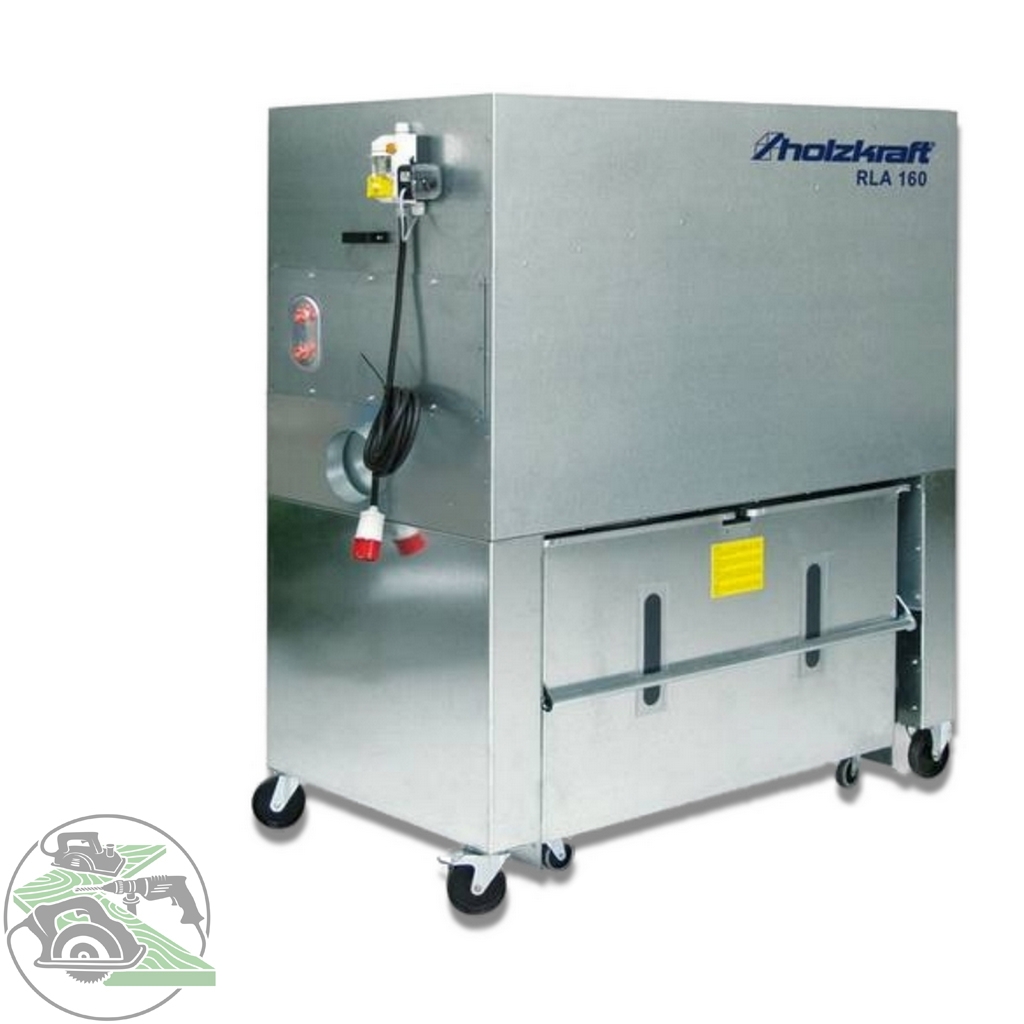

Clean air extraction system
- NEW -
Make Holzkraft
Type RLA 160
Description:
- For wood chips. Designed for commercial use.
- All clean air extraction systems in this series are dust-tested
according to H3, residual dust content less than 0.1 mg/m³
- High extraction performance with low space requirements
- Maximum performance in this class
- Very quiet
- All models with collision protection
Field of application:
- Clean air extraction systems for wood chips
- Designed for commercial use
- For all woodworking machines with
corresponding suction nozzle diameter
High-quality, well thought-out design:
- Robust and compact housing made of galvanised steel
Sheet steel
- Suction nozzle easily from left to right
Convertible, therefore flexible in use
- Large inspection openings
- Large, mobile chip containers with
Clamping bracket and chip bag
- System already fully assembled on delivery,
can therefore be used quickly
- All models mobile
Description of the filter:
- Ultra compact with maximum filter area
- Filter material made of polyester fleece, aluminised,
Washable and therefore with a long service life
- Antistatic filter as standard
Tested and approved according to category M-BIA
- Filter resistance monitoring via differential pressure box,
Adjustable with warning light on the switch box
- The fan is connected downstream of the filter
Equipment details:
- All systems in this series are dust-tested to H3,
Residual dust content below 0.1 mg/m³
- With innovative locking device for secure
Container positioning
Scope of delivery:
- Metal fan wheel
- Inspection opening for cleaning the bypass filter
- Connection cable 5 m with 5-pin CEE plug and phase inverter
- 2 fixed and 2 swivel castors with parking brake
- Manual cleaning
Technical data:
Intake manifold diameter 160 mm
Nominal volume flow 1448 m³/h
Max. Volume flow 2400 m³/h
Negative pressure at Vnenn 2247 Pa
Filter area 9.21 m²
Filter material M
Residual dust content < 0.1 mg/m³
Chip collection volume 2 x 165 litres
Mains voltage 400 V
Mains frequency 50 Hz
Rated motor power 2.2 kW
Sound pressure level 73 dB(A)
Length 1755 mm
Width/depth 830 mm
Height 1654 mm
Weight 267 kg
Axis of suction nozzle to floor 827 mm
Number of containers 2
Manual filter cleaning
Filter surface load 157 m³/m²/h
Item no. 5131620
Storage location 97447 Gerolzhofen
- free loading-
