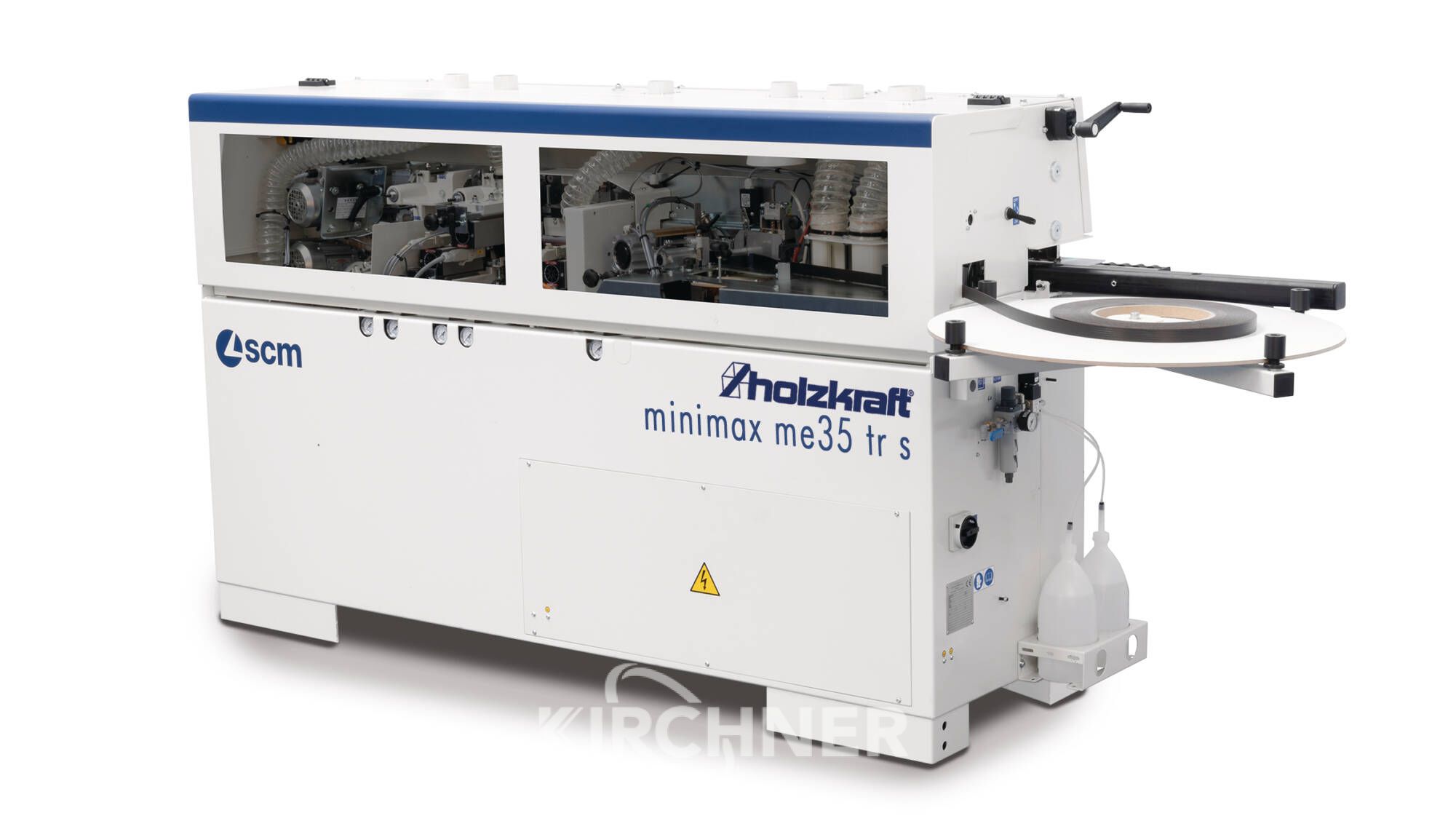

Description:

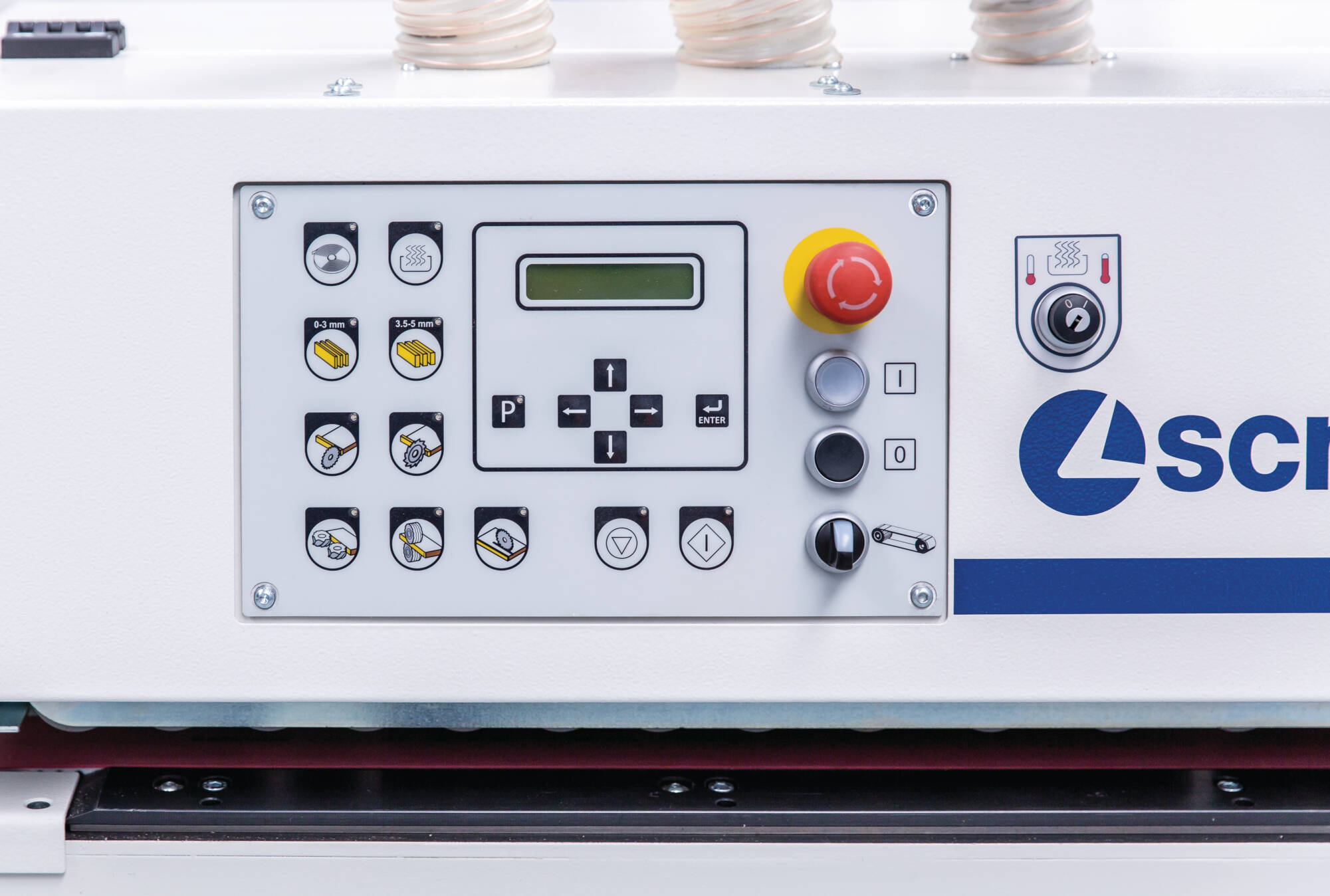

- Convenient and simple control of all important
Functions via control panel on the front
- Excellent accessibility to the work units
thanks to a large bonnet that provides additional
and noise reduction
- Precise and proven power units enable optimum
Processing and perfect finishing of the edge
- Pre-milling unit equipped with two slide cutters
- High-frequency motors for edge processing
- Equipped with radius and surface scraper as standard
- Optionally either by buffing or
Grooving unit with groove width max. 4.0 mm expandable
- For customisation to individual requirements
Available in various equipment variants
- Automatic temperature reduction of the gluing unit
if the machine runs idle for a long time

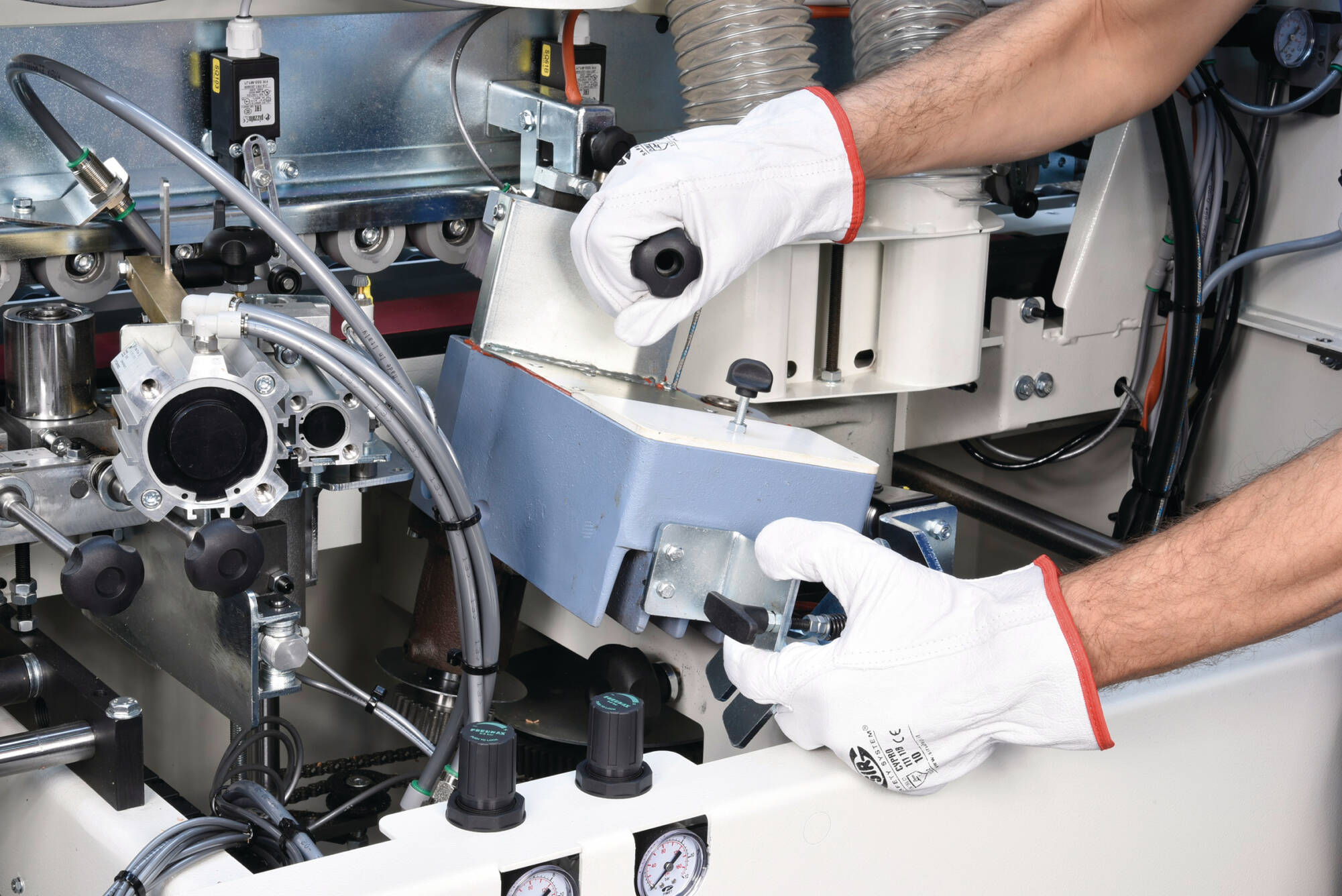

- Standard equipment with aluminium glue container
for EVA hot melt adhesive
Technical data:
Dimensions and weights
Length approx. 3314 mm
Height approx. 1300 mm
Width/depth approx. 1085 mm
Weight approx. 545 kg
Flush radius milling unit
Flush radius trimming unit Input power 2 x 0.35 kW
Flush radius milling unit Milling cutter speed 12000 min¯¹
Flush radius milling unit Milling cutter diameter HM 55.3 mm
Flush radius trimming unit Suction nozzle diameter 2 x 60 mm
Corner copying unit
Corner copying unit Input power 0.35 kW
Corner copying unit Speed 12000 min¯¹
Corner copying unit Tool diameter 58 mm
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
Gluing unit
Glue basin Input power 0.18 kW
Glue tray Suction nozzle diameter 60 mm
Glue basin working temperature 190 °C
Glue tray filling quantity 0.8 kg
Pneumatic connection
Operating pressure 6.5 bar
Feed rate
Feed input power 0.55 kW
Feed speed 7 m/min
Edges
Edge thickness of rolls 0.4 - 2.0 mm
Edge thickness of strips 0.4 - 3.0 mm
Pre-milling unit
Pre-milling unit input power 2.2 kW
Pre-milling unit Diamond milling cutter diameter 80 mm
Pre-milling unit Material removal 0.5 / 1 / 1.5 / 2 mm
Pre-milling unit Milling cutter speed 9000 min¯¹
Pre-milling unit milling cutter height 56 mm
Pre-milling unit Suction nozzle diameter 2 x 80 mm
Scraper units
Radius scraper 2 mm
Buffing unit
Buffing unit input power 2 x 0.14 kW
Buffing unit speed 2800 min¯¹
Workpiece
Workpiece thickness 8 - 50 mm
Workpiece width min. 110 mm
Workpiece length min. 120 mm
Item no. 5507136
