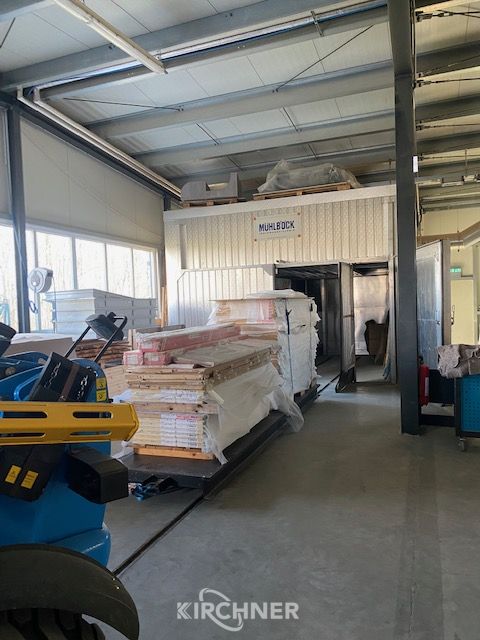

Drying chamber

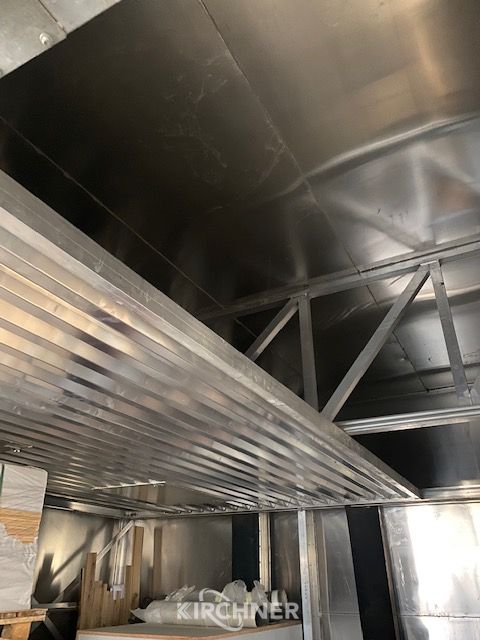

Drying chamber with false ceiling ventilation and frontal trolley loading
for the production and conditioning of 3 mm oak lamellas, with initial moisture content of 12 to
max. 15 % / final humidity 7 %

used, good condition
Make Mühlböck
Type ZSWM2110-1180-0500-11-000C – 1.0 l/h at 40°C via 30 % HF
Year of construction 2013

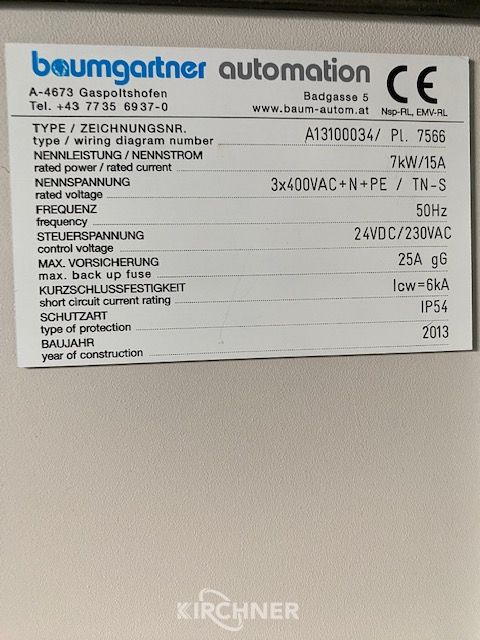

Rated power 7 kW/15A
Frequency 50 Hz
Control voltage 24VDC/230VAC
Protection class IP54

Contents:
the chamber summarises
- 2 packets, each 1.10 m wide - with a 0.20 m gap between each packet
- 1 packet 1.80 m high - with 0.10 m thick base timbers and a 0.10 m high free space
- 2 pacts, each 2.20 m long - plus 0.60 m free space

The chamber contains 4 pallet loads and has a gross total volume of 17.4 m².
The chamber holds 4 m³ of timber – with a timber thickness of 3 mm and a stacking batten thickness of 10 mm
and 90 % width utilisation for edged timber.

Usable dimensions of each chamber: width 2.40 m x height 2.30 m x length 5.00 m

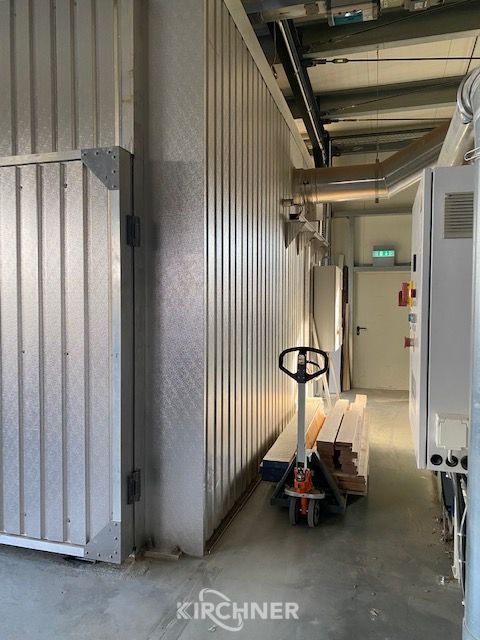

- Aluminium cassette construction
- Aluminium frame
- Dimensionally stable rock wool insulation
- Aluminium trapezoidal sheet
Snow load 100 kg/m^2

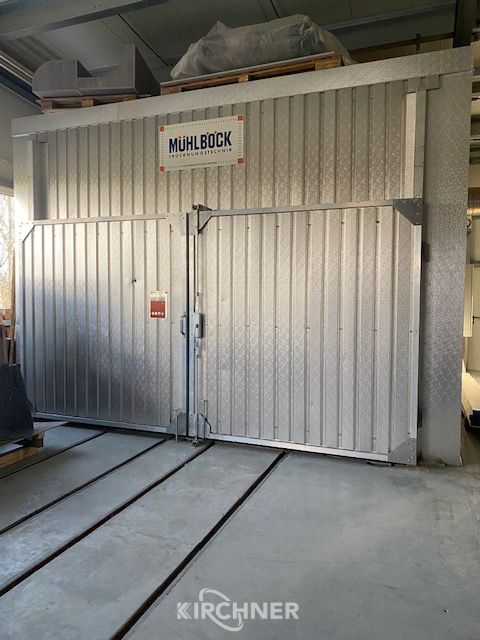

- 2-leaf swing gate

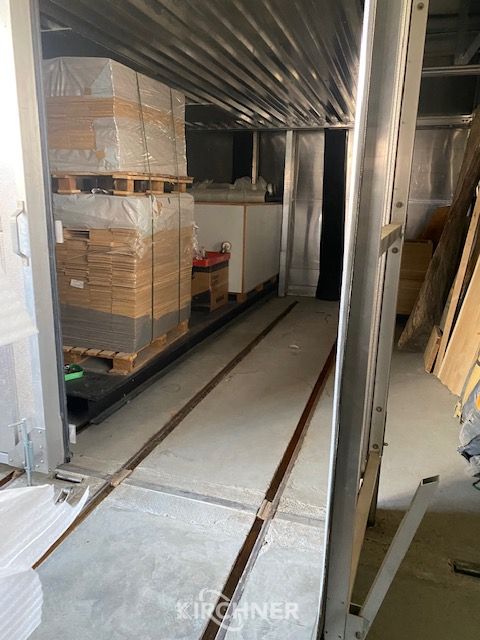

- Front loading
- 2 fans 3 kW each (D=800 mm)
– Stainless steel/aluminium finned tube heat exchanger with 50 kW, flow temperature of 80 °C, return temperature 73°C
- Servo-controlled supply and exhaust air dampers
- Cold water spraying
- Chambers work fully automatically

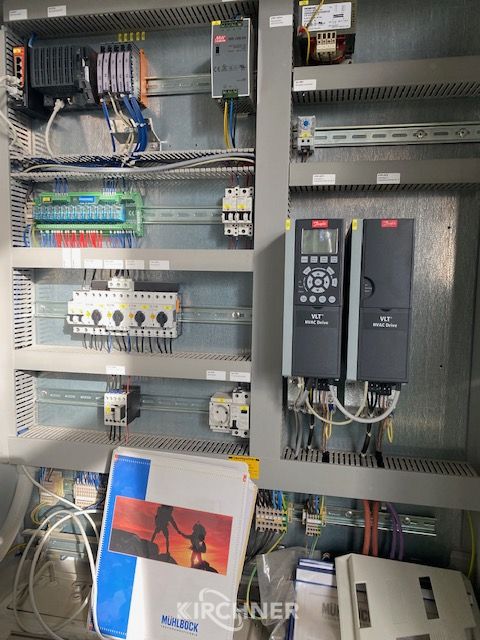

- Computer control K5

Dismantling: Customer location
Handover in actual condition as inspected
without guarantee and warranty
