Description
- NEW -

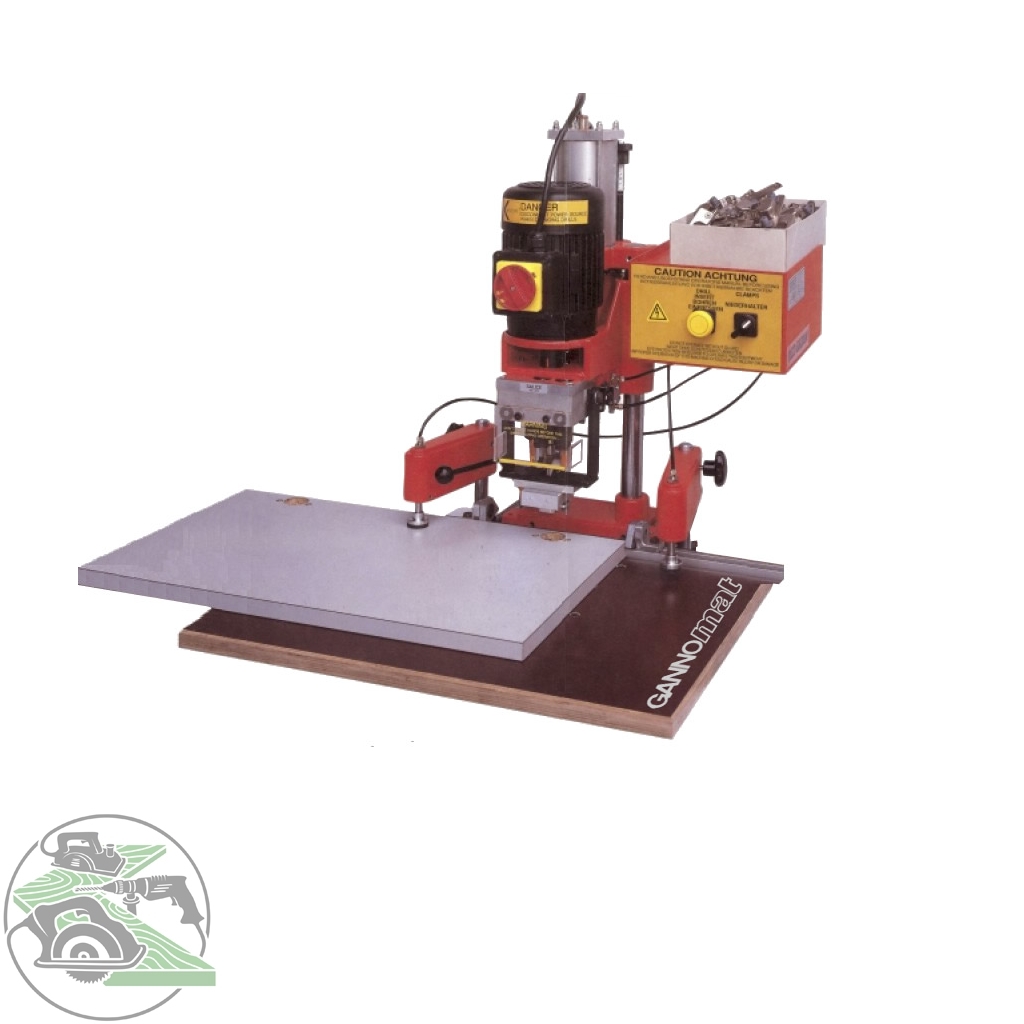

DRILLING AND PRESS-IN MACHINE
GANNOMAT "RED BARON - P" (Model 204)
400V, 3Ph, 50Hz / 1.1 kW
Complete in standard version with exchangeable drill head with:
- 1 drilling unit with pneumatic feed and pneumatic brake,
- Motor 1.1 kW
- 1 4-spindle drill head (pitch according to hinge pattern)
- 1 press-in bracket with press-in mould (according to hinge pattern)
- 1 stop ruler 600 mm
- 2 swivel stops with clamping lever
- 1 worktop 600×400 mm
- 1 pair of pneumatic hold-down devices
- 1 Intermittent electrical operation
- 1 set of drill bits:
- 1 carbide cup drill, Ø 35×57 mm, right
- 2 carbide dowel drill bits, Ø 8×57 mm,
or
- 2 carbide dowel drill bits, Ø 10×57 mm, left
