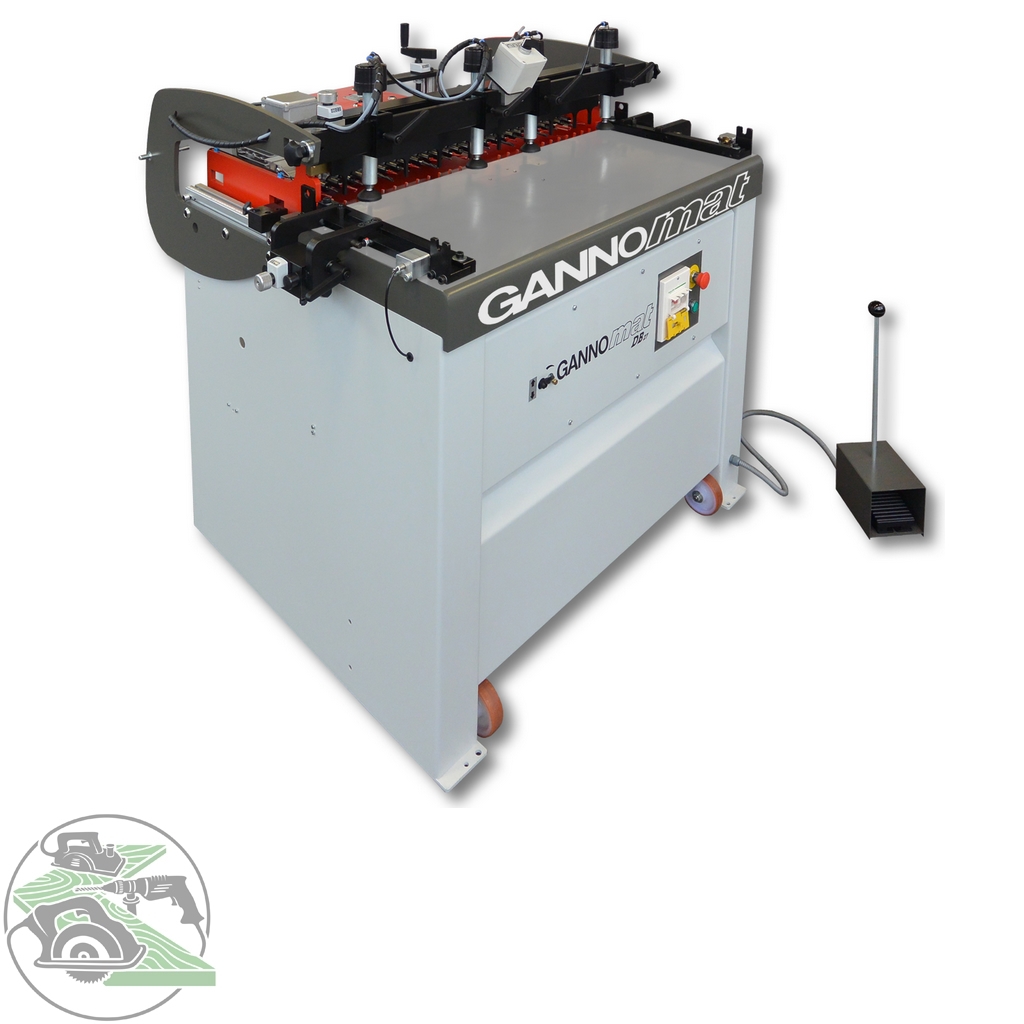

Description
- NEW -
complete in standard version with:
- Fully automatic electronic control with pulse operation via foot valve
Clamping-drilling-unclamping, electric intermittent operation.
- Automatic return of the drilling unit after reaching the set speed.
Drilling depth
- Automatic drill hole depth extension for face drilling
This eliminates the need to change the drill hole depth from flat-sided to
front holes (+ 10 mm e.g. for dowel length 35 mm, drilling depth
Flat side 14 mm and drilling depth front side 24 mm)
- 1 drill beam with 21 spindles, pitch 32 mm, motor 1.5 kW (drill feed
0-70 mm).
incl. 21 pcs. quick-change chuck (Ganner system) for simple
Changing the drill bits
- Simple swivelling of the drilling unit from 0° to 90°, supported by
Gas cylinder
- 1 clamp carrier movable in Y-axis with 3 pneumatic clamps
Clamping cylinder, for workpiece heights up to max. 80 mm
- Ideal stop system consisting of:
- 1 stop ruler 1800 mm for drilling intermediate shelves,
(40×40 mm aluminium profile) with 3 drop-in stops,
with quick-change system, easy to change from right to left
Stop side for mirror-image drilling
of intermediate shelves in carcase constructions, can also be used for
Hole line drilling in system 32
- side stops and position settings, as well as the position of the
Drilling height via support table using mechanical digital counters
- Side stops can simply be swivelled off, for the shortest possible
Conversion from body to frame and hole line drilling
- Clamping arms for clamp carriers designed for hole row position up to max.
300 mm.
- Ideal three-stage mould system
Technical data:
Drill head 21 spindles, pitch 32 mm
Working width 640 mm
Gantry passage approx. 750 mm
Drill feed 0-70 mm
Position adjustment drilling unit 0-40 mm
Position adjustment Hole line 0-300 mm
Spindle speed 2800 rpm.
Shank diameter of the drill bit 10 mm
Clamping height of the workpieces max. 80 mm
Motor 1.5 kW, 400 V, 50 Hz
Working height 900 mm
Compressed air connection 6 bar
Weight approx. 400 kg
