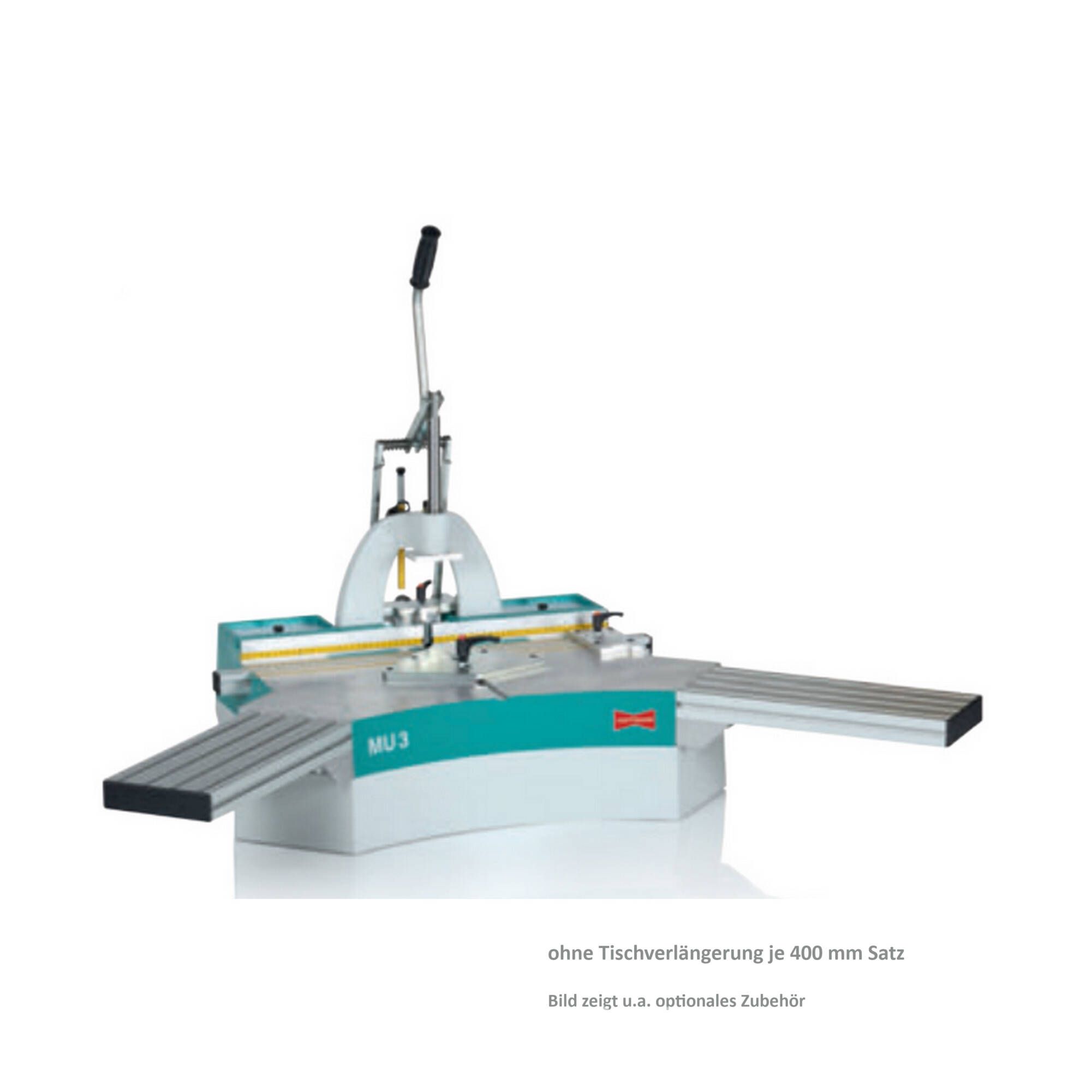

Slot milling machine for dovetail connectors
- Article No. 1326-45653
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | Hoffmann |
|---|---|
| Model | MU 3 |
| Item number | 1326-45653 |
| Category | Milling - Feed units › Special milling machine |
Description of the
Transportable and flexible table machine, mills one keyway per work cycle for the
Schwalbengrößen W-0/-1/-2/-3/-4.
Function:
Set the stops to size and insert the workpiece. When the handle is pressed down, the workpiece is
clamped. At the same time, the milling group moves to the set milling depth. The milled part is clamped when the
of the handle, the motor switches off automatically. That's it!
Technical data:
Connected loads electrical 1ph/N/PE 230 V 50/60Hz 1.0 kW
Motor 1 x 1000 W
Idle speed 34000 1/min.
Manual control
Manual workpiece clamping
Clearance height 130 mm
Milling depth 0-85 mm
Suction nozzle Ø 50 mm
Swallow size W-0/1/2/3/4
Dimensions W/D/H 740/650/835
Weight 32 kg
Order no. No. W1031000
