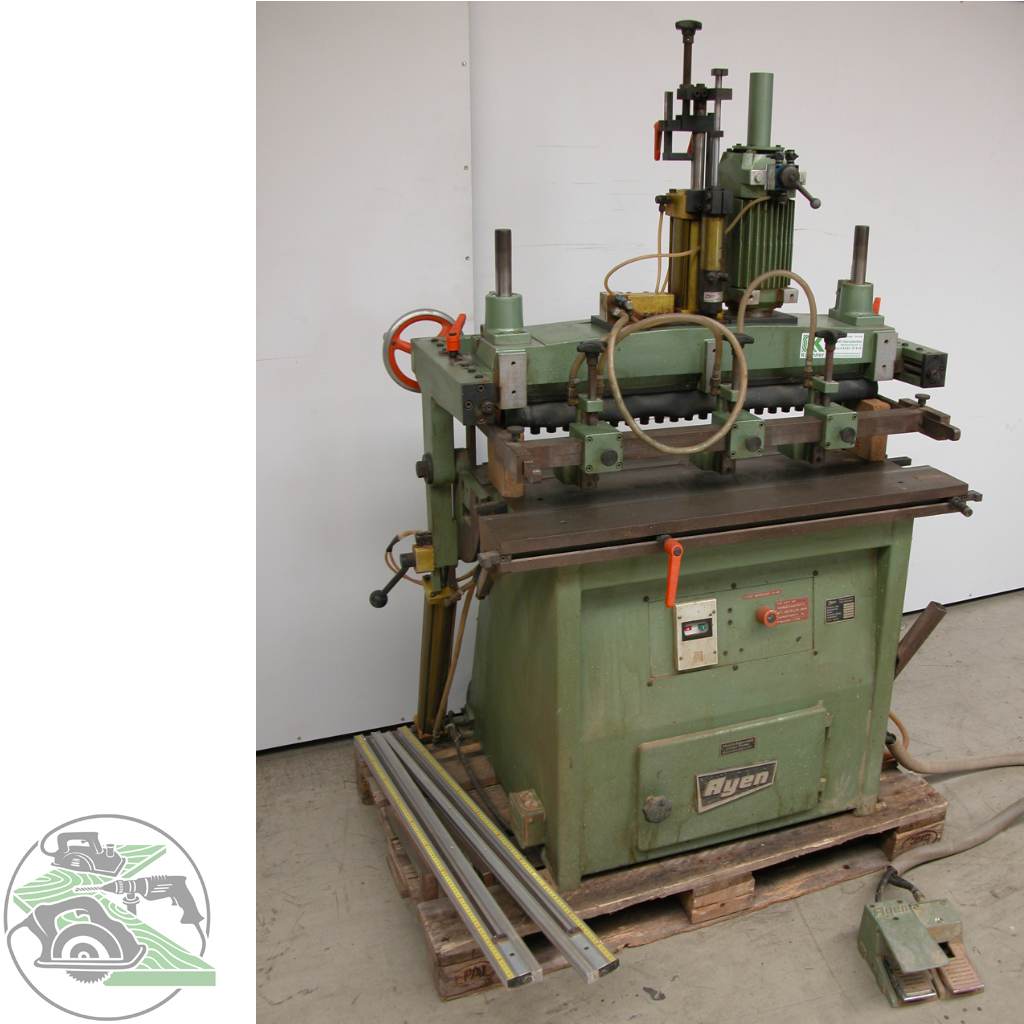

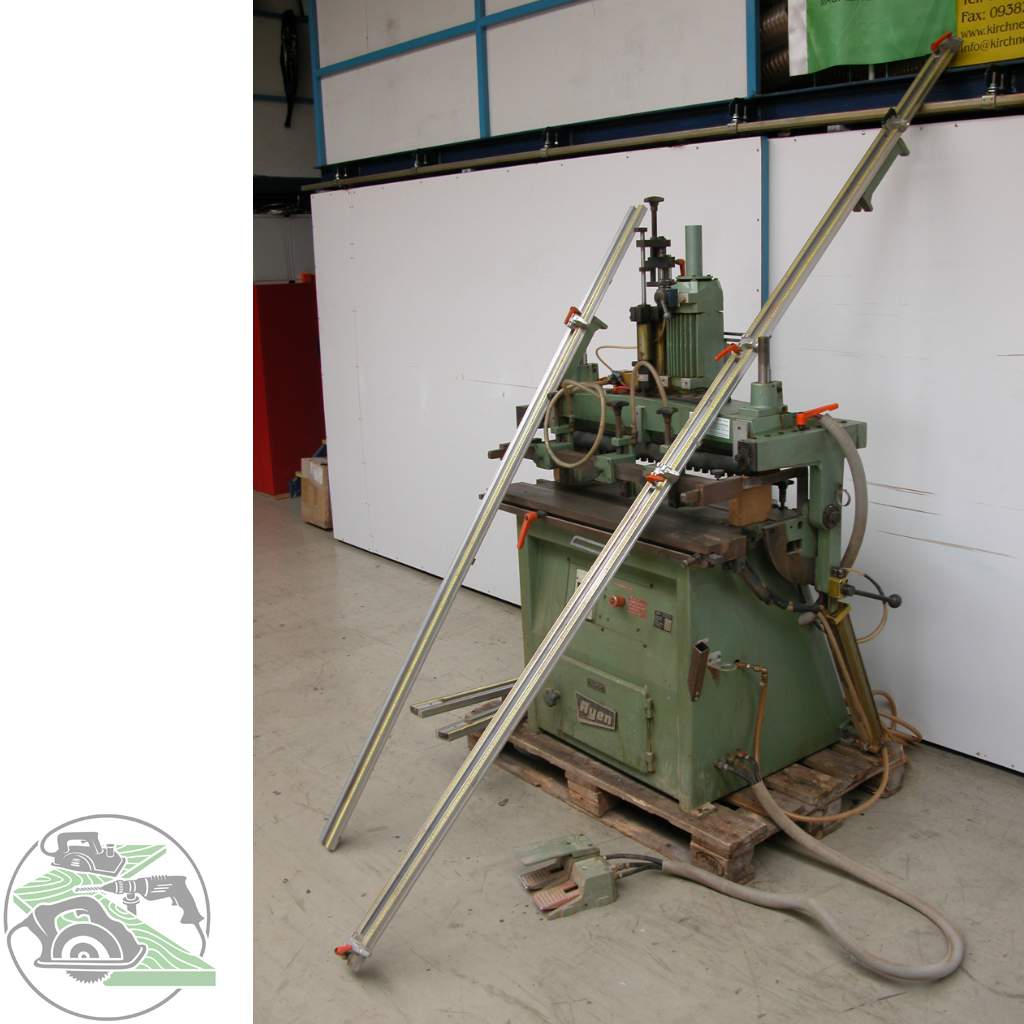

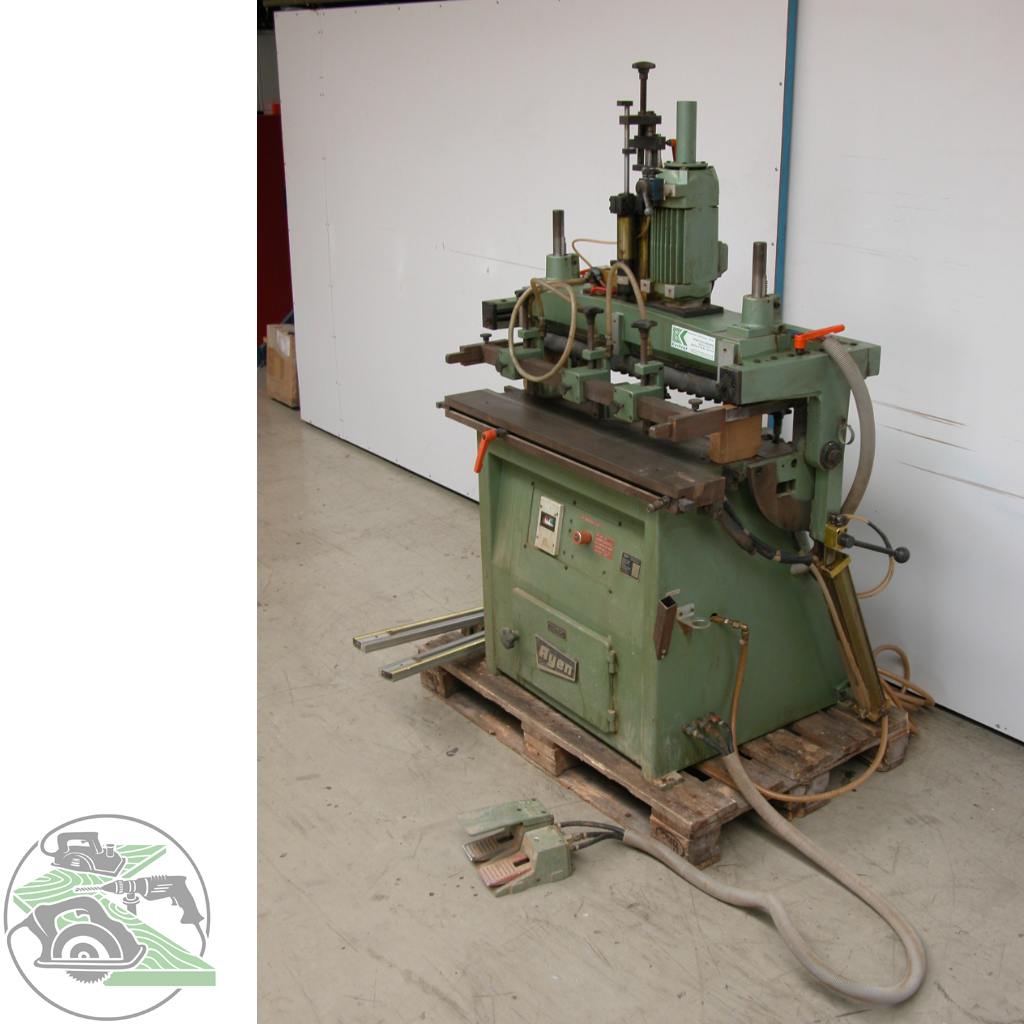

Drill press Ayen Type DB 100 K23
Type DB 100 K23
- Year of construction 1977
- Article No. 1326-35023
1.950,00€
incl. VAT · excl. shipping
in stock - available immediately
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Checked & fairly rated
Technical data
| Manufacturer | Ayen |
|---|---|
| Model | Type DB 100 K23 |
| Year of construction | 1977 |
| Item number | 1326-35023 |
| Category | Drilling, dowelling, chiselling › Dowel hole drilling machine |
Description of the
Used
Make Ayen
Type DB 100 K23
Year of construction 1977
Machine no. 751212
Number of spindles 23 pieces
Number of drill beams 1
Drilling from above
swivelling pneumatic
Hydraulic feed brake
Drill holder D 10 mm
Tensioner 3 pieces
Grid 32 mm
Space requirement approx. LxWxH mm
1200 x 800 x 1600
Weight approx. 370 kg
Total connected load 2.2 kW
Storage location 97447 Gerolzhofen
Handover in actual condition as inspected
- free loading -
