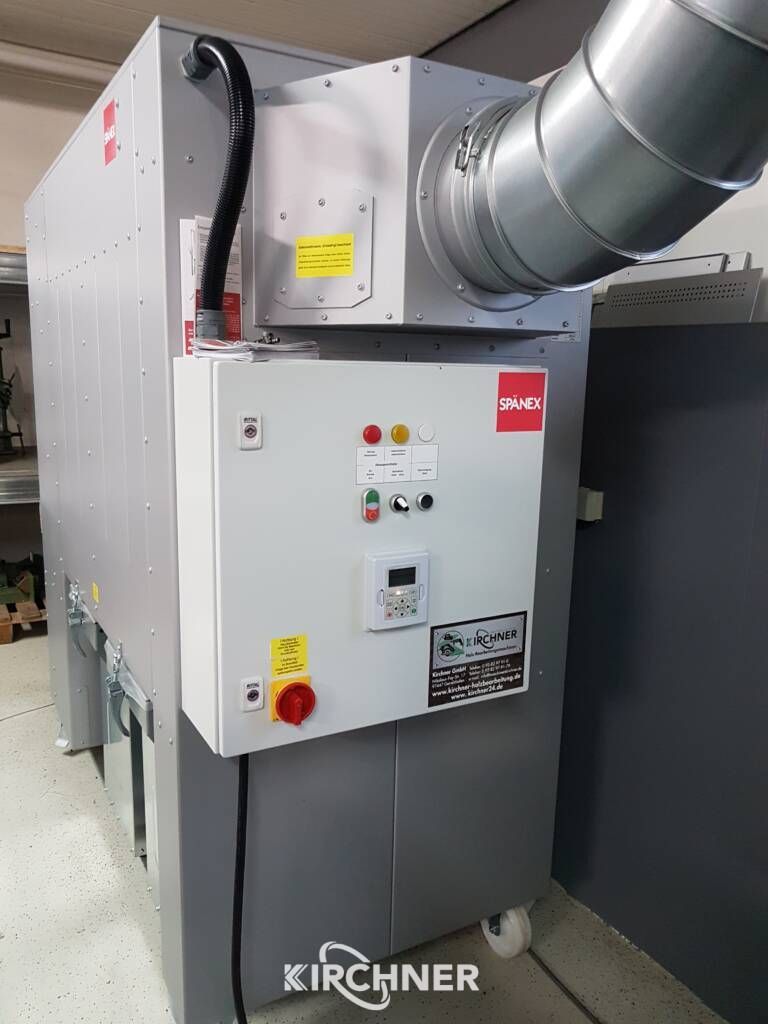

Deduster

Exhibition machine

Type A according to DIN EN 16770:2018

without fire extinguishing device, tested according to the test principles
GS-HO-07 of the BGHM.

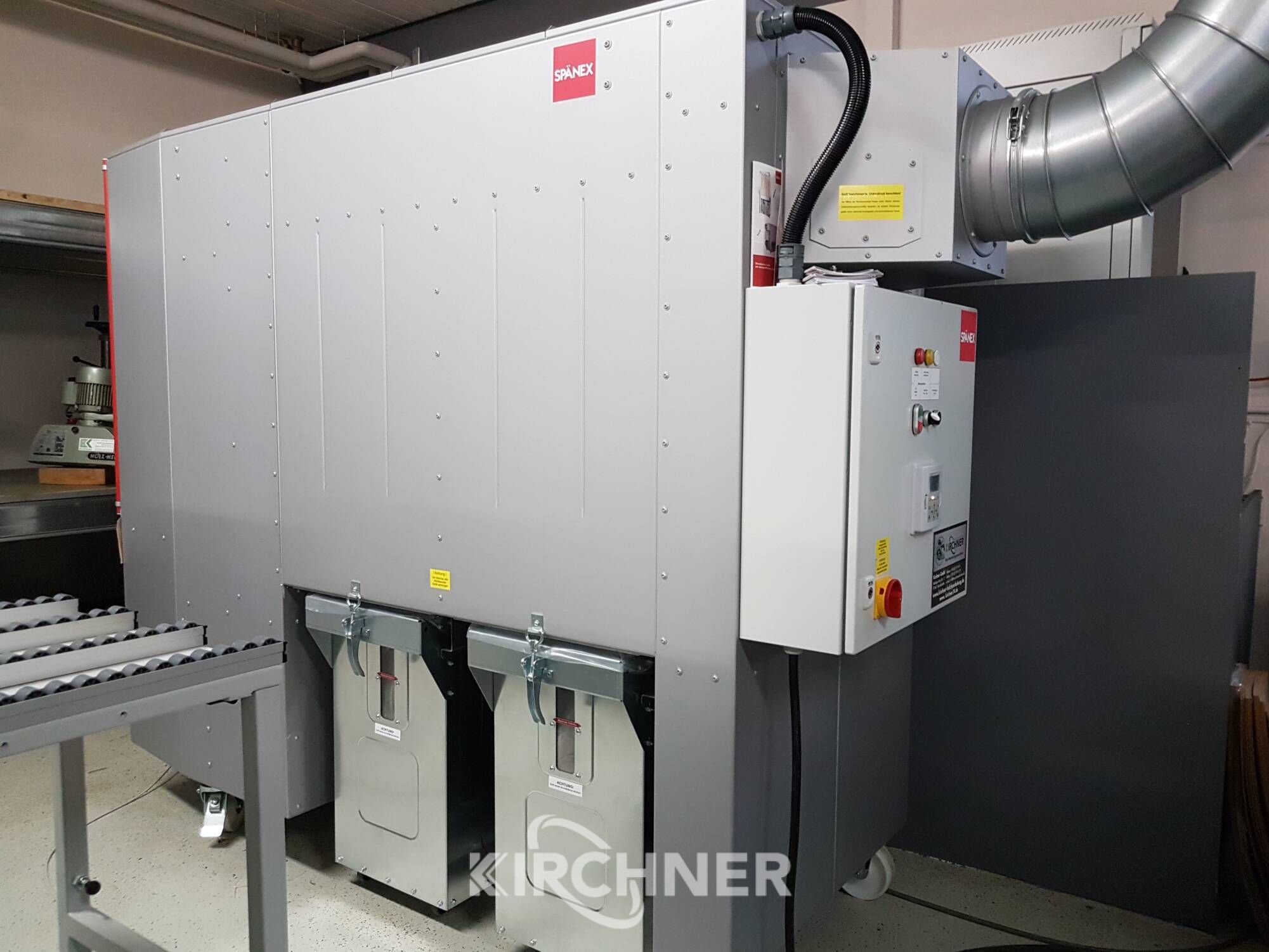

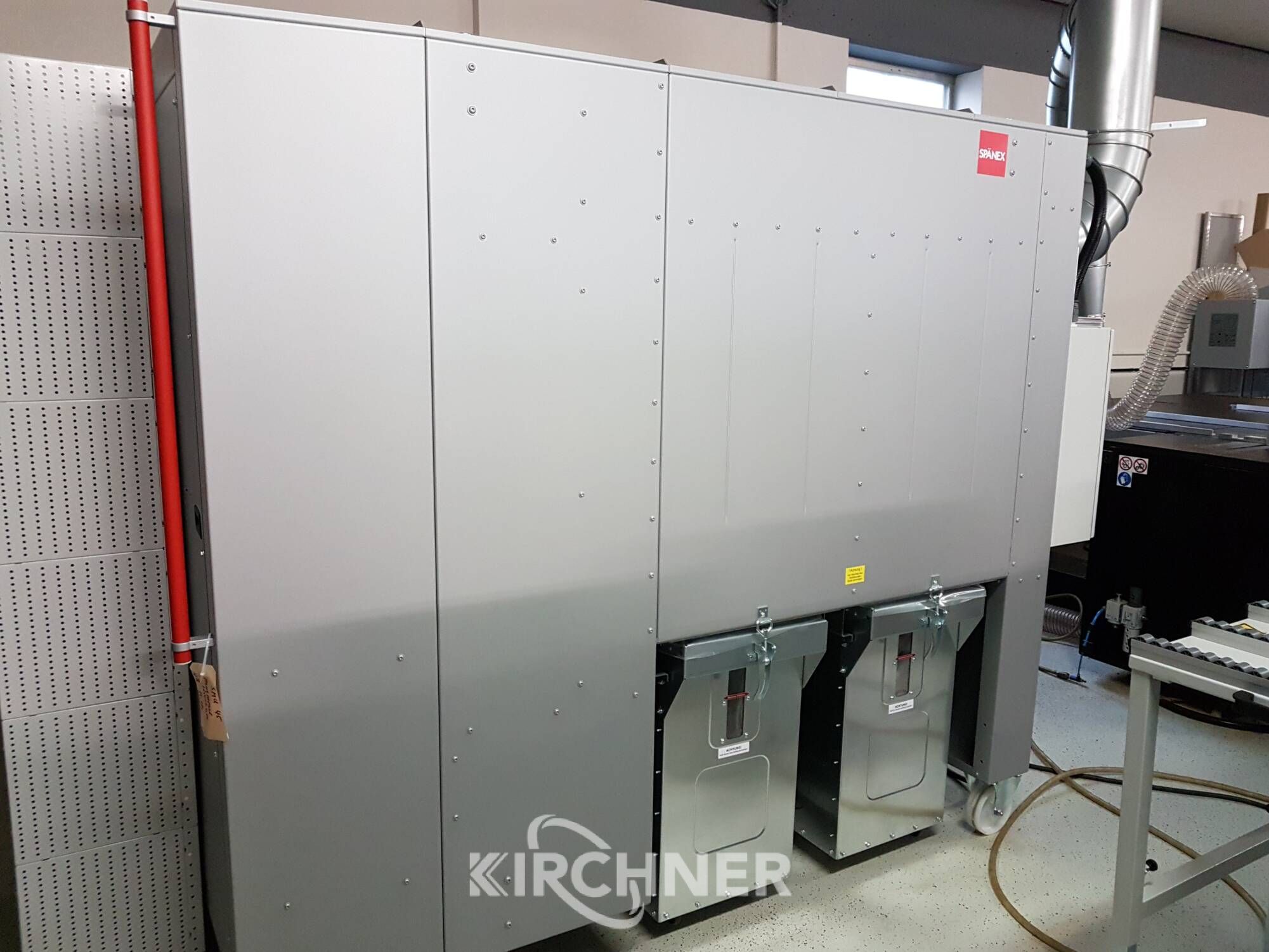

The dust extractor is a mobile extraction and filter unit for commercial use for installation in the work area.
The dust extractor is suitable for removing dry wood, paper or
Plastic chips and dust on various processing machines
to capture, promote and separate.
Consisting of pressurised housing with suction nozzle
and non-return flap, antistatic filter elements with
Jet pulse cleaning, high-performance centrifugal fan arranged on the clean air side with three-phase motor of energy efficiency class IE3
as well as integrated exhaust air sound attenuation and air outlet grille.

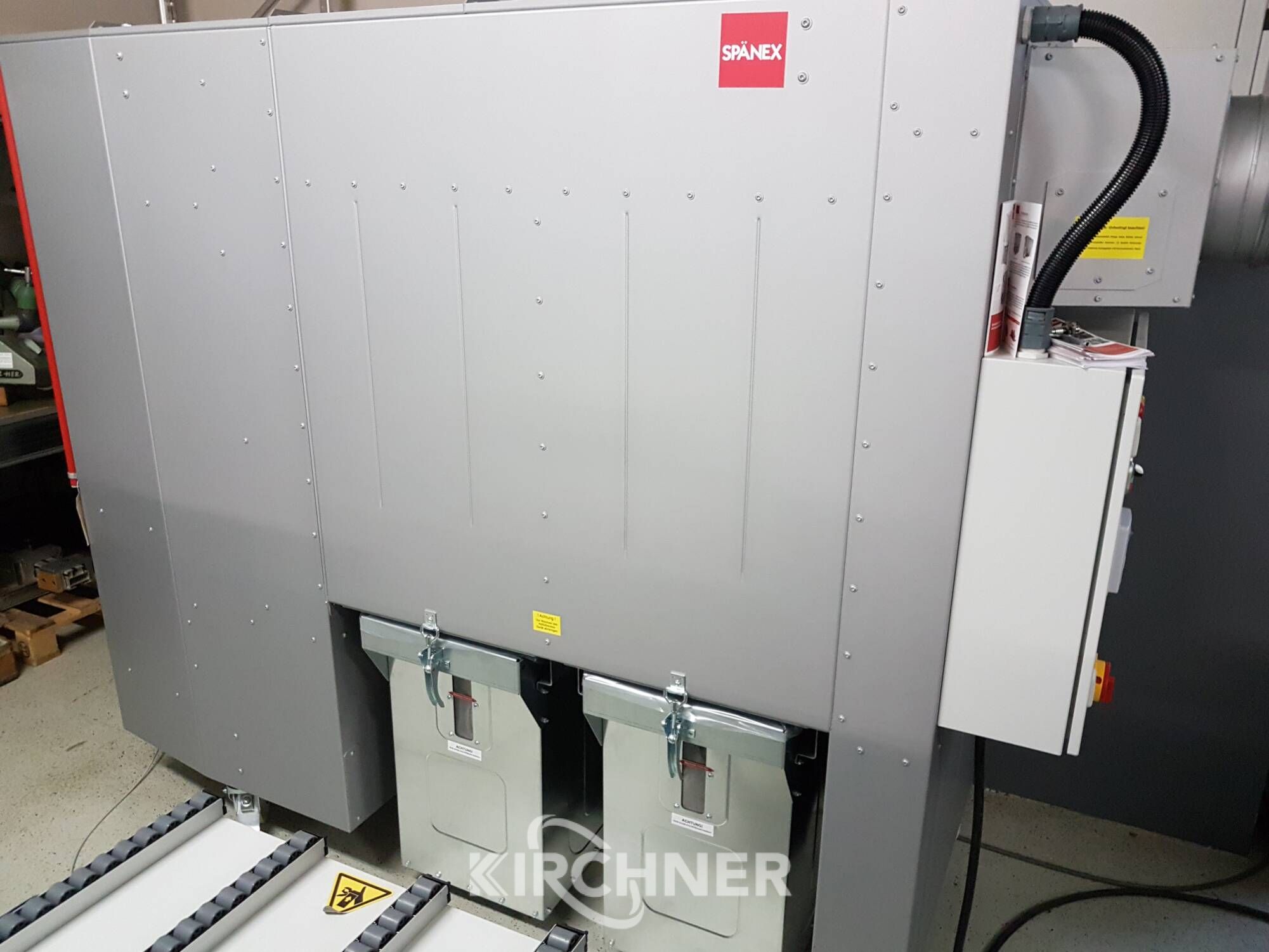

With 2 swivel castors and 2 fixed castors, 2 chip containers with filling bags and

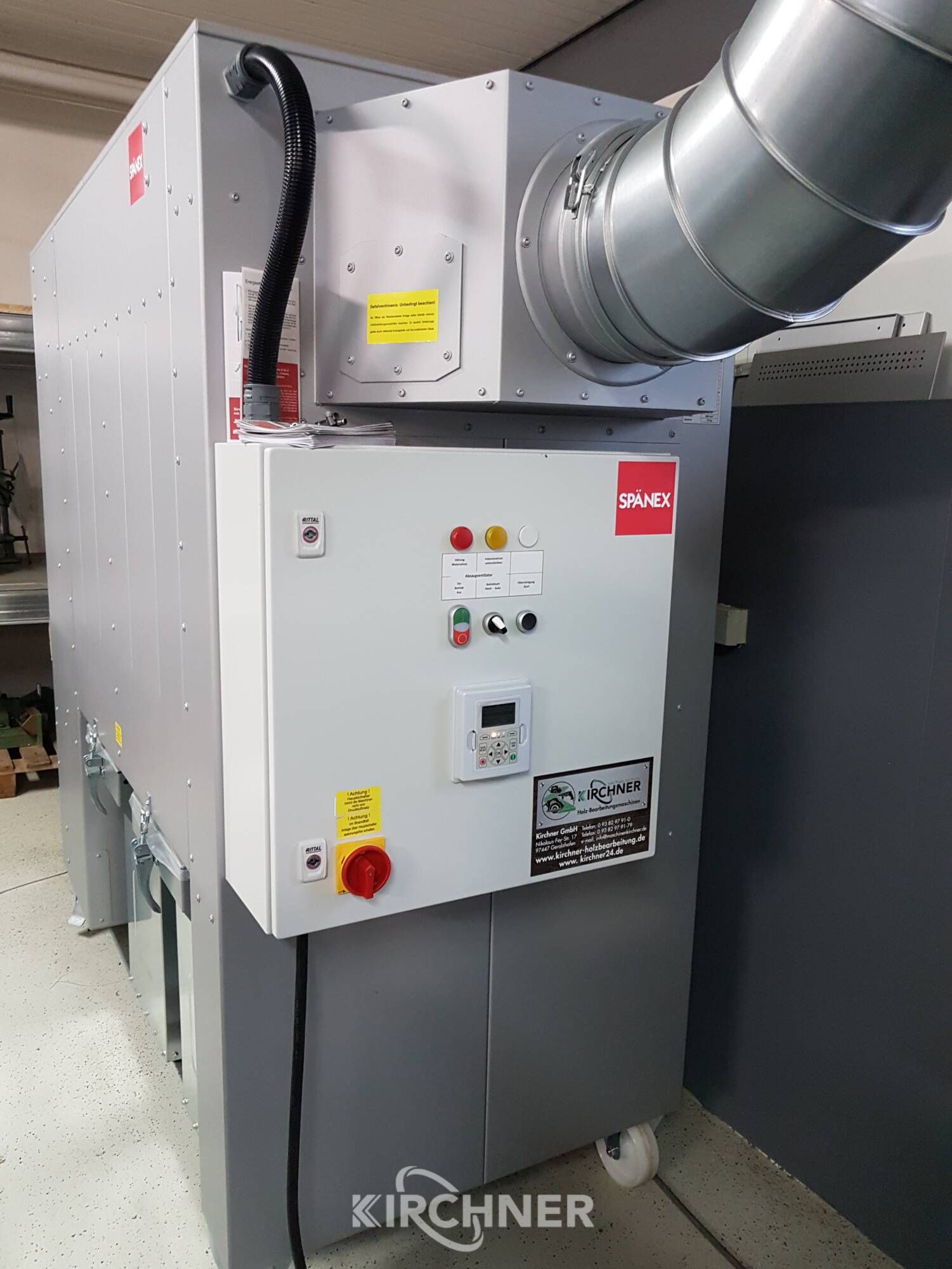

a circuit with 5 m connection cable and CEE appliance plug.
The circuit is designed for automatic operation. The automatic start-up control for max. 6 machines and the automatic cleaning of the filter with runtime addition are included. For automatic
Start-up can be carried out either with pick-up coils or potential-free contacts.
of the machine.
1-component PVC single-layer coating in RAL 9006 (white aluminium).

They are delivered in a ready-to-use assembled condition.

For cleaning, compressed air prepared on site must be provided at the appliance (connection via plug nipple NW 7 / 6 bar).

Technical data:
Suction nozzle: Ø 250 mm
Residual dust content: < 0.1 mg/m³ H3
Filter area: 21 m²
Cleaning: offline - compressed air jet pulse
Compressed air supply: 6 bar (connection plug nipple NW 7)
Volume flow: 4,500 m³/h
Nominal volume flow
(at 20 m/s in the suction nozzle): 3,530 m³/h
Negative pressure (at the suction nozzle
at nominal volume flow): 2,700 Pa
Sound pressure level MAX
(distance to device 1m): 67 dB (A)
Fan motor: 5.5 kW, 230/400 V, 50 Hz, 3,000 min -1, IP 54
Operating mode: Continuous operation, discontinuous
Filling bin collection volume: 2 x 165 litres.
Dimensions (L x W x H): 2,130 (2,540) x 900 x 1,962 mm
Weight: approx. 705 kg

Accessories:

1 frequency inverter 5.5 kW for the fan of the SMU dust extractor,
Make Eaton (article no. 114004)

with control, integrated in the dust extractor control system, for
Keeping the volume flow constant at filter saturation, including
Safe fan stop during filter cleaning.
Individual adjustment of suction pressure / volume flow according to the current
Demand.
The inverter increases the efficiency of the system, saves energy and reduces
the stress on material and machine.

Technical features:
- Motor power 5.5 kW,
- integrated PID controller,
- automatic energy optimisation,
- Integrated manual/automatic changeover,
- Commissioning menu for quick parameterisation,
- Integrated radio interference suppression filter in accordance with EN 55011-1B,
- Synchronisation to a free-running motor shaft,
- including pressure transducer 0-50 mbar (pressure cell).

1 slide control for 1 - 8 processing machines (item no. 113197)

Activation of up to 8 electro-pneumatic shut-off valves in the extraction pipework on the respective processing machines, triggered by potential-free contacts or pick-up coils on the machines.

8 pick-up coils STWA1 (article no. 600668)

for contact removal on the processing machines, suitable for all STW types.
