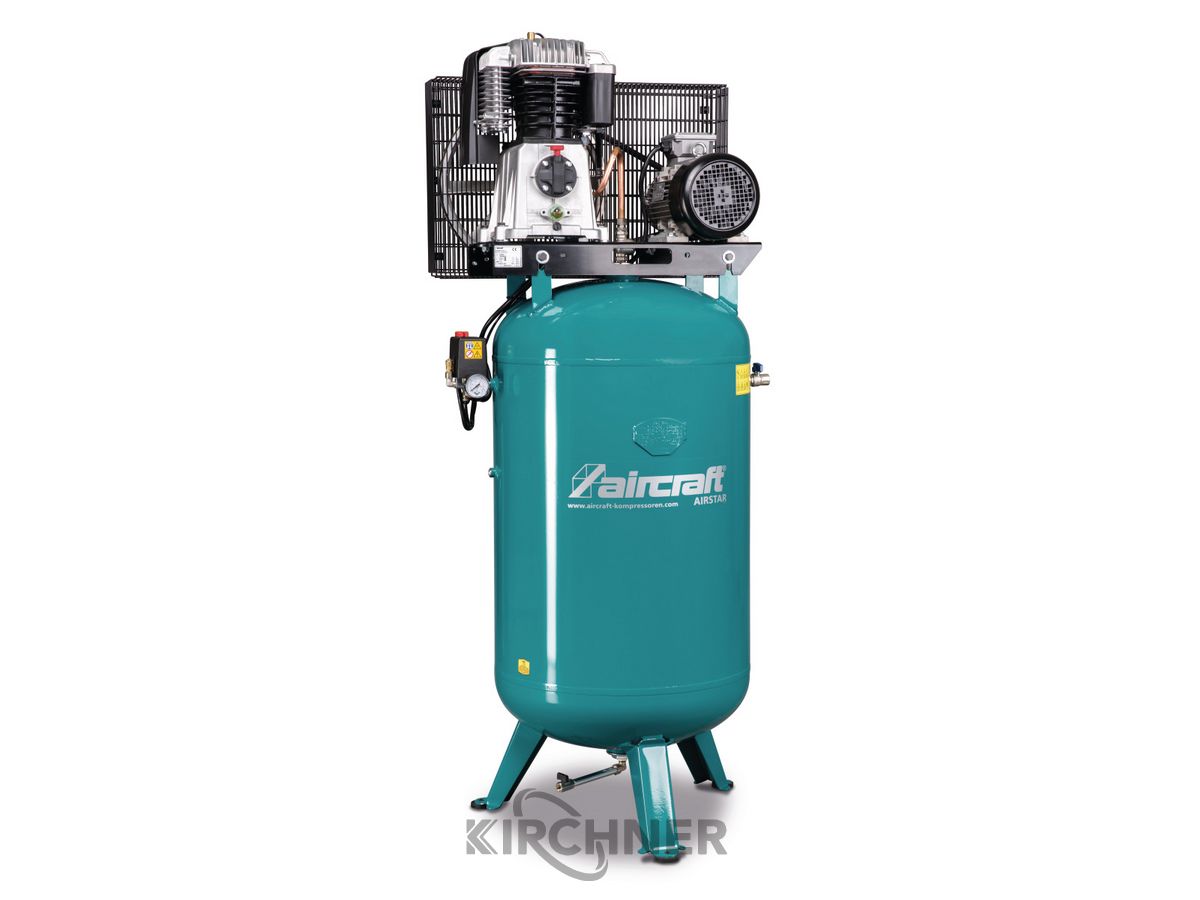

Compressor

-new-

Description:
- Stationary, vertical piston compressor
- With two-stage compressing two-cylinder
High-performance grey cast iron unit for
a long service life
- Solid quality for craftsmen
- Fully automatic on/off operation
- Equipped with CONDOR pressure switch,
a pressure gauge for tank pressure, a
Ball valve on the boiler and much more
- Powder-coated compressed air tank with
10-year guarantee against rusting through
- Filling capacity approx. 520 l/min
- Maximum pressure 10 bar
- Tank capacity 270 l/min

Scope of delivery:
- Two-stage compression two-cylinder
- High-performance unit
- Toothed drive belts
- Automatic CONDOR pressure switch
- Power plug with phase inverter for
Manual reversal of the direction of rotation
- 1 pressure gauge for tank pressure
- 1 Ball valve on the boiler
- Copper cable
- Powder-coated compressed air tank
with 10-year guarantee against rusting through
- Vertical container in AD 2000 design
- Safety valve
- Condensate drain valve
- Oscillating elements

Technical data:
Compressor system HOS
Maximum flow volume 650 l/min
Filling capacity approx. 520 l/min
Maximum pressure 10 bar
Container capacity 270 litres
Cylinders/stages 2/2
Speed 950 1/min
Motor power 4 kW
400 V mains connection
Mains frequency 50 Hz
Weight 1 160 kg
Dimensions (L x W x H) 720 x 720 x 1770 mm
Sound pressure level- 1 m distance according to DIN 45635
80 dB(A)
Air outlet 3/4″
