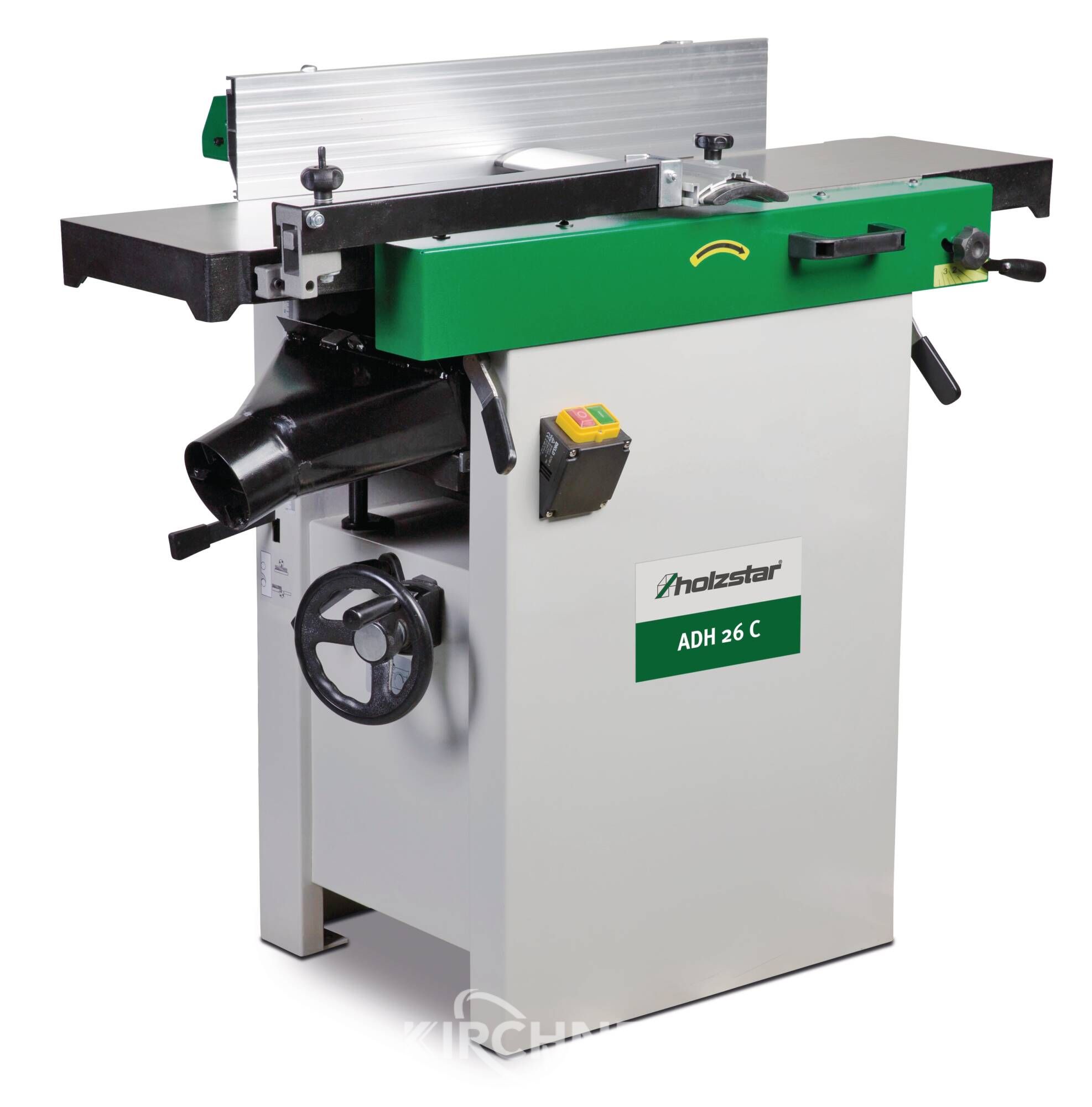

Description
- NEW -
Description:
- The ideal appliance for the ambitious
DIY enthusiasts and hobby users
- For angled joining (90°) and precise
Dressing of solid wood boards, planks and
Last
- Simple and precise adjustment of the chip removal
for accurate thickness planing
- Automatic workpiece feed
- Toothed steel infeed roller for an even feed
and constant wood feed
- A rubberised pull-out roller protects the
Thickness planing the surface
- Easily adjustable aluminium dressing fence,
Tiltable from 90° to +45°
- Large dressing table made from ribbed
Die-cast aluminium
- Large grey cast iron thickness table with polished
Surface
- Integrated, fold-down chip extraction bonnet
Equipment details:
-Simultaneous opening of the dressing tables
- Simultaneous folding up of the dressing tables with
Spring support for a quick and comfortable
Conversion to thickness planing in seconds
- Fixed extraction bonnet
- Thanks to the permanently mounted extraction bonnet, the
Retrofitting no repositioning of the suction hose
more needed
- Time-saving
- The table height adjustment is simple and convenient
via a handwheel
Technical data:
Dimensions and weights:
Length 1120 mm
Width/depth 630 mm
Height 960 mm
Weight 170 kg
Drive power/electrical connection:
Drive motor power 1.7 kW
Supply voltage 230 V
Phase(s) 1 Ph
Current type AC
Mains frequency 50 Hz
Dust extraction connection:
Suction nozzle diameter Thickness 100 mm
Dresser:
Dressing table length 1120 mm
Dressing table width 275 mm
Working height 830 mm
Chip removal max. 3 mm
Thickness:
Thicknessing table length 545 mm
Thickness table width 258 mm
Working height min. 5 mm
Working height max. 225 mm
Chip removal max. 3 mm
Feed rate:
Feed speed 5.5 m/min
Planing cutterblock:
Planer shaft diameter 70 mm
Planer shaft speed 5200 min-1
Planing width max. 258 mm
Storage location 97447 Gerolzhofen
