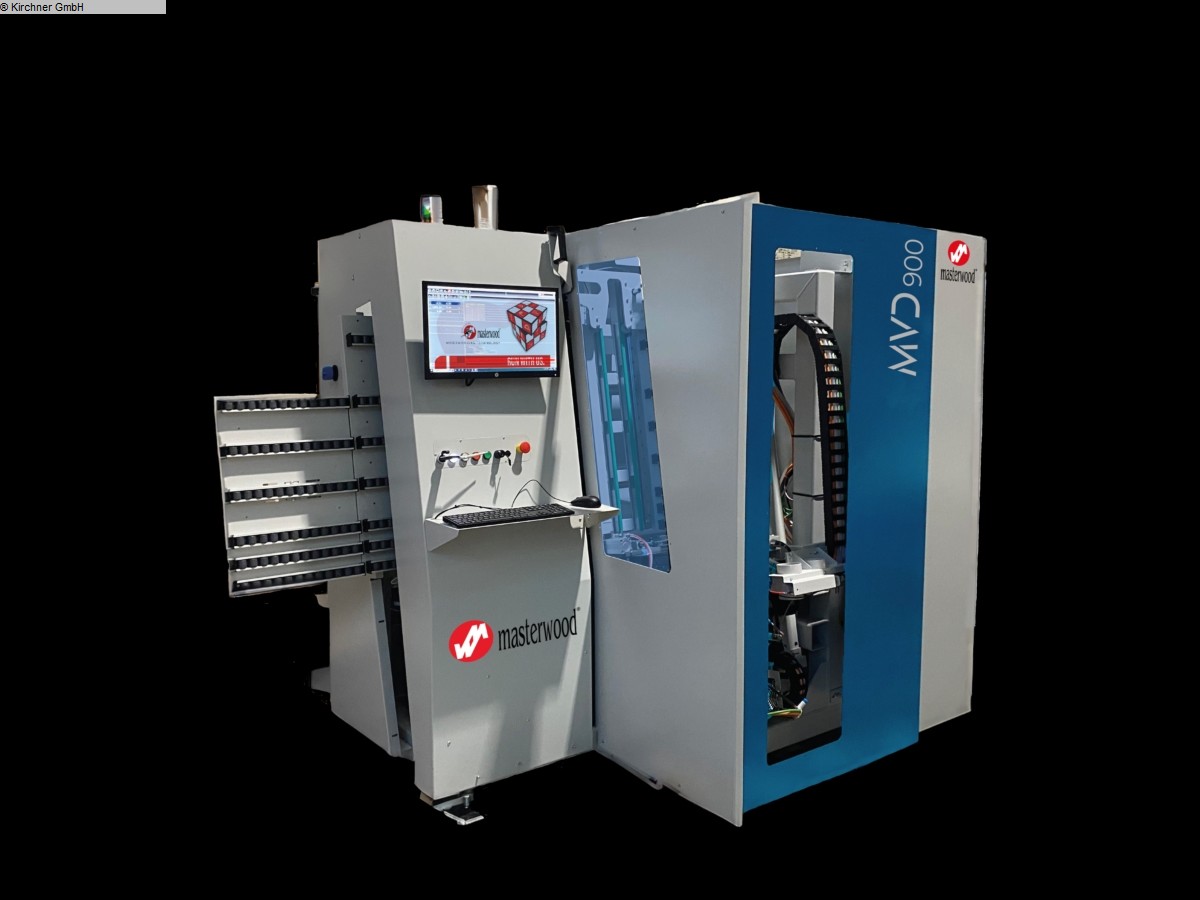

CNC machining centre
- Condition Excellent
- Article No. 1326-57377
- Viewing by appointment
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | MASTERWOOD |
|---|---|
| Model | MVD 900 |
| Condition | Excellent (1/5) |
| Item number | 1326-57377 |
| Category | CNC machining centres › CNC machining centres |
Description of the
„PARTNERSHIP EDITION“
The MVD 900 combines modern CNC technology with minimal space requirements, offering joineries maximum efficiency in the smallest of areas.
With intuitive operation, powerful features, and flexible application possibilities, getting started with CNC manufacturing is effortless.
Technical data:
Machine dimensions: 2,200 x 1,600 mm
Drilling head: 20 spindles (12 vertical + 8 horizontal)
Milling unit: 6-station tool changer
Plate thickness: 10 – 60 mm
Tool changer: 6-station tool changer
Maximum working width: 990 mm
Max. working length: unlimited
X-axis
Max. workpiece length: unlimited
Min. workpiece length: 250mm
Y-axis
Max workpiece width: 990mm
Min. workpiece width: 80mm
Z-axis
Max. workpiece thickness: 60mm
Min. workpiece thickness: 10mm
Aggregates:
20mm drill head
Grooving saw: in X-direction
– Roller table in the infeed and outfeed
Plate measurement sensor
– DXF file import
Milling unit, speed: 1,000 to 18,000 rpm, motor: 4.5 kW with ISO 30 mounting
6-position tool changer
Complete tool kit, including drills, 2 x „Konstantin-Mini“ DP barrel milling cutters,
1 carbide-tipped saw blade, 1 carbide-tipped finishing cutter, 3 collet chucks with collets
Automatic centralised lubrication
Control: Personal Computer, Operating System: Windows
2 Ethernet cards
Programme: MASTERWORK MACHINE VERSION
Optional equipment
– Door package
– Clamex package
– Freight, installation, instruction
