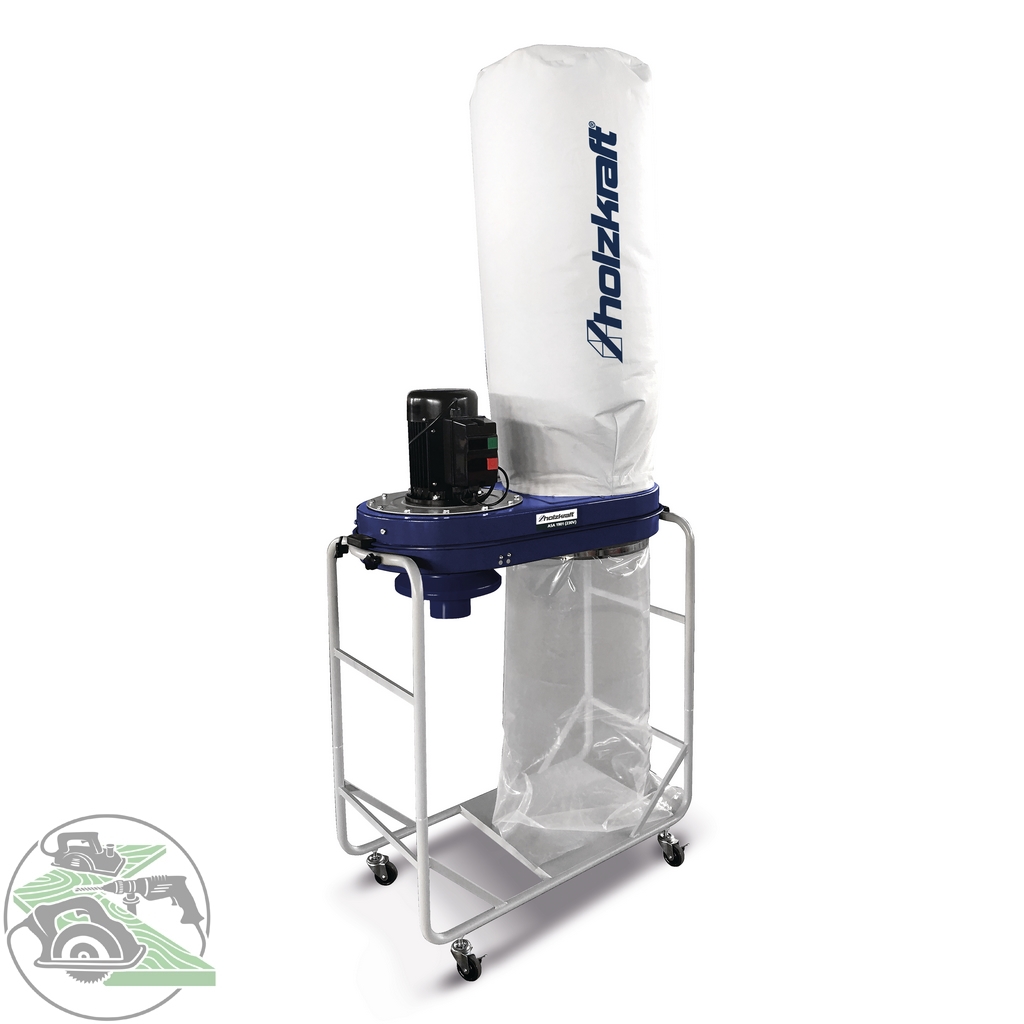

Clean air extraction system Holzkraft ASA 1901

-NEW-

Description of the

For milling, planing and sawdust
High-quality, stable chassis for easy manoeuvring
Fine filter bag double woven

For milling, planing and sawdust (not suitable for dust)
Extraction unit can be rotated through 180° to allow extraction from below
or above
Sturdy metal fan wheel
With high-quality running gear as standard for improved stability and
Easy manoeuvring
Quick-release fasteners for filter and chip bag
Fine filter bag double woven

General information
Nominal volume flow 1900 m^3/h
Nominal width external suction nozzle inlet 203 mm
Negative pressure max. 1700 Pa
Nominal size external suction connection outlet 2 x 100 mm
Filter area 1.92 m^2
Idle speed 2950 min¯¹
Chip collection volume 110 litres

Dimensions and weights
Length (product) approx. 1000 mm
Height (product) approx. 2100 mm
Width/depth (product) approx. 500 mm
Weight (net) approx. 39 kg

Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Phase(s) 1 Ph
Input power 1.5 kW
Current type AC
Output power 1.05 kW

Noise emission
Sound pressure level max. 85.7 dB(A)

Scope of delivery

Filter bag, chip bag
