Description
Description:

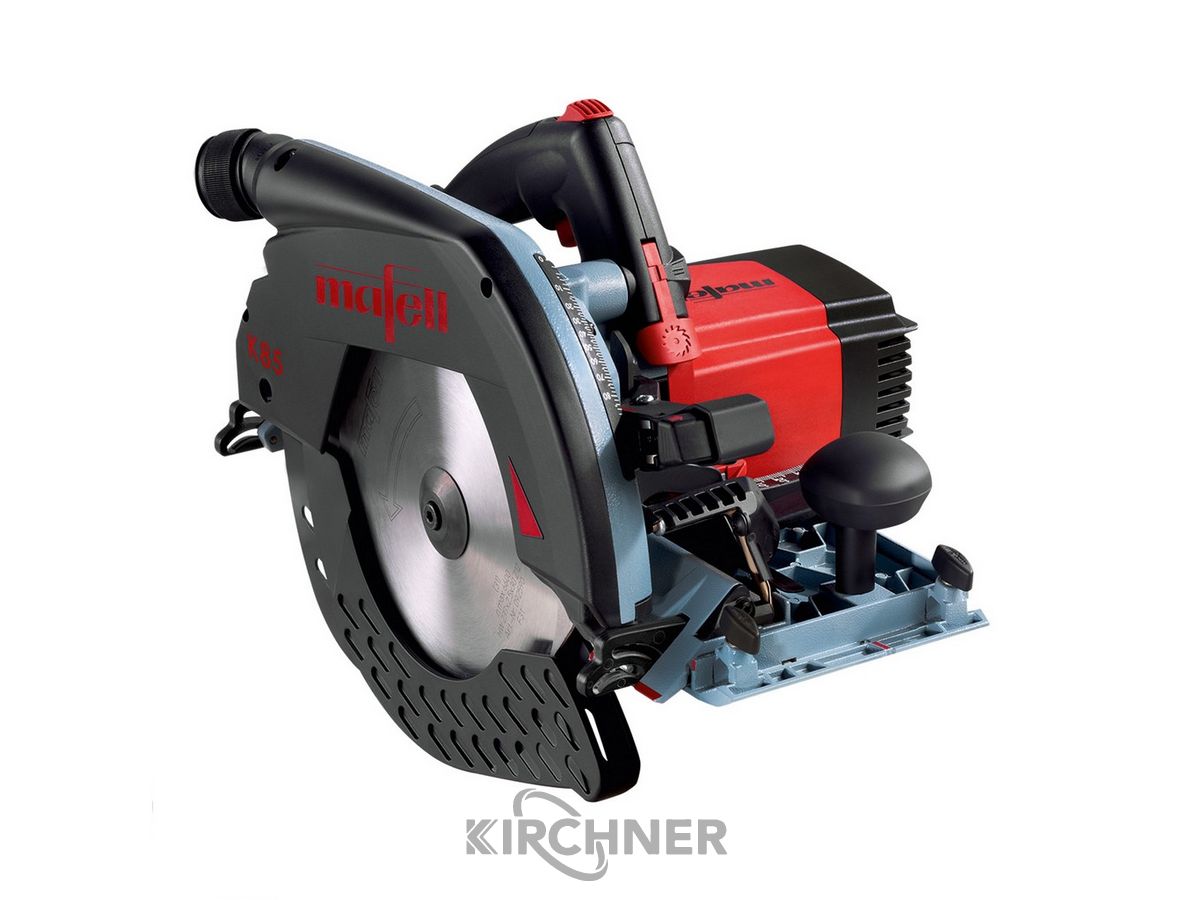

MAFELL circular hand saws combine power and precision with user-friendliness and ergonomics. These characteristics merge in the K 85 / K 85 Ec in a unique way. Now concentrated power and high torques have a name: CUprex, the high-performance motor with performance-optimised digital electronics and newly developed control technology. The speed can be infinitely adjusted to suit different materials and applications. It is no longer necessary to unscrew the splitting wedge - the FLIPPKEIL offers you optimum user comfort and user safety when plunging.
Advantages:
The K 85 / K 85 Ec for more cutting depth up to 88 mm. Even with a guide rail, an exceptional 82 mm can be achieved.
Optimum chip ejection, especially when sawing insulation materials.
Sawing after scribing. The rip indicator automatically adjusts to the set angle of inclination.
The cutting depth can be adjusted and locked in place with just one movement.
The innovative angle adjustment of the K 85 / K85 Ec enables optimum readability on the scale.
Field of application:
Transverse and longitudinal sections
Diagonal cuts / diagonal cuts up to 60°
Cervical cuts
Plunge cuts
Flashings, fillets
Use of materials e.g: Solid wood, panel materials, insulating material, doors, worktops, interior fittings and renovations
Technical data:
Cutting depth 0 - 88 mm
Cutting depth at 45° 0 - 61.5 mm
Cutting depth at 60° 2 - 44.5 mm
Swivelling range 0 - 60 °
Nominal idle speed 4400 1/min
Nominal power consumption 2300 W
Weight 6.7 kg
Universal motor 230 V / 50 Hz
Scope of delivery:
1 HM saw blade 237 x 1.8/2.5 x 30 mm, Z 12, WZ, for longitudinal cuts in wood; order no. 09259090. No. 092590
1 suction nozzle; order no. No. 205290
1 hexagon spanner 5 mm; order no. 093034 No. 093034
1 connection cable 4 m; order no. No. 087888
With CUprex high-performance motor
Control electronics with speed adjustment
in box
