Description
Description:

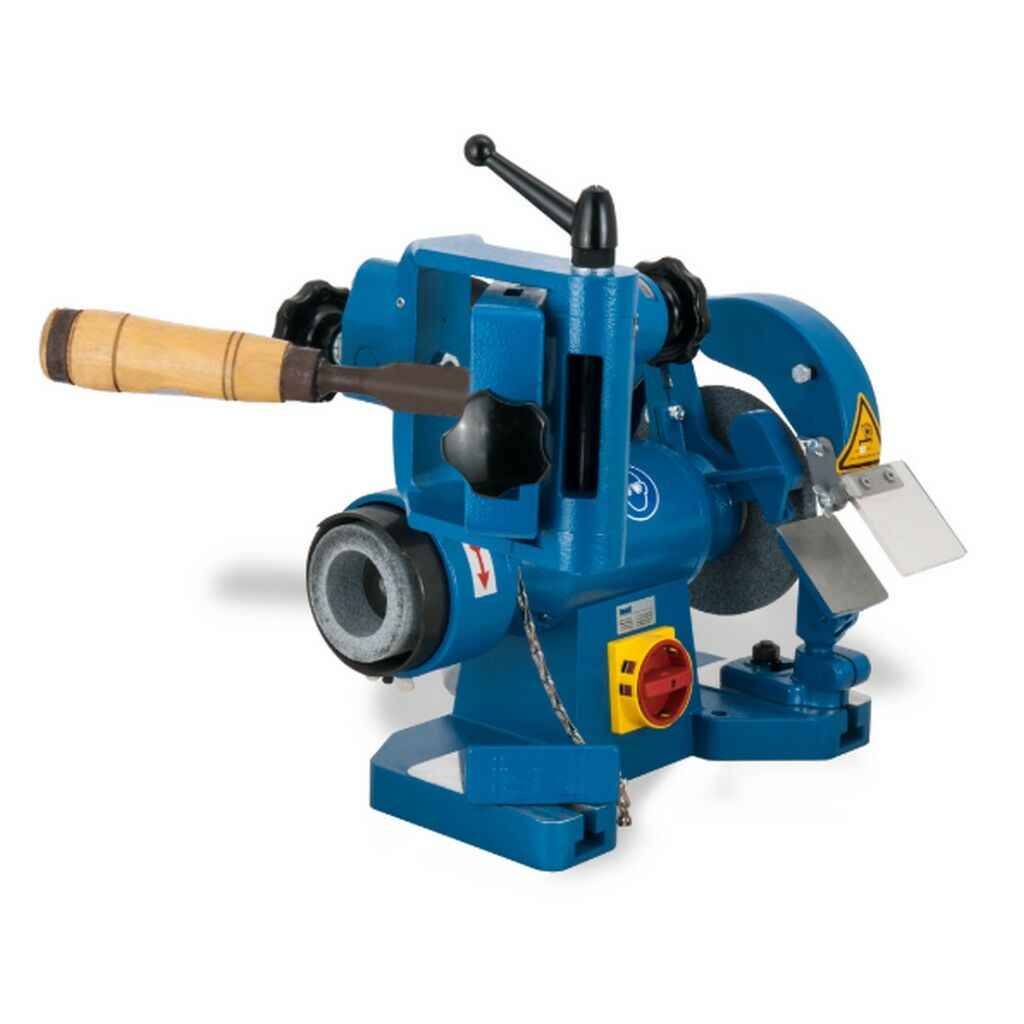

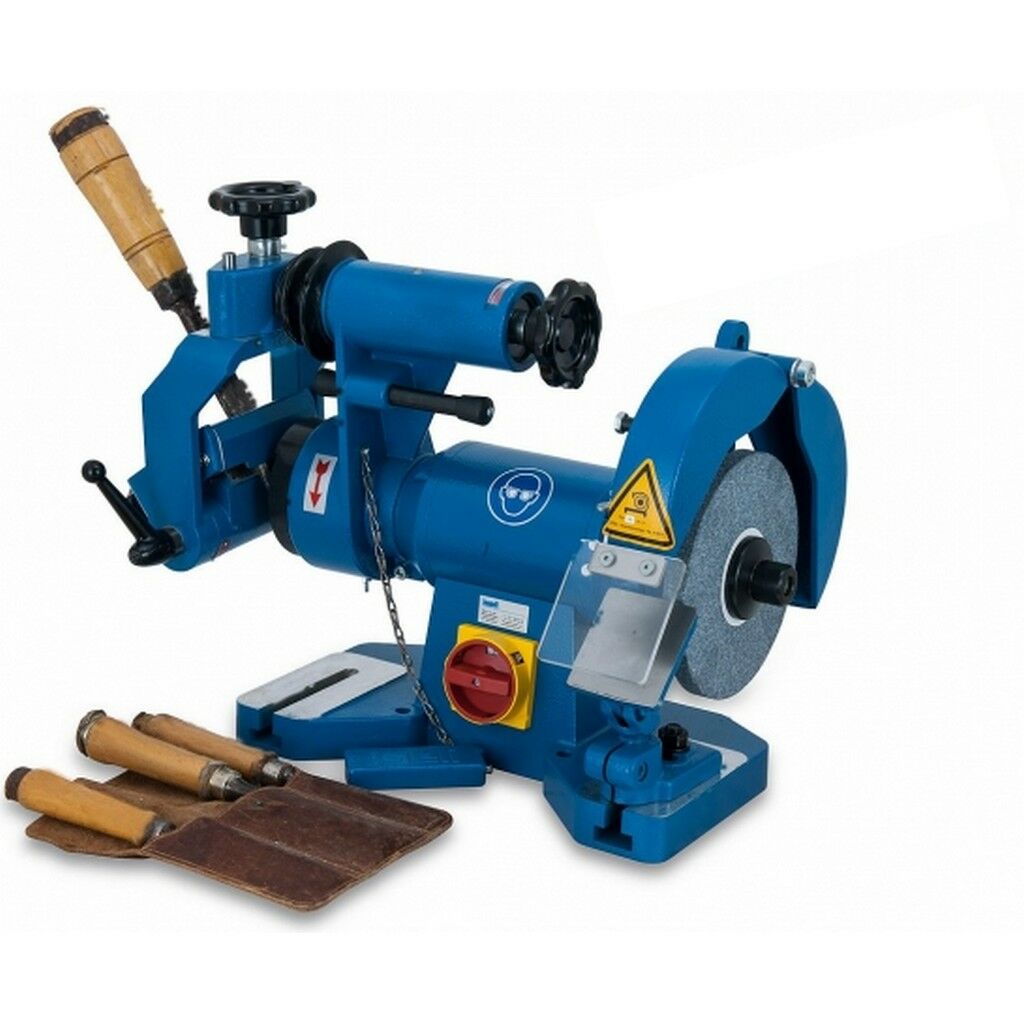

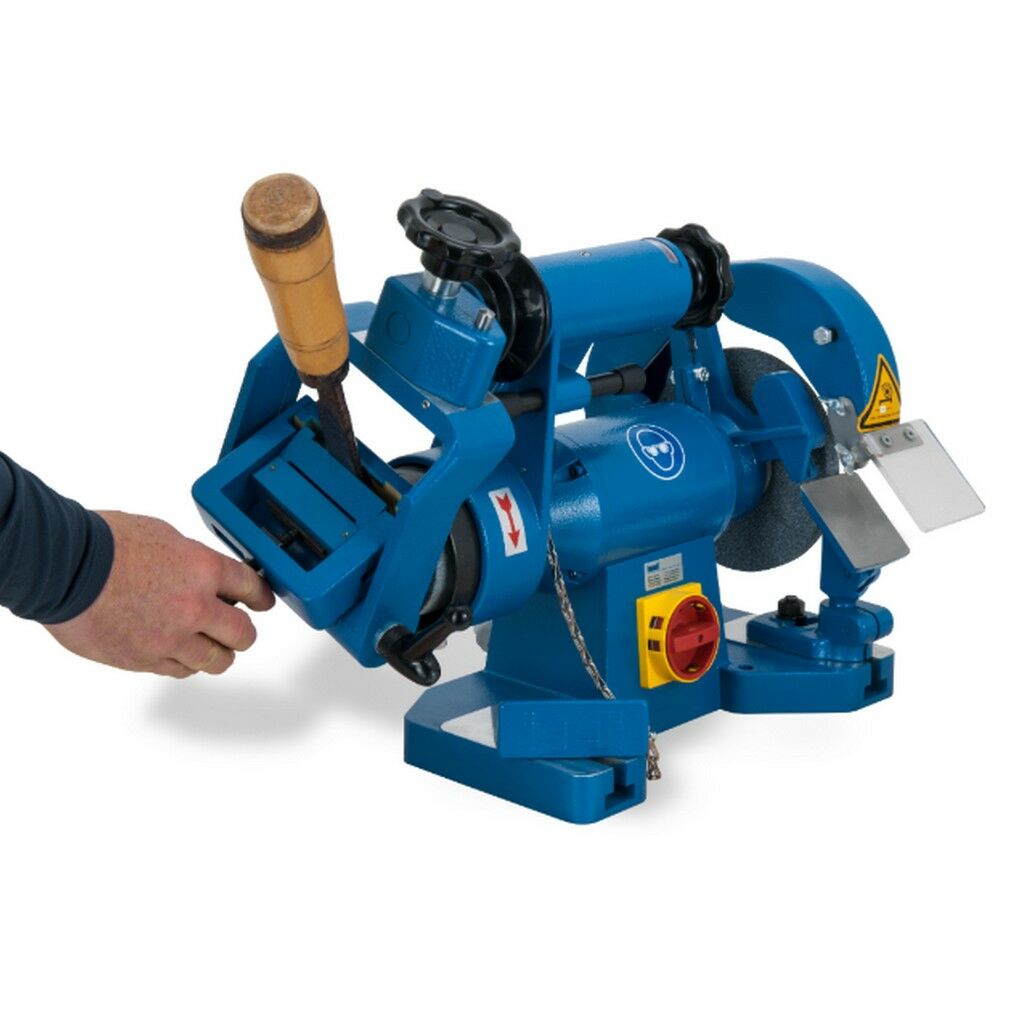

Sharpening machine for chisels and hand tools
The ISELI sharpening machine for hand tools type FL consists of the high-quality basic motor, the sharpening unit on the left-hand mounting flange and the grinding block or buffing wheel fitted with an extension mandrel on the right-hand side of the motor.
- Ideal areas of application: Sharpening / resharpening of hand gouges and chisels for manual woodworking in commercial joineries, woodworking companies or in training centres
- Tried and tested dry sharpening principle: stringless, burr-free sharpening in 30 seconds
- Time-consuming removal of the cutting edge is no longer necessary. This saves time and efficiency
- Dry grinding and yet no annealed cutting edges
- Effortless clamping and unclamping of tools
- Even trainees or unskilled labour can operate this machine - easily and masterfully
- Cutting angle setting according to scale
- Lateral grinding of the cutting edges in the same clamping position
- Tool rest with 3-way adjustable stop
- Built-in temperature switch in motor winding, for 230V 1Ph version
- Very powerful grinding motor (0.95 hp at 380 V. 3 Ph)
Technical data:
- Operating voltage 400V, 3Ph, 50 Hz
- On-site back-up fuse 16 A
- Power 0.55 kW
- Protection class IP 44
- Speed 2800 1/min
Scope of delivery:
- 1x sharpening machine TYPE FL/T (400V 3Ph 50Hz)
- 1x set of sanding attachments (1 piece 15 / 20 / 30 / 40 / 50 / 60 mm)
- 1x cup grinding wheel & 1x tool grinding wheel
- 1x operating instructions
