Description
Description of the

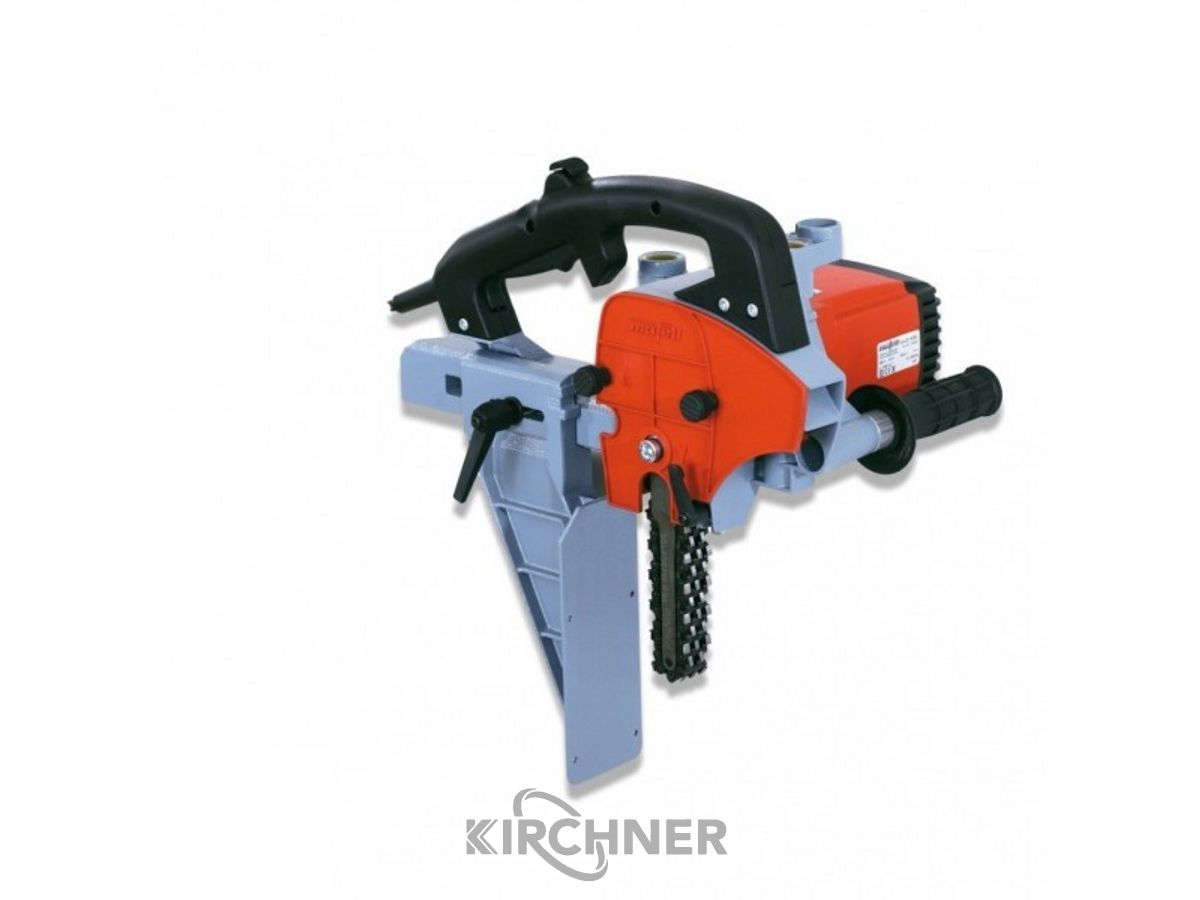

Uniquely lightweight at 9.0 kg. The long crosscut fence holder with large adjustment range enables work on large-dimensioned timber. The tensioning system on the LS 103 Ec allows the chain to be changed quickly. Even retensioning the chain when the chain guard is fitted is no problem and can be done quickly. Special accessory: the guide frame for the LS 103 Ec, ideal for precise work when joinery, especially essential for chain sets of 150 mm. With the LS 103 Ec and the suitable slotted frame SG 230, SG 400 or SG 500, you can carry out mortises of up to 500 mm! This is not possible with any other machine on the market! Advantage Benefit
Ergonomic handle and switch arrangement - for safe, efficient and energy-saving work. Low machine weight - ideal for use on construction sites. Extremely powerful motor - for high efficiency and significant time savings.
Mortises Use of material e.g. solid wood, glulam: Solid wood, glued wood
Technical data:
Mortising depth 100 mm Nominal idle speed 4050 1/min Nominal power consumption 2500 W Weight 8.9 kg Universal motor 230 V / 50 Hz
Scope of delivery:
1 cross stop 1 hexagonal screwdriver 4 mm 1 hexagonal screwdriver SW 8 1 connection cable 10 m
