Description
Description:

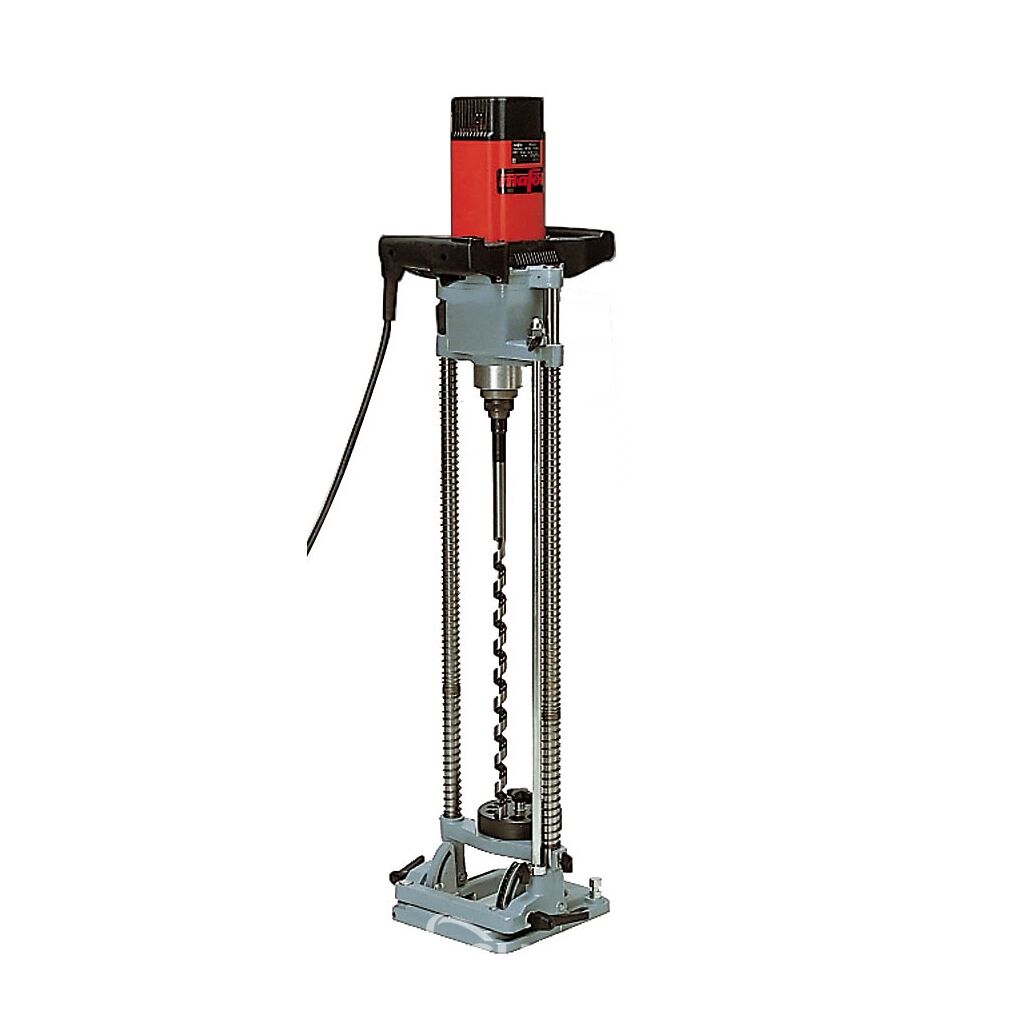

- The ZB 400 E / ZB 600 E with unmistakable quick-locking mechanism for the drill bit holder.
- Also equipped with electronic speed control, right/left rotation, 2-stage mechanical gearbox, 63 mm clamping neck and centring pin.
- Well-balanced handles for hands-free operation and overhead work as well as speed adjustment depending on the drilling thickness and the separate stop bar for drilling depth adjustment are further advantages of the ZB 400 E / ZB 600 E that make the drill indispensable for extreme drilling in the hardest woods.
Advantage / Benefit:
- Tool-free quick lock - for quick and easy drill bit changes.
- Folding drill guide - for easy drill bit changes.
- High quality standard - means longer service life for you.
Field of application:
- Can be swivelled up to 45° on one side
- Precision and series drilling
- Angled holes
- Use of materials e.g: Solid wood and glued laminated timber
Technical data:
- Swivelling range 0 - 45 °
- Nominal idling speed 340 - 1450 1/min
- Nominal power consumption 1200 W
- Universal motor 230 V / 50 Hz
- Drilling depth 475 mm
- Weight 17.7 kg
Scope of delivery:
- 1 Drill guide complete for drill bit diameter 10 - 28 mm
- 1 adapter for drill bit with MK2 holder
- 1 connection cable 10 m
- 1 Machine auger bit 18 x 820 mm (for ZB 600 E) Order no. 090215 No. 090215
