Description
Description:

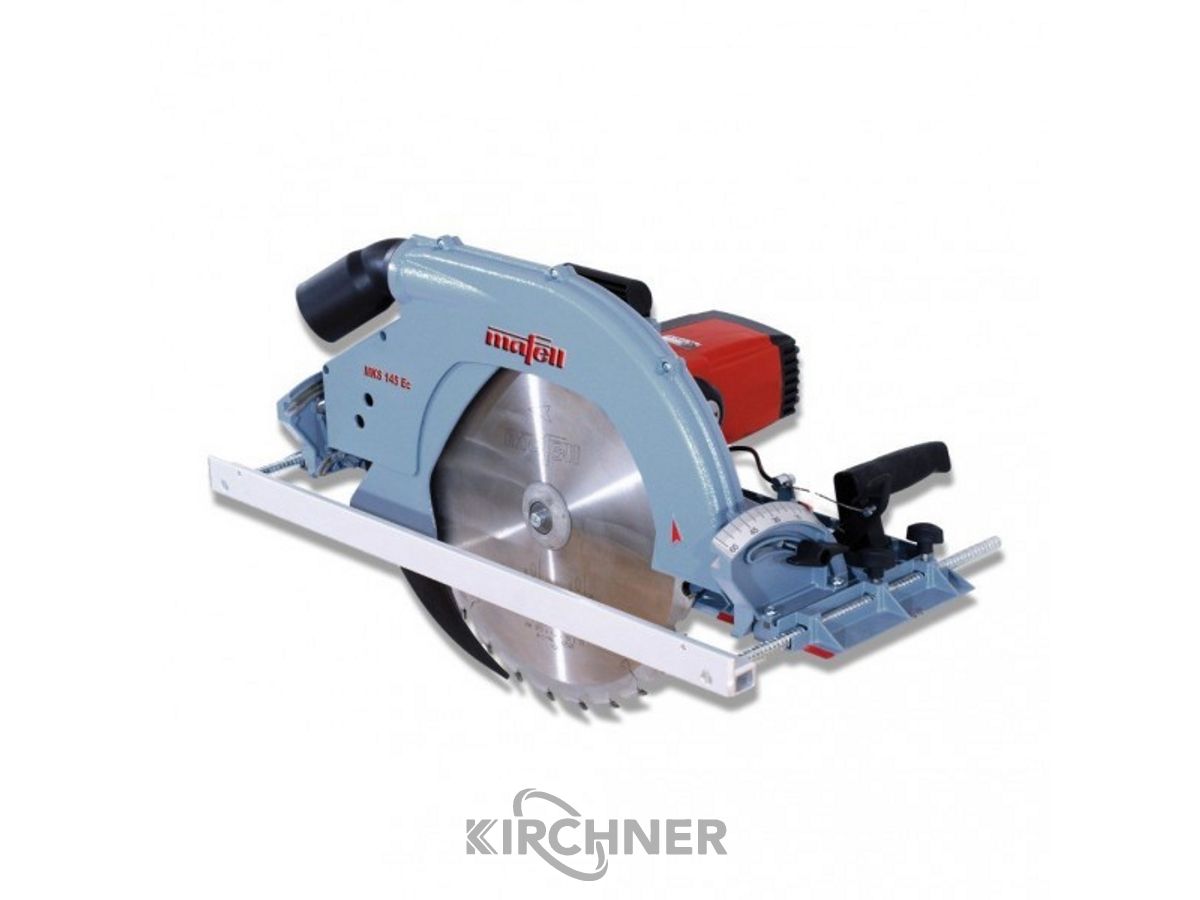

Hand-held circular carpentry saws with an exceptional weight/performance ratio. Only possible thanks to the use of state-of-the-art die-cast magnesium alloys. Can be swivelled up to 60°, making the circular hand saws a universal partner. The easy-to-read scale on the cutting depth adjustment dial makes work easier and saves tedious remeasuring. For optimum handling and better control, the circular carpentry saw is equipped with soft start, constant speed under load, speed reduction and overload protection. The easy-to-operate stop system of the MKS and the adjustable dust extraction nozzle make your work much easier:
With infinitely variable speed adjustment - for individual requirements and applications. Lower guard with remote control - for easy release of the saw blade, e.g. when starting at an acute angle. Constant rip indicator for 0° to 60° - thanks to exact pivot point on the underside of the base plate. With tool brake - for safety immediately after switching off the machine:
Cross and longitudinal cuts Diagonal cuts up to 60° General joinery work Use of materials e.g. solid timber Solid wood, glulam, insulation material
Technical data:
Cutting depth 65 - 145 mm Cutting depth at 45° 46 - 102.5 mm Cutting depth at 60° 32 - 72.5 mm Swivelling range 0 - 60° Nominal power consumption 2600 W Weight 16.3 kg Nominal idle speed 1900 - 2300 1/min Universal motor 230 V / 50 Hz Cutting speed 34.8 - 42.6 m/s
Scope of delivery :
1 Hexagon screwdriver 6 mm; order no. 093081 1 Rip fence 1 Saw blade HM 370 x 2.2/4.2 x 30 mm, Z 26, WZ, for universal use in wood (MKS 145 Ec); order no. 092526 1 Connecting cable compl. w.plug 10 m; order no. 087612
