Description:

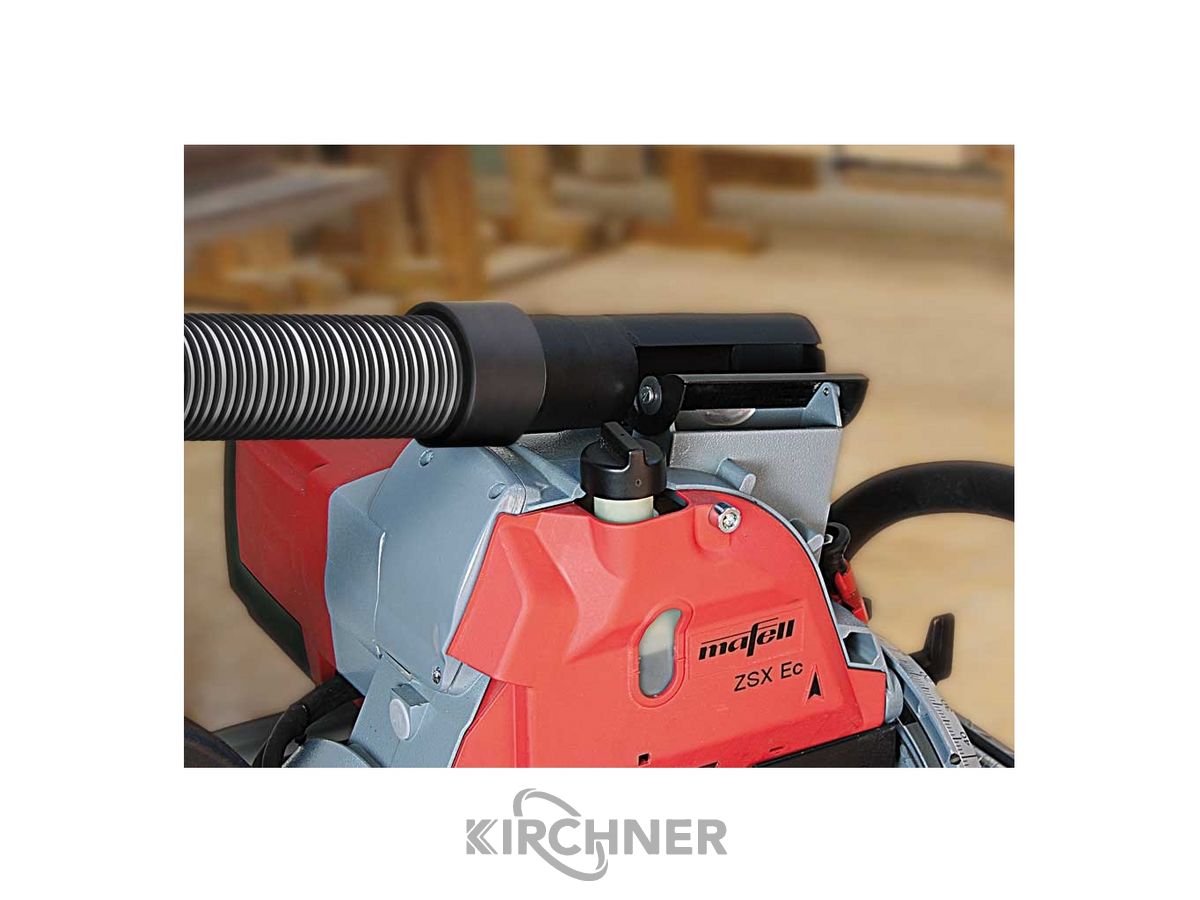

The new ZSX-TWIN Ec carpentry chainsaw is the practical solution for large timber components. With the development of the twin-motor chainsaw, MAFELL has created a new dimension with which previously almost impossible and time-consuming work can be realised effortlessly and accurately. With a rated power of 3000 watts, even one CUprex motor pushes the 230 V mains supply to its limits. Two CUprex motors at the same time would bring any simply fused lighting power supply to its knees. If the power is distributed across two circuits, the twin-motor ZSX gets the power it needs. The power grid offers us precisely this power, as the phases are fused separately from each other and the grid is therefore not overloaded:
Thanks to the use of luminous flux technology, the ZSX TWIN weighs just 20 kg with a rated output of 6,000 watts. This enables longitudinal cuts up to a cutting depth of 400 mm! Corner cut-outs are often necessary in timber construction and when cutting solid wood walls. Thanks to the vertical cutting tool, cut-outs and overlapping can be produced quickly and precisely. There is no need for time-consuming turning of the timber components. At the heart of the ZSX-TWIN Ec are the two 3,000 watt luminous flux motors. They are operated in parallel on two 230 V phases from the mains supply. The ZSX can be swivelled from -15° to 60° exactly according to the scale:
Longitudinal and cross sections Cut-outs Use of materials e.g. solid wood, glulam: Solid wood, glued laminated timber
Technical data:
Cutting depth 400 mm Cutting depth at 15° 386 mm Cutting depth at 30° 346 mm Cutting depth at 45° 282 mm Cutting depth at 60° 199 mm Can be swivelled on both sides -15° - +60° Cutting width 6.8 mm Nominal idle speed 21000 1/min. Rated power consumption 2 x 3000 W Weight 20.0 kg
Scope of delivery:

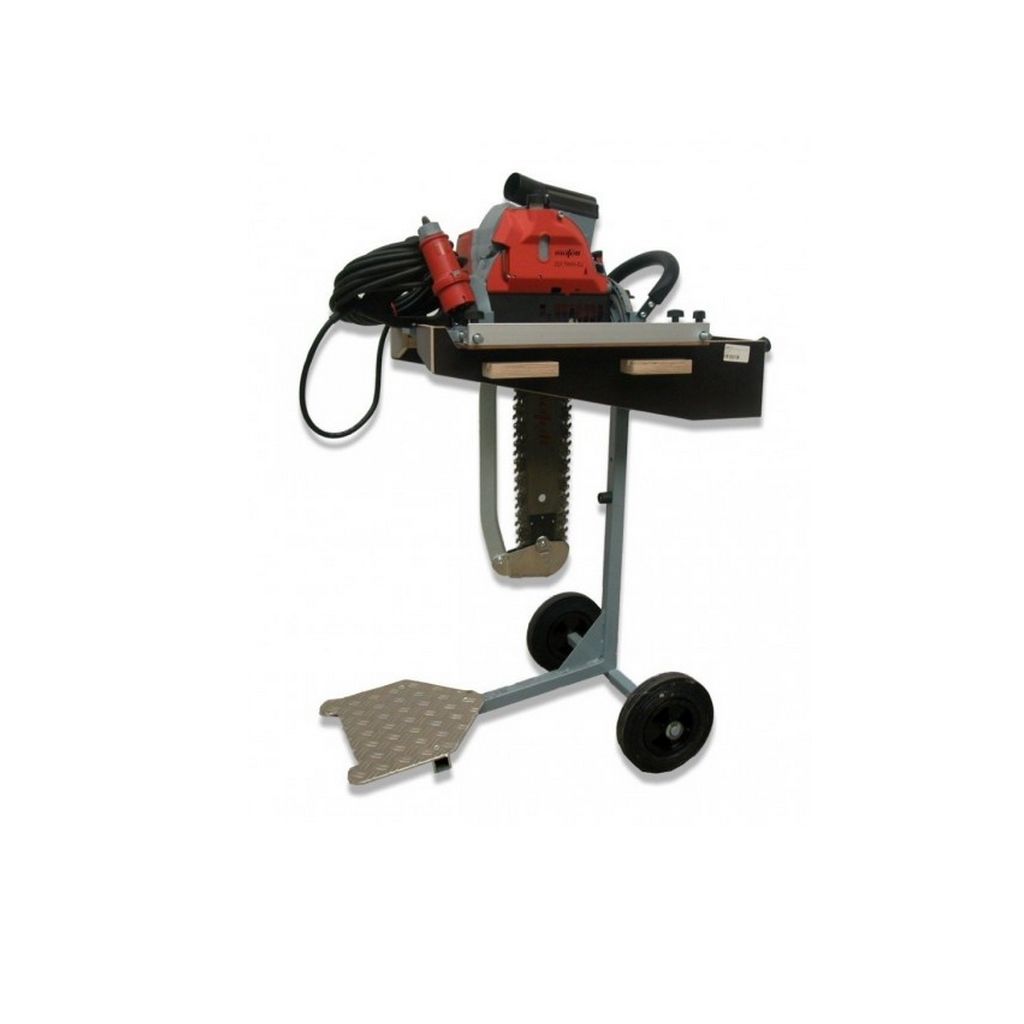

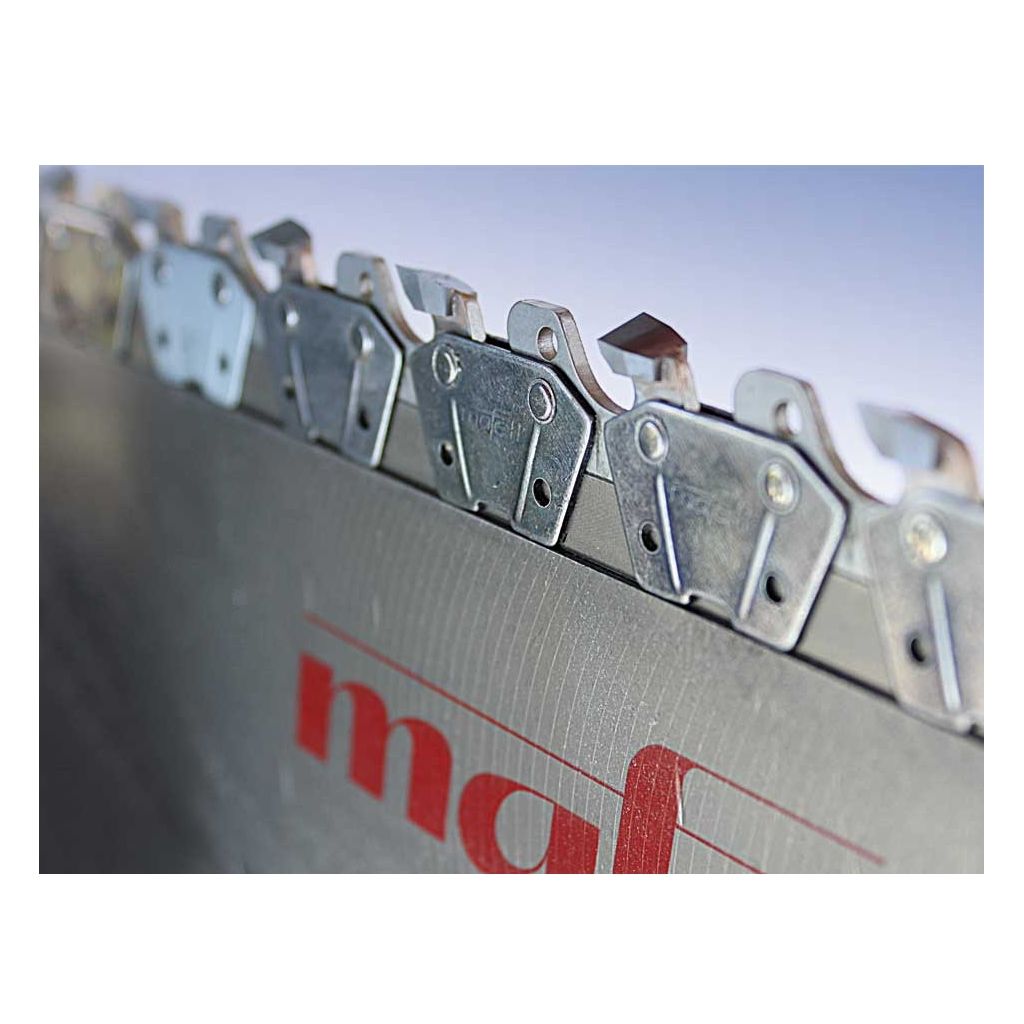

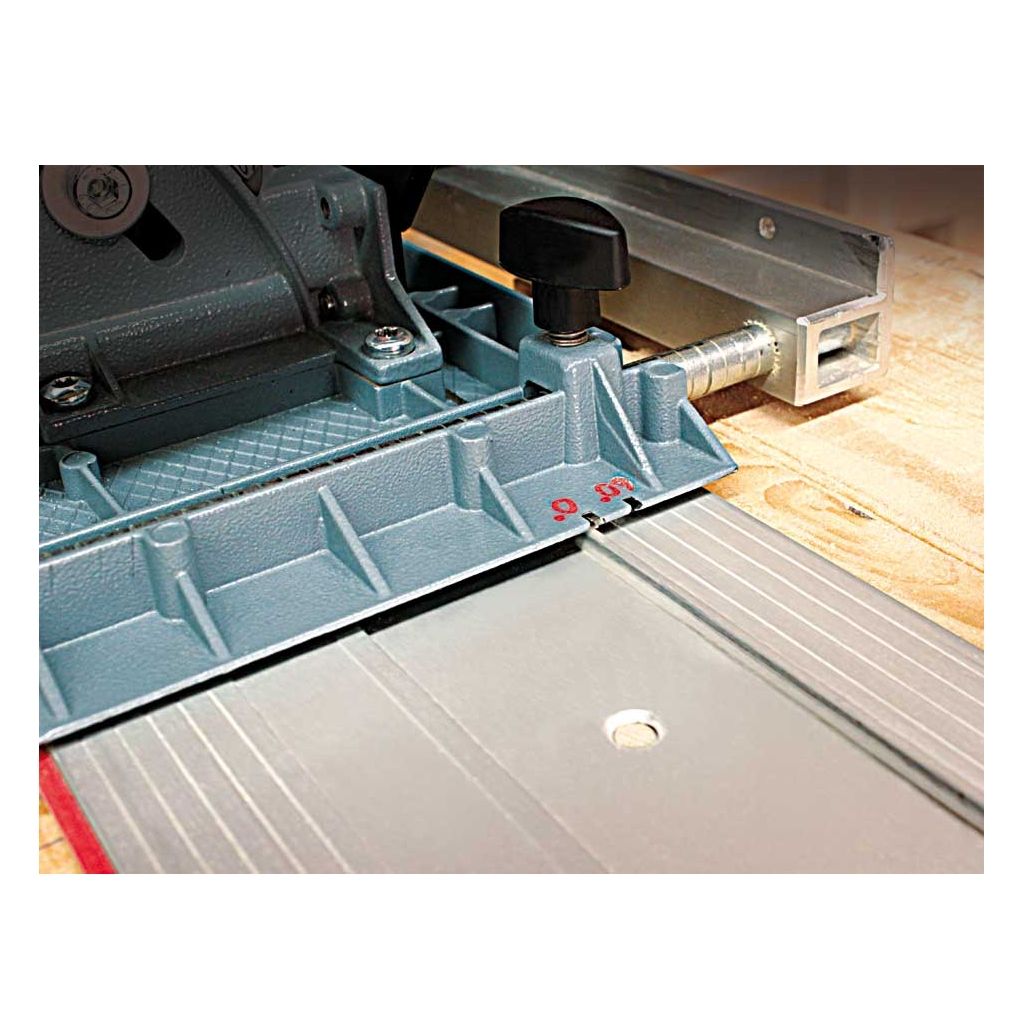

1 chain saw ZSX TWIN Ec 1 longitudinal cutting chain TWIN HM 400 No.: 006977 1 fine cutting chain HM 400 No.: 006972 1 transport trolley ZSX-Twin Ec No.: 205940 1 glider for guide rail insert No.: 205934 1 rip fence No.: 204591 1 combination screwdriver 6 mm No.: 093272 1 open-end spanner 13 mm No.: 093008 1 connecting cable 10 m complete with CEE plug 400 V No.: 087906
