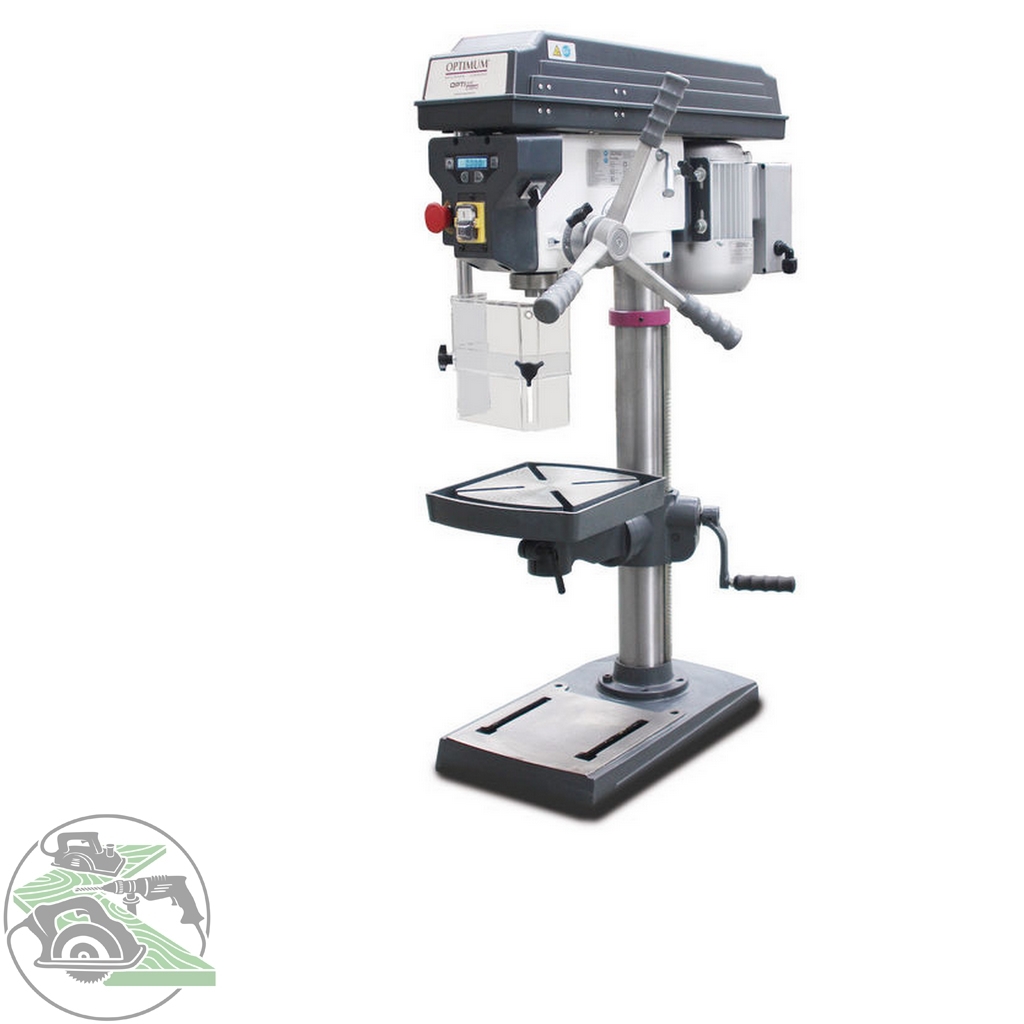

Description
DESCRIPTION
Industrial motor
User-friendly safety switch to IP 54
Digital drilling depth and speed display integrated in the housing
Separate emergency stop switch
Precision spindle bore
Safety electrics in 24 V DC voltage
Guaranteed concentricity of less than 0.02 mm in the
Drill sleeve measured
Drill spindle with precision ball bearings
High-quality quick-action drill chuck
Drilling depth stop
Precisely machined, stable drilling table with diagonally running
T-slots and circumferential cooling water channel
V-belt cover with safety switch
One-piece die-cast aluminium quill lever
with soft grip handles
Large, height-adjustable protective disc with
Safety switch
Heavy-duty design of the entire machine
From D 23 Pro
GATES quality belts
From D 23 Pro / 400 V
Clockwise/anticlockwise rotation
D 33Pro
Solid, large base plate with T-slots, heavily ribbed on the back
TECHNICAL DATA
Dimensions and weights
Length (product) approx. 615 mm
Height (product) approx. 1015 mm
Column diameter 73 mm
Weight (net) approx. 63.5 kg
Width/depth (product) approx. 330 mm
Drilling performance
Drilling capacity steel (S235JR) 25 mm
Continuous drilling capacity steel (S235JR) 20 mm
Drill table
Drilling table Work surface length 280 mm
Drill table rotation 360°
Drilling table Work surface width 245 mm
Drill table inclination 45°
Drilling table T-slots size 12 mm
Distance spindle - drilling table max. 425 mm
Speed range
Speed range 200 - 2440 min¯¹
Number of speed ranges 12
Electrical data
Drive motor power 0.75 kW
Current type ~
Supply voltage 400 V
Mains frequency 50 Hz
Phase(s) 3 Ph
Machine foot
Distance spindle - machine base max. 618 mm
Machine foot T-slots size 16 mm
Machine foot Work surface length 240 mm
Machine foot T-slots Quantity 2
Machine base Work surface width 250 mm
Machine foot T-slot distance 170 mm
Spindle
Quill stroke 80 mm
Projection 180 mm
Spindle holder MK 2
SCOPE OF DELIVERY
Quick-action drill chuck 1 - 16 mm
Morse taper MK 2/B16
T-slot nuts
Machine vice BMP
