Description
NEW

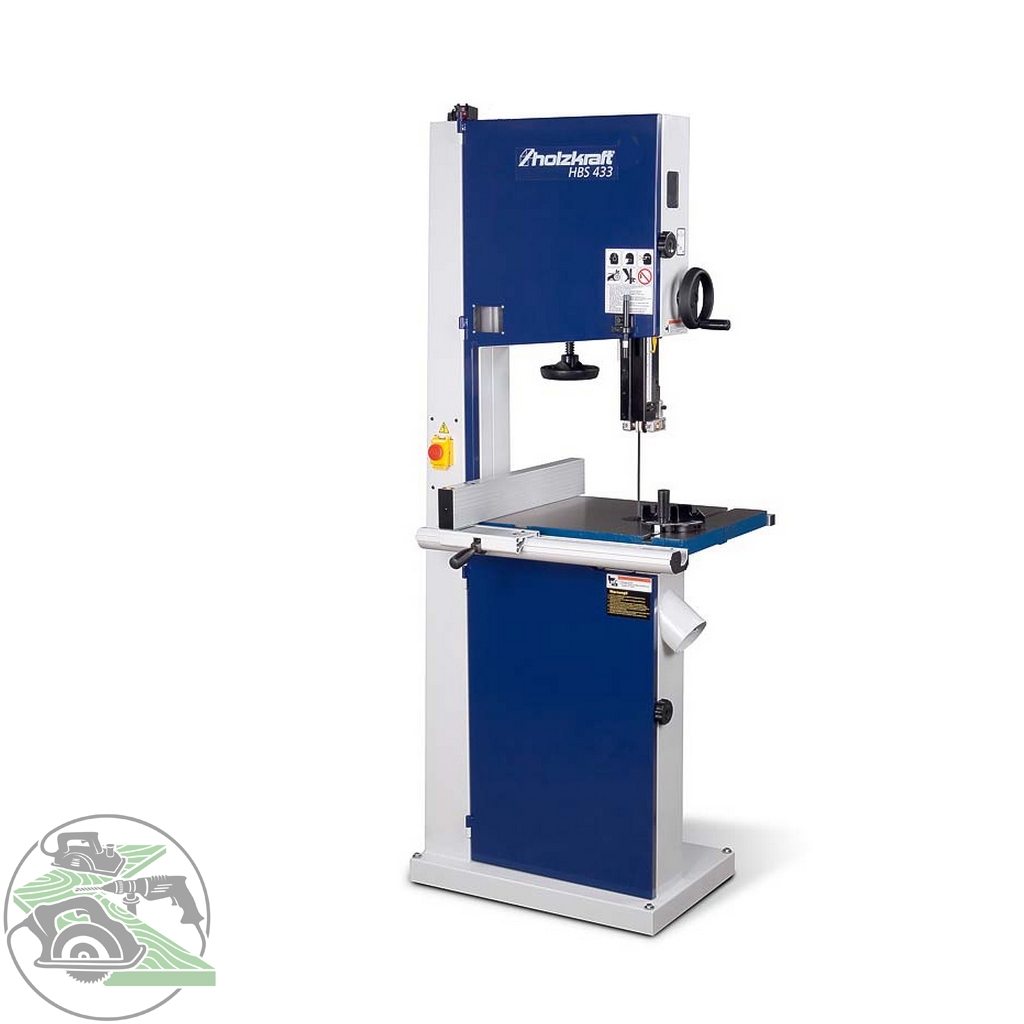

Precision wood band saws for the
ambitious craftsmen
Particularly smooth and precise running thanks to a
torsion-free machine housing and a
Solid base made from sheet steel
Grey cast iron saw table with precisely ground
and polished surface
Convenient laser device for cutting line
marking
Quick saw blade clamping via eccentric lever
on the back of the machine
With two speeds as standard
Precise 3-roller band saw blade guides,
Top and bottom as standard from HBS 351
Quick cutting height adjustment via
Rotary knob and gear rack with millimetre scale
Smooth-running aluminium parallel stop with
Eccentric quick clamping and magnifying glass
Mitre fence as standard,
Adjustable by 60° on both sides
Safety switch for automatic
Switch-off when the door is opened
Equipment details
Precision guidance
HBS 351 with 3-roller band saw blade guide at the top
and below
With guide rollers
Easily adjustable
Practically maintenance-free
Quick-release system
Eccentric quick-release lever
The basic voltage setting is
not changed.
With integrated saw blade tension indicator

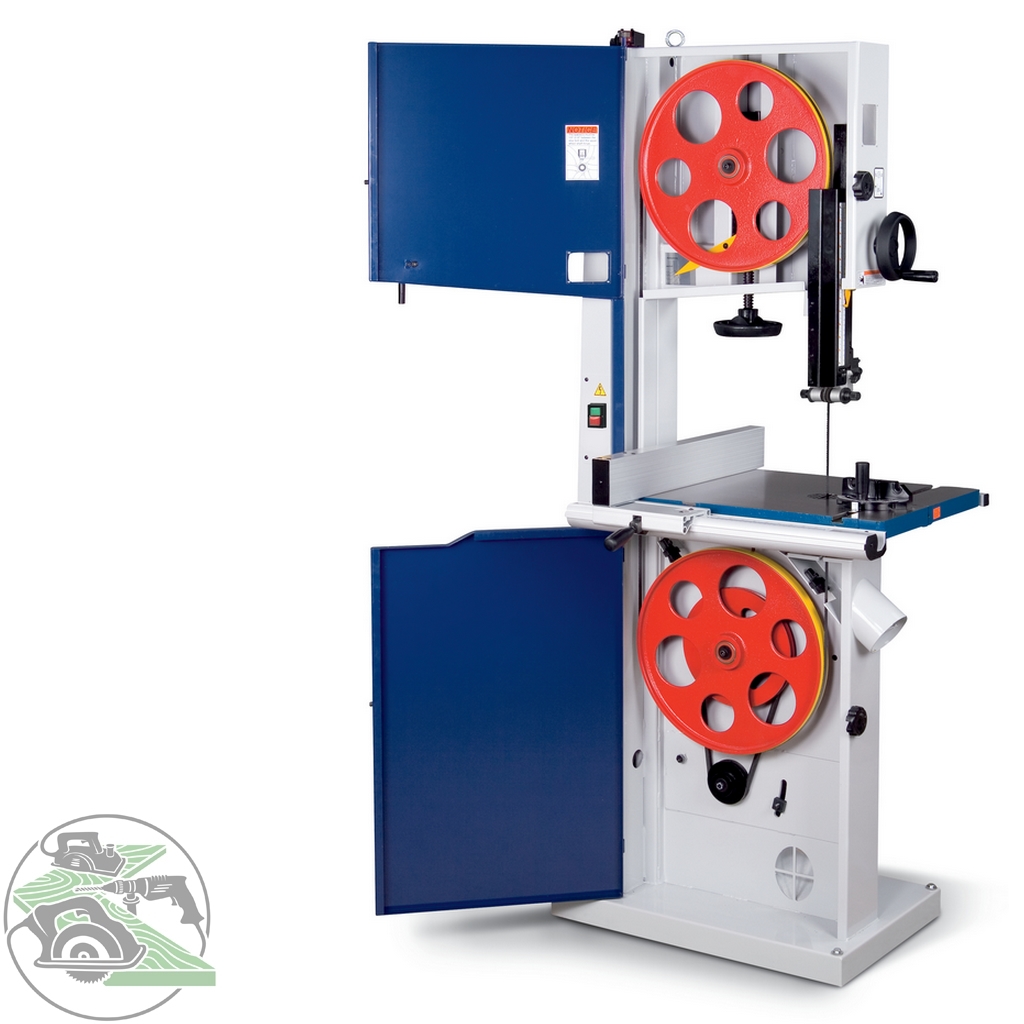

Flywheels
Flywheels with special coating (HBS 351)
The basic voltage setting is set via the
The adjustment is made using the rotary knob at the top.
Saw table
The grey cast iron saw table is mounted on a W
ipp holder is attached.
The saw table inclination can be set from -10° to +45°.
can be adjusted effortlessly.

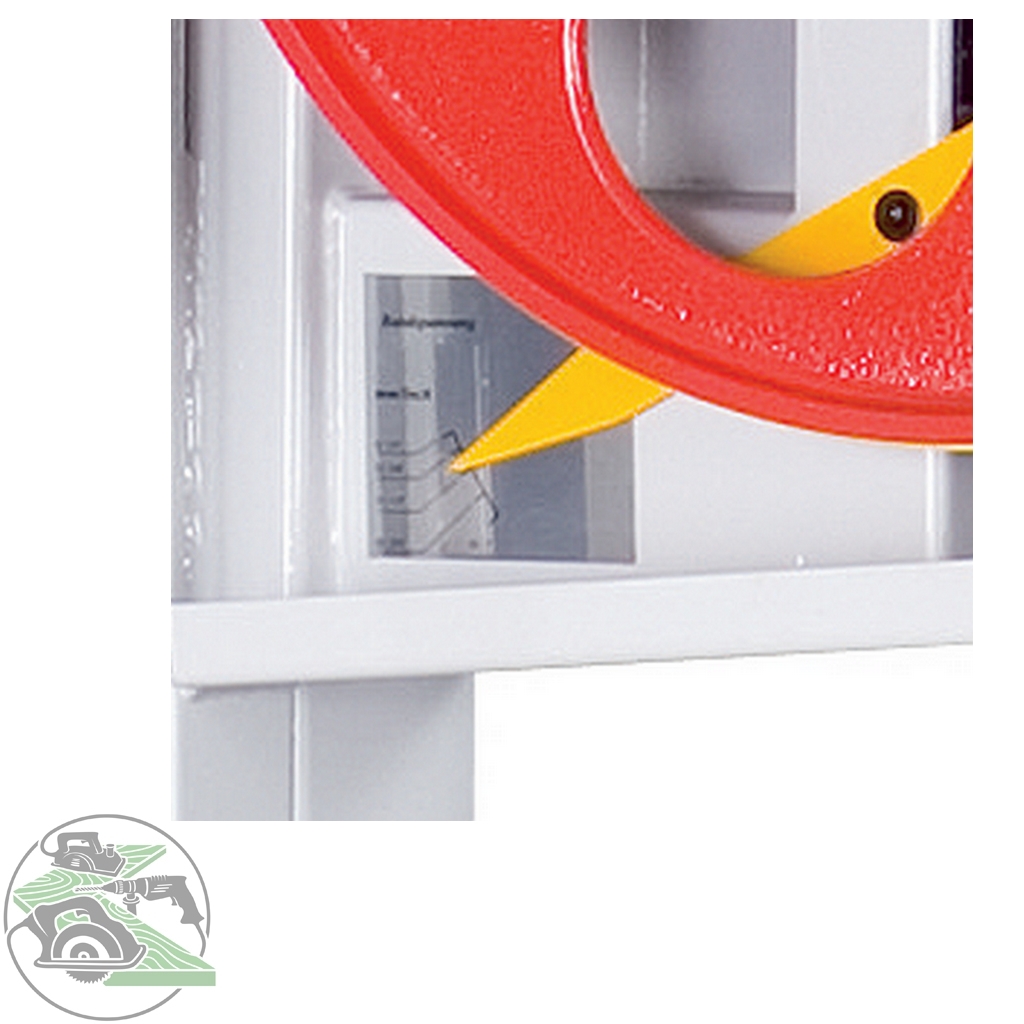

Display of the saw blade tension
Display of the saw blade tension for
Various band saw blade widths
Can be read from the outside by means of an in the door
Integrated viewing window

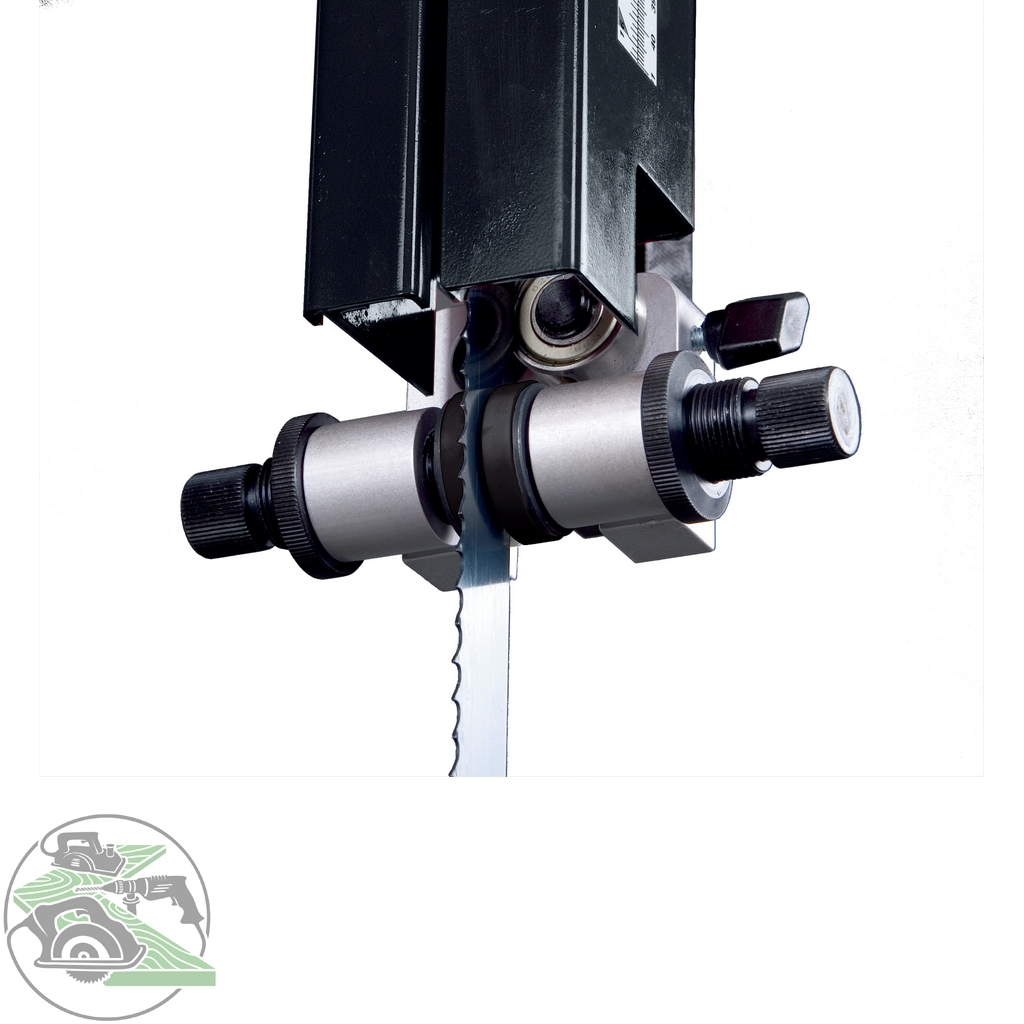

Precision guidance
From HBS 431 with precision band saw blade guide
with guide rollers
Top and bottom with fine adjustment

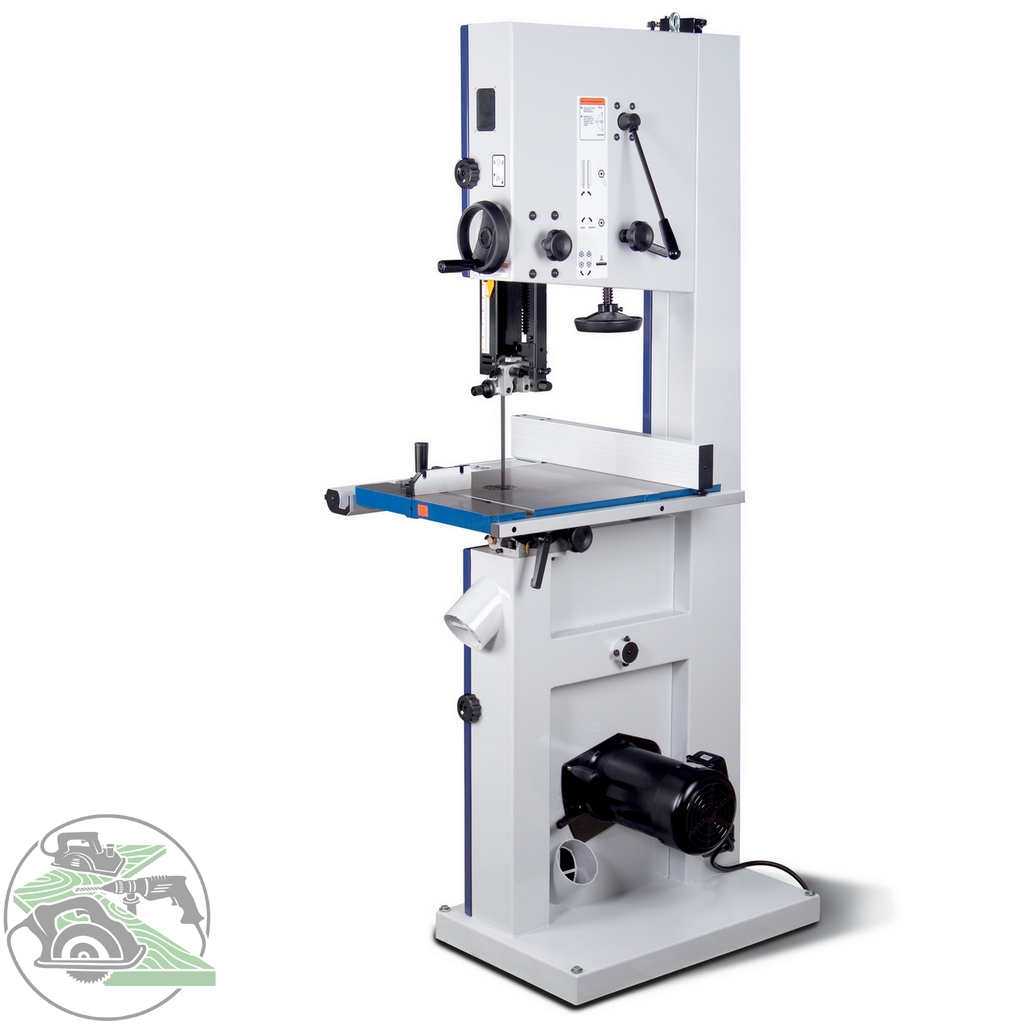

Two speeds via V-belt
Adjustment selectable
Balanced flywheels made of grey cast iron
ensure smooth running
Aluminium parallel stop
With quick eccentric clamping, particularly easy and precise adjustment
Easy-to-read millimetre scale and integrated
Magnifying glass
Saw table double rocker support
The table can be tilted from -10° to +45° via
A precise and smooth-running rack and pinion guide
with knob
For safety reasons, from 20°
a holding device/stop must be fitted,
to prevent the wood from slipping!
Technical data:
Dimensions and weights
Length (product) approx. 820 mm Height (product) approx. 1852 mm
Width/depth (product) approx. 730 mm
Weight (net) approx. 130 kg
Suction connection
Suction nozzle diameter 2 x 120 mm
Work table(s)
Worktable length 610 mm
Work table inclination -10 - 45°
Worktable width 431 mm
Explanation Work table inclination
For safety reasons, a holding device/stop must be fitted from 20° to prevent the wood from slipping!
Worktable height 950 mm
Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Phase(s) 1Ph
Output power 1.5 kW
Current type AC
Cutting areas
Cutting height max. 90° 270 mm
Cutting width max. without stop 410 mm
Cutting width max. with stop 370 mm
Band saw blade
Saw blade speed(s) 900 / 450 m/min
Saw band guide 3-roller
Precision guidance top and bottom
Saw blade length 3345 mm
Scope of delivery
Angle stop ±60°
Laser device for cutting line marking
1 x band saw blade wood 3345 x 6 x 0.65 mm
