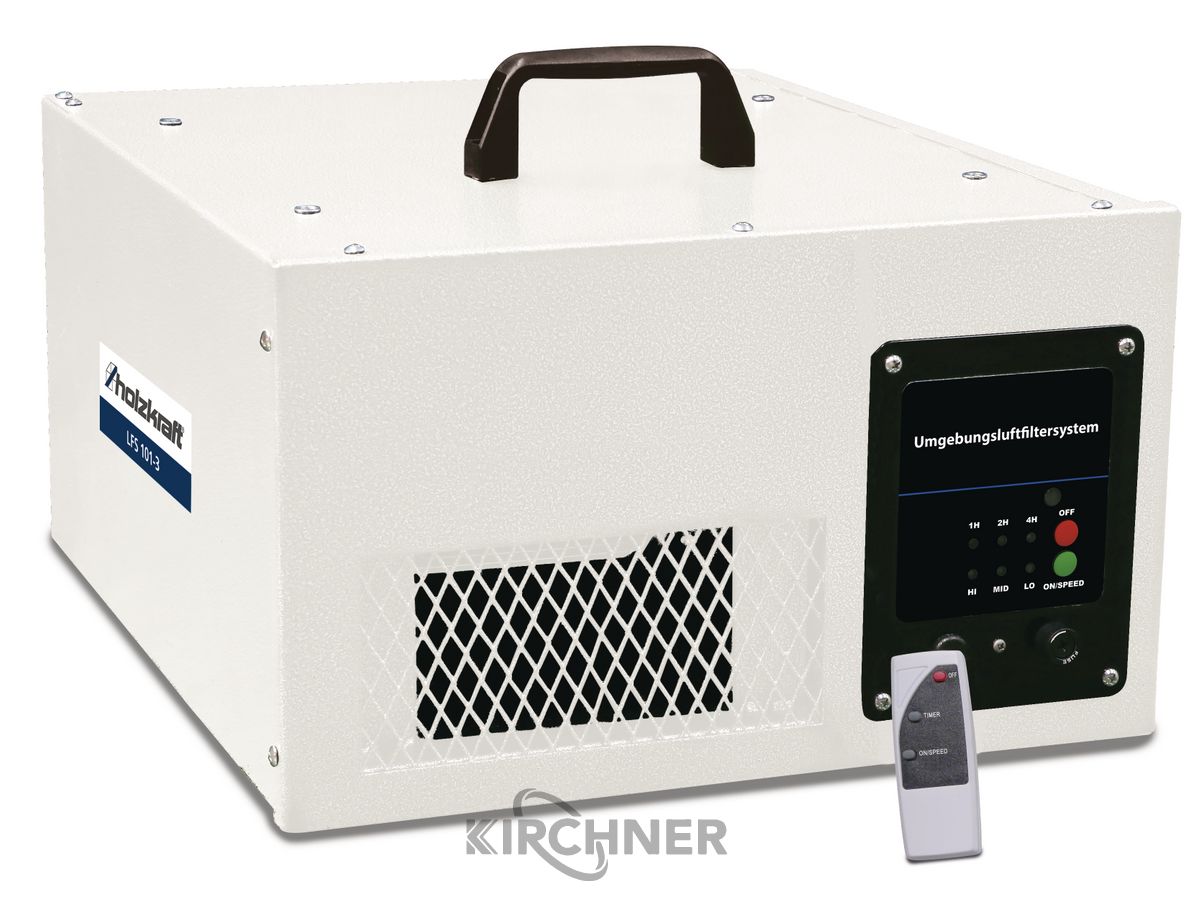

Ambient air filter system

DESCRIPTION

Removes 91% of all fine dust particles > 1 µm
Adjustable in three stages
Time recording for automatic switch-off
For cleaning the air in workshops, also suitable for showrooms and living spaces
Highly efficient filter process removes 99% of all particles > 5 µm and 91% of all fine dust particles > 1 µm
Designed to purify the air in workshops, also for exhibition spaces.
and living spaces
Ideal supplement to a stationary extraction system without fine filter
In larger production areas, the use of several
devices directly on the machine or distributed in the room is recommended
Adjustable in three stages
Time recording for automatic switch-off
Convenient operation via remote control

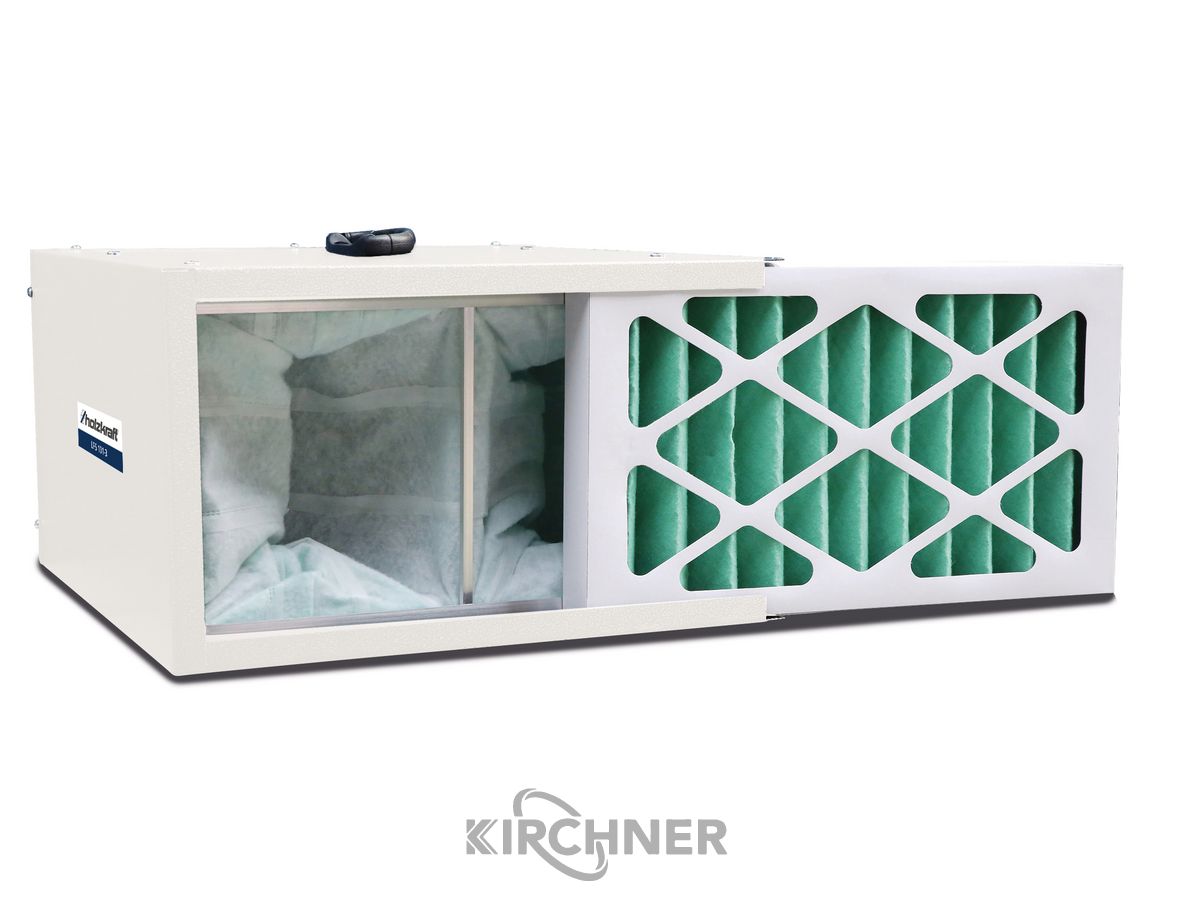

Pre-filter easy to remove and clean
The following are examples of how often the air in certain rooms
per hour should be exchanged:
Assembly halls: 4 - 8 times
Classroom: 5 - 7 times
Workplace: 8 - 10 times
Laboratories: 8 - 15 times
Private kitchens: 15 - 20 times
Colour spray rooms: 25 - 50 times

TECHNICAL DATA
General information
Volume flow max. level Low 595 m³/h

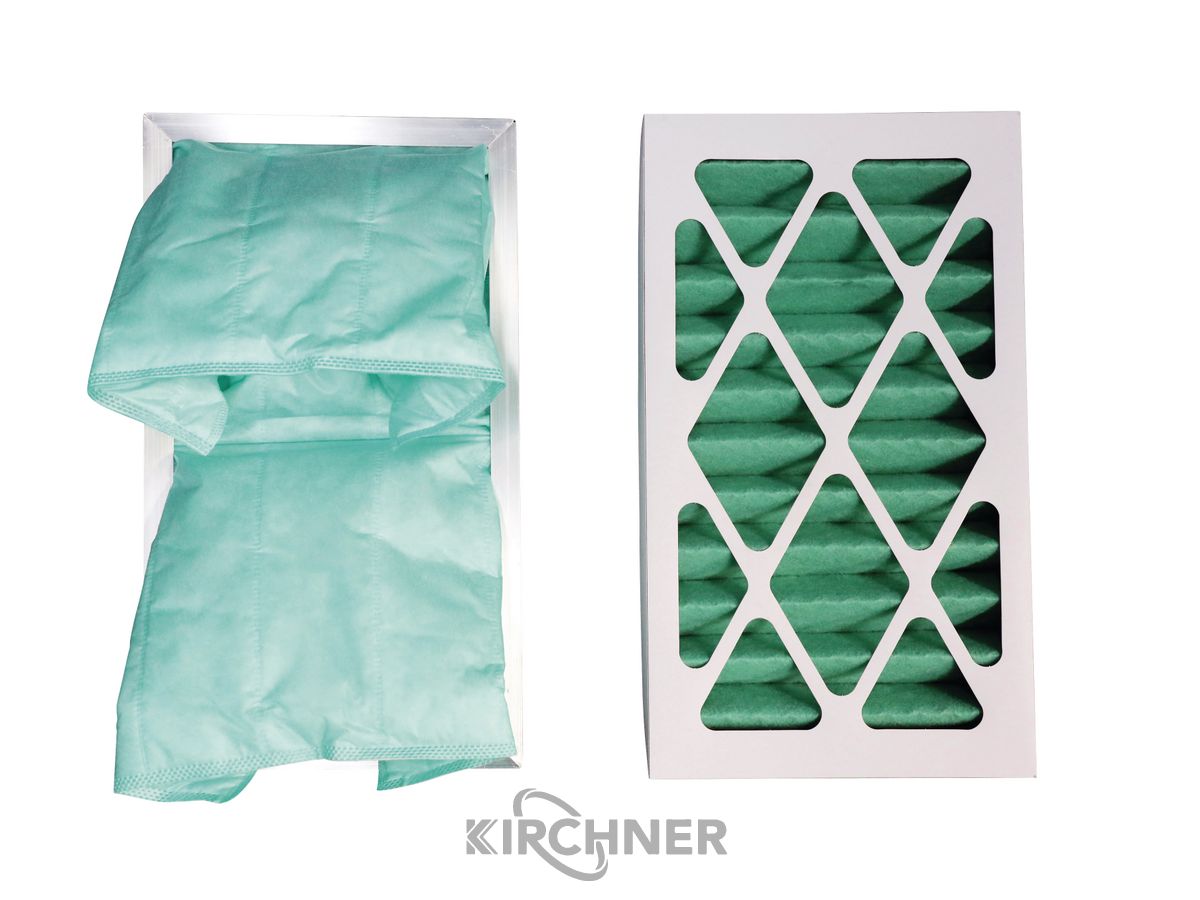

Filter category Plate filter G4
Volume flow max. level Medium 680m³/h
Filter category Internal filter F6
Volume flow max. level high 765m³/h

Dimensions and weights
Length (product) approx. 505 mm
Height (product) approx. 260 mm
Width/depth (product) approx. 430 mm
Weight (net) approx. 15 kg

Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Phase(s) 1 Ph
Input power 100 W
Current type AC
Output power 50 W

Noise emission
Sound pressure level max. 64 dB(A)

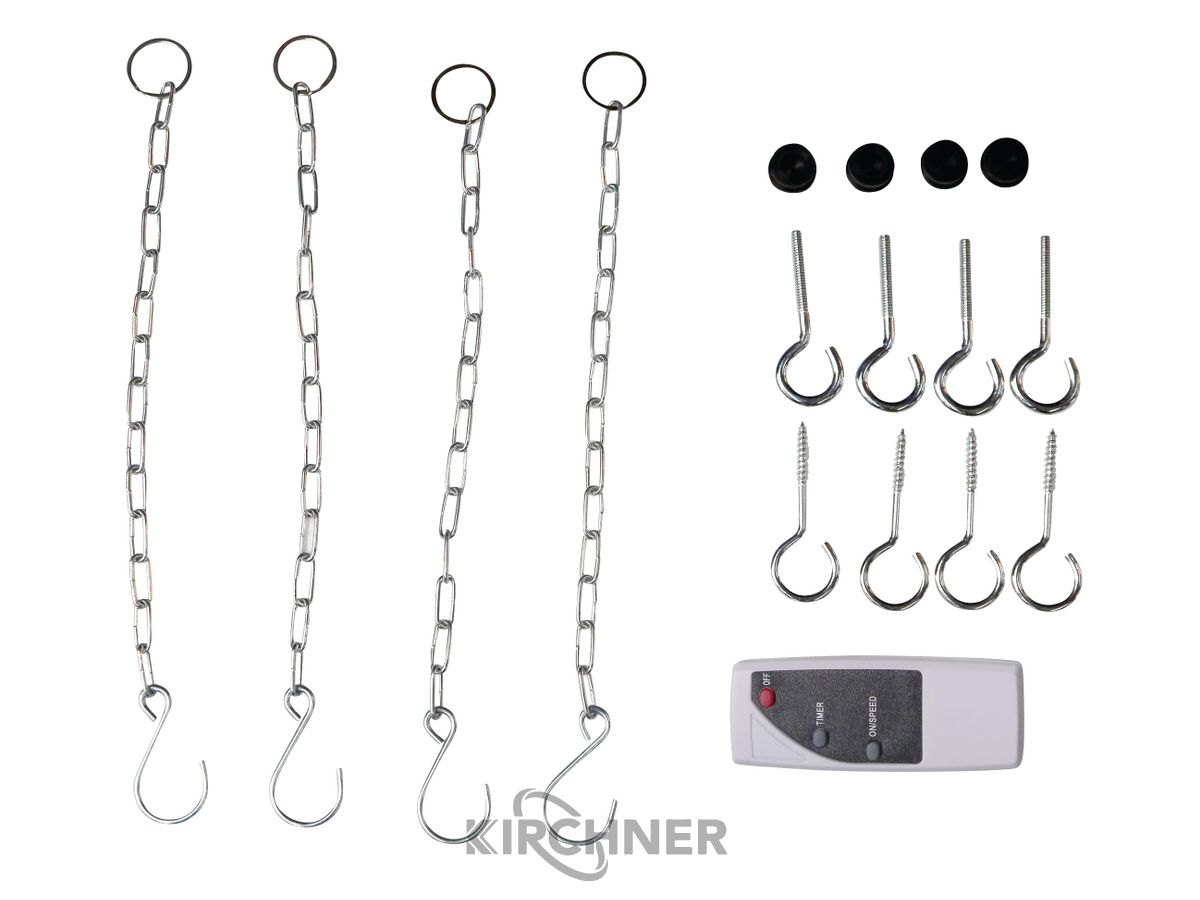

SCOPE OF DELIVERY
Remote control
Transport handle
Four eyelets for ceiling mounting
Four ceiling hooks
Four chains with hooks for ceiling suspension
Four rubber feet
